Sunroof / Moonroof
>>
System Diagram
System Diagram
Sunroof Connector End Views

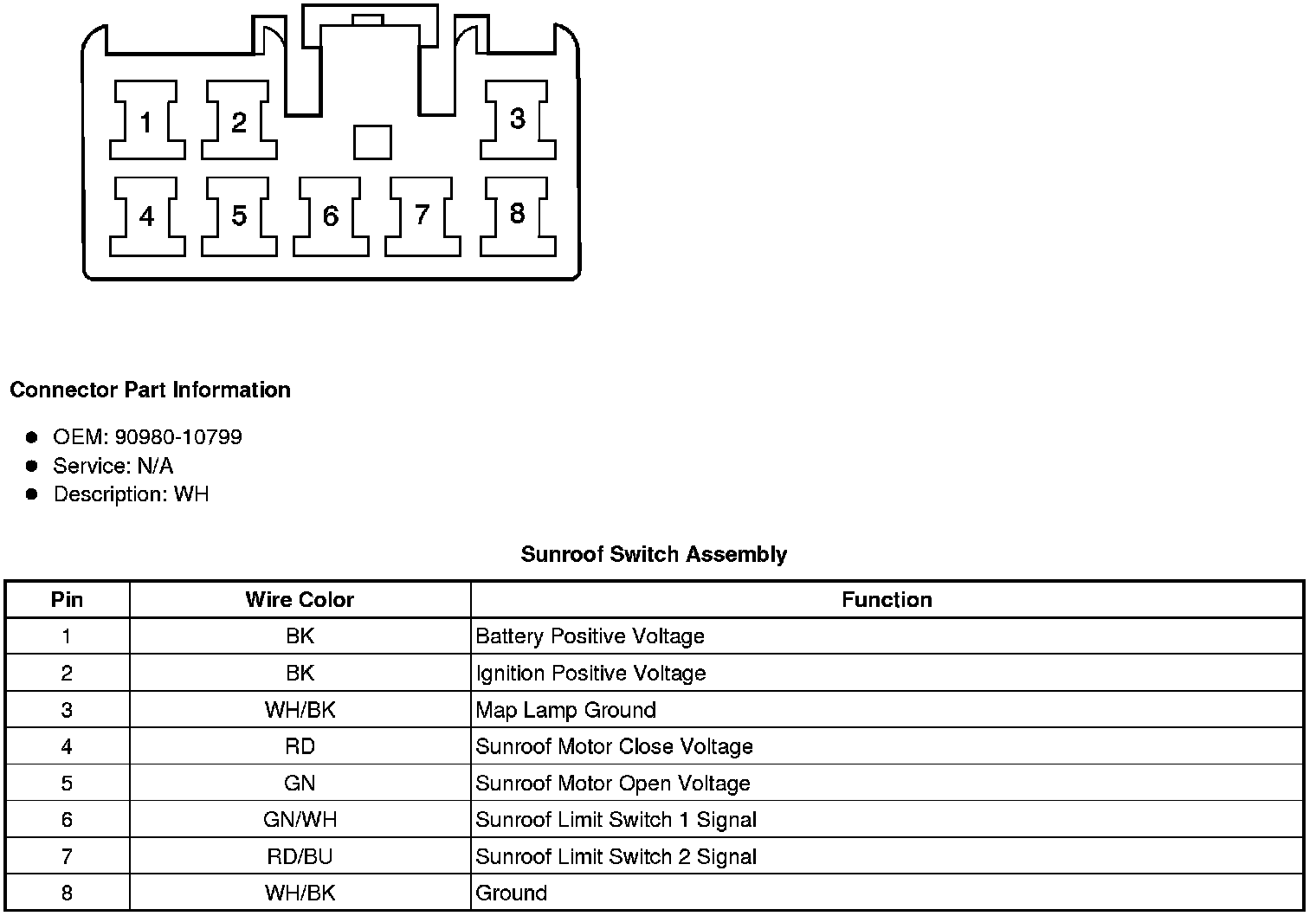

Sunroof Switch Assembly
Sunroof Motor
