System Diagram

Wiper/Washer Connector End Views

Rear Hatch Glass Connector

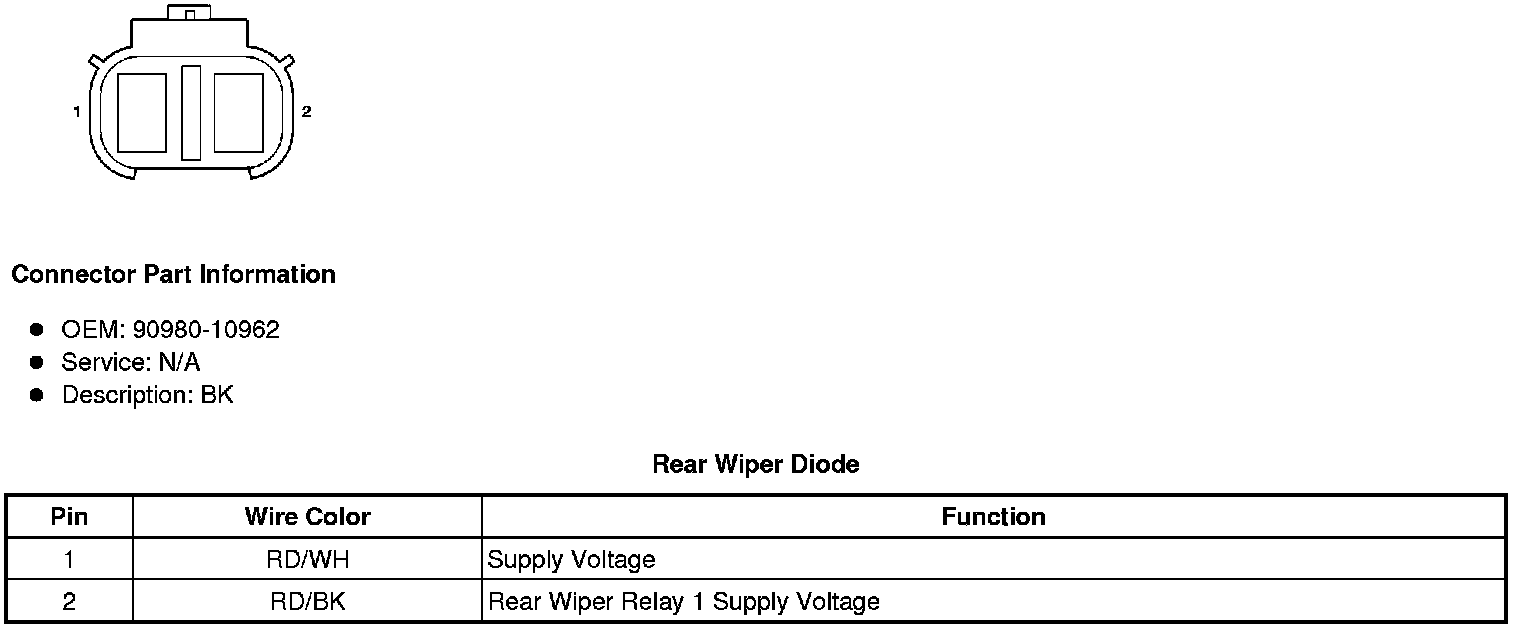

Rear Wiper Diode

Rear Wiper Relay 1

Rear Wiper Relay 2

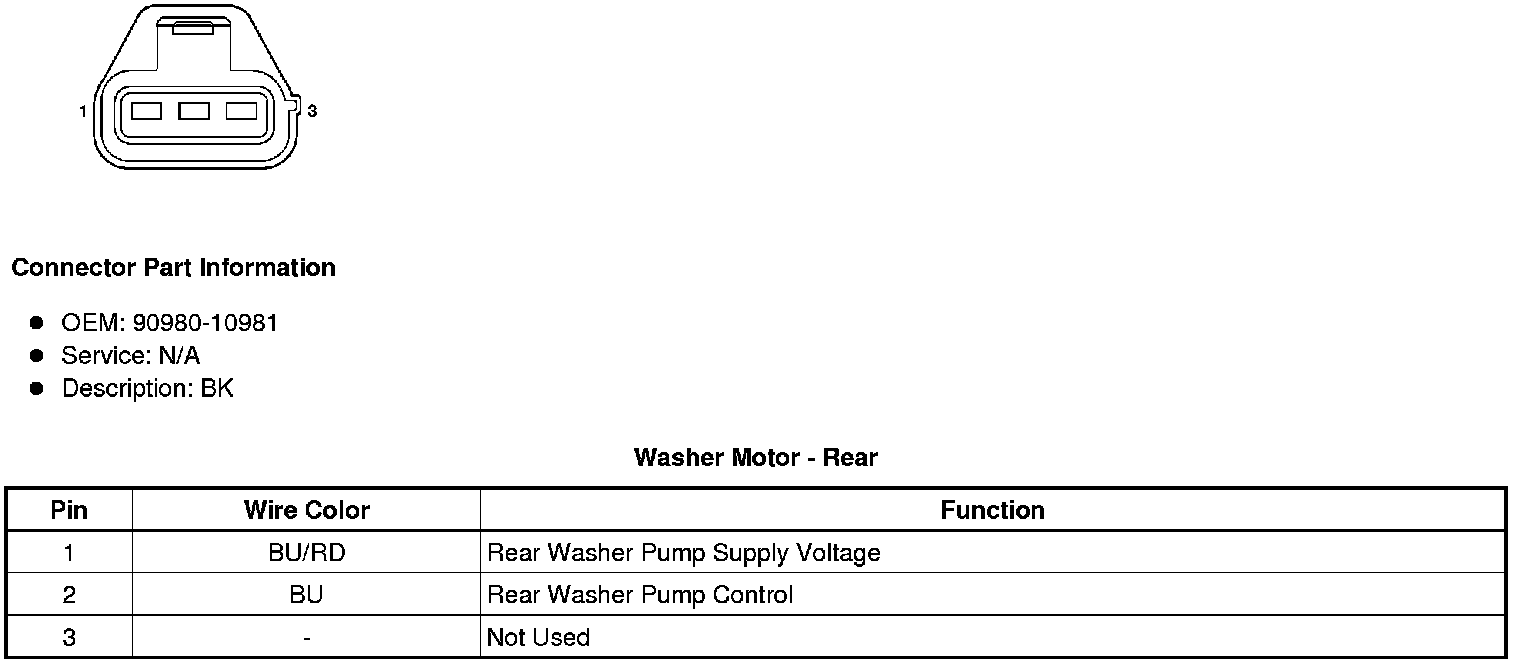

Washer Motor - Rear

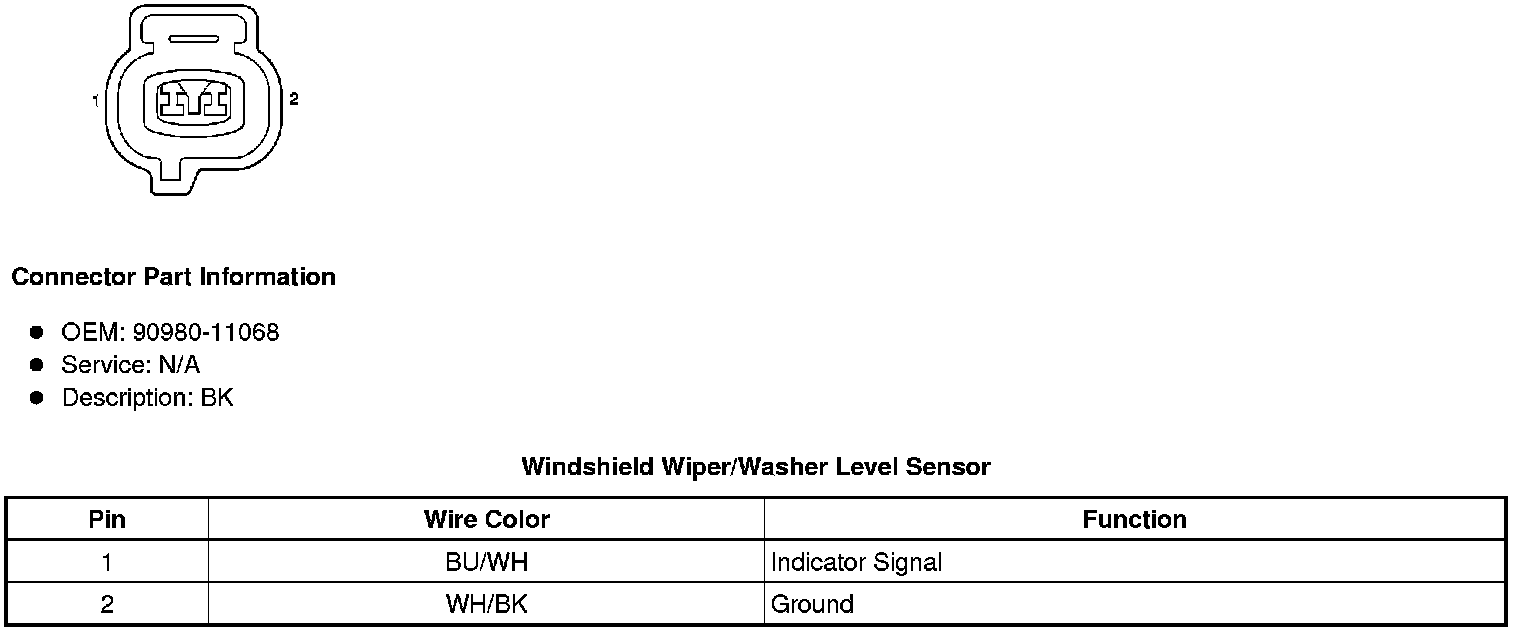

Windshield Wiper/Washer Level Sensor

Windshield Wiper/Washer Switch

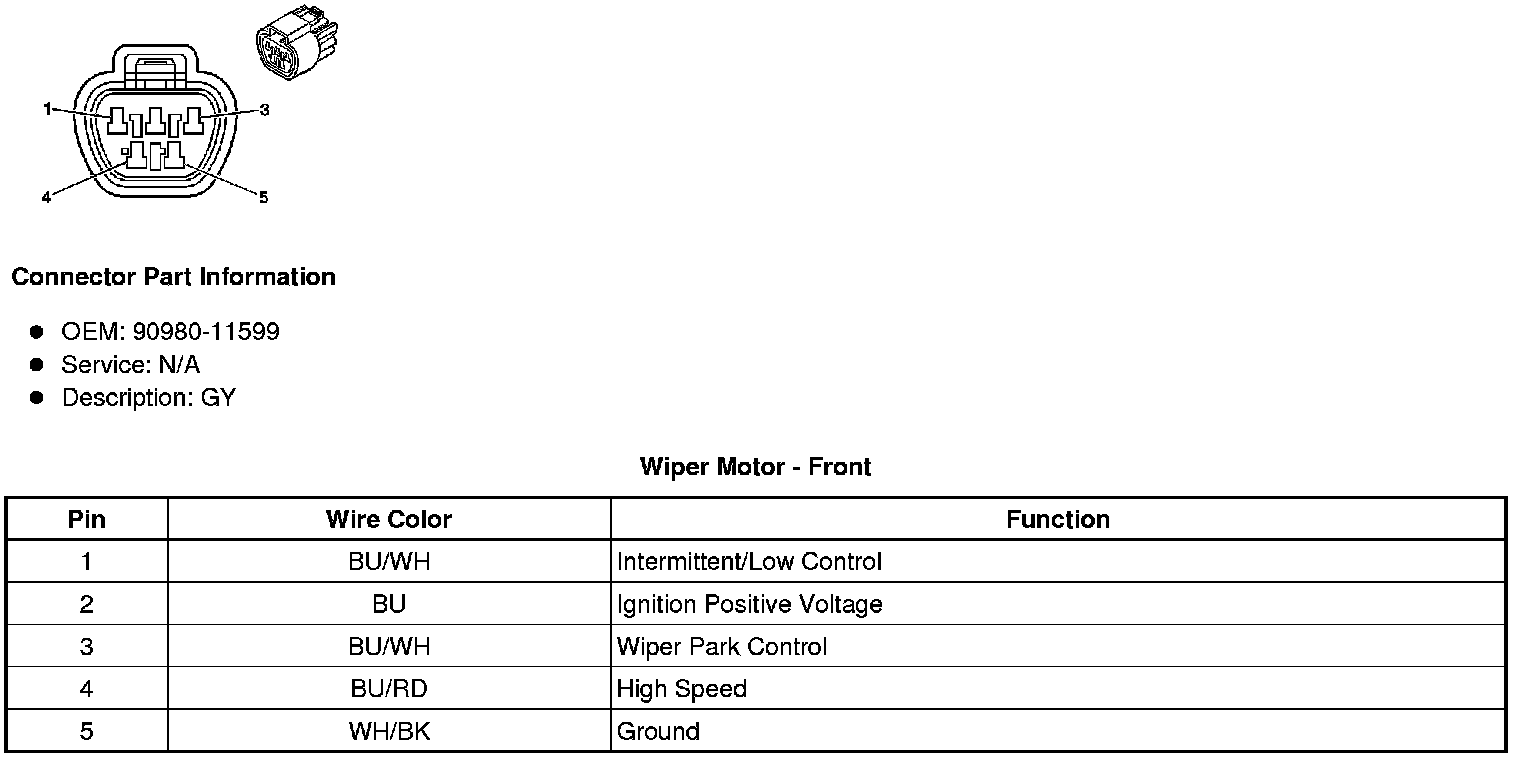

Wiper Motor - Front
