SIR Schematics



SIR Schematics

Inflatable Restraint Sensing and Diagnostic Module (SDM) Power and Ground





Inflatable Restraint Steering Wheel Module, I/P Module, Front Discriminating Sensors, Seat Belt Pretensioners





Inflatable Restraint Side Impact Modules, Roof Rail Modules, Side Impact Sensors

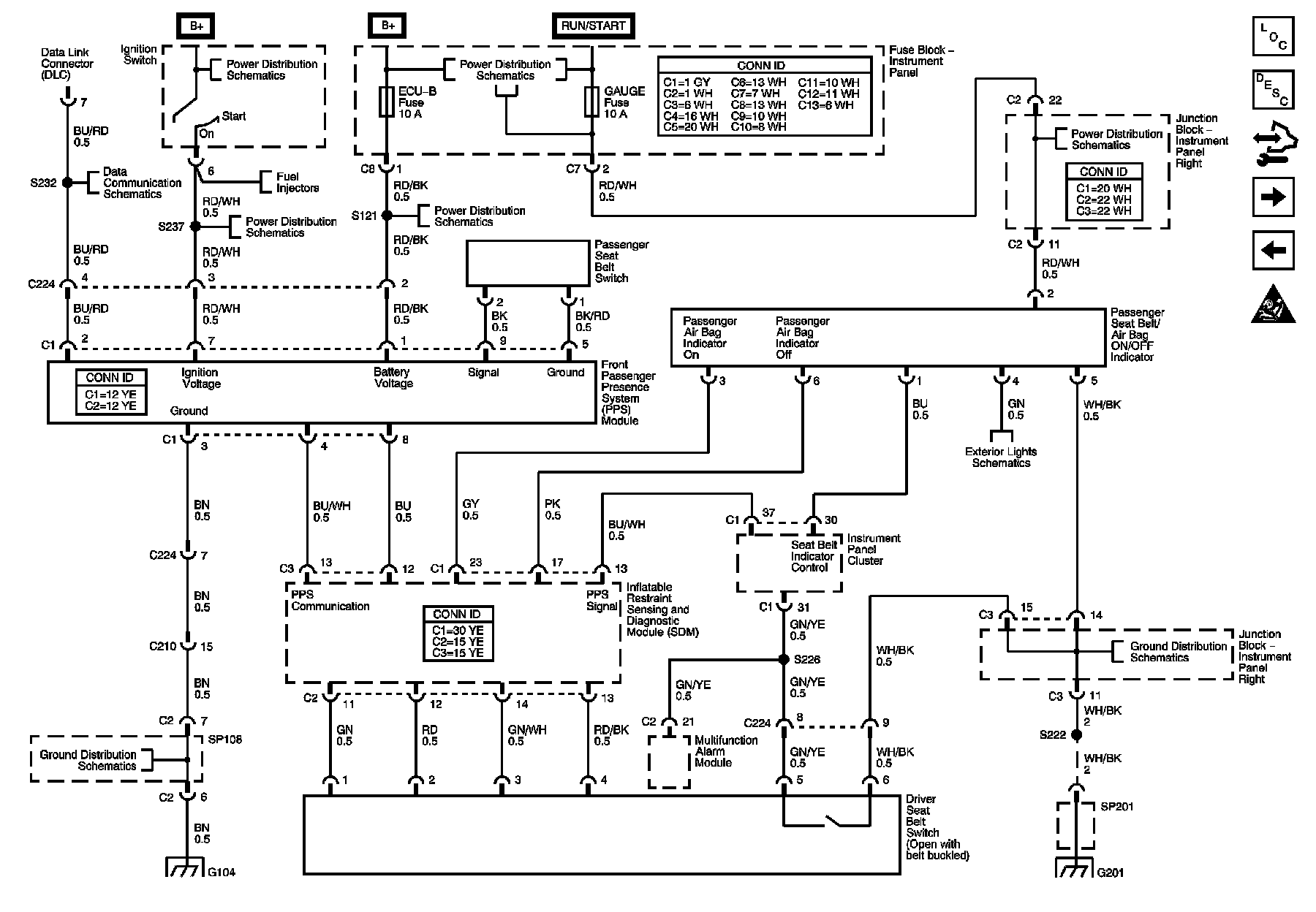

Front Passenger Presence System (PPS) Module, Seat Belt Switches, Passenger Seat Belt Warning Lamp





Passenger Presence System Sensors
