Antilock Brakes / Traction Control Systems
Antilock Brake System Schematics

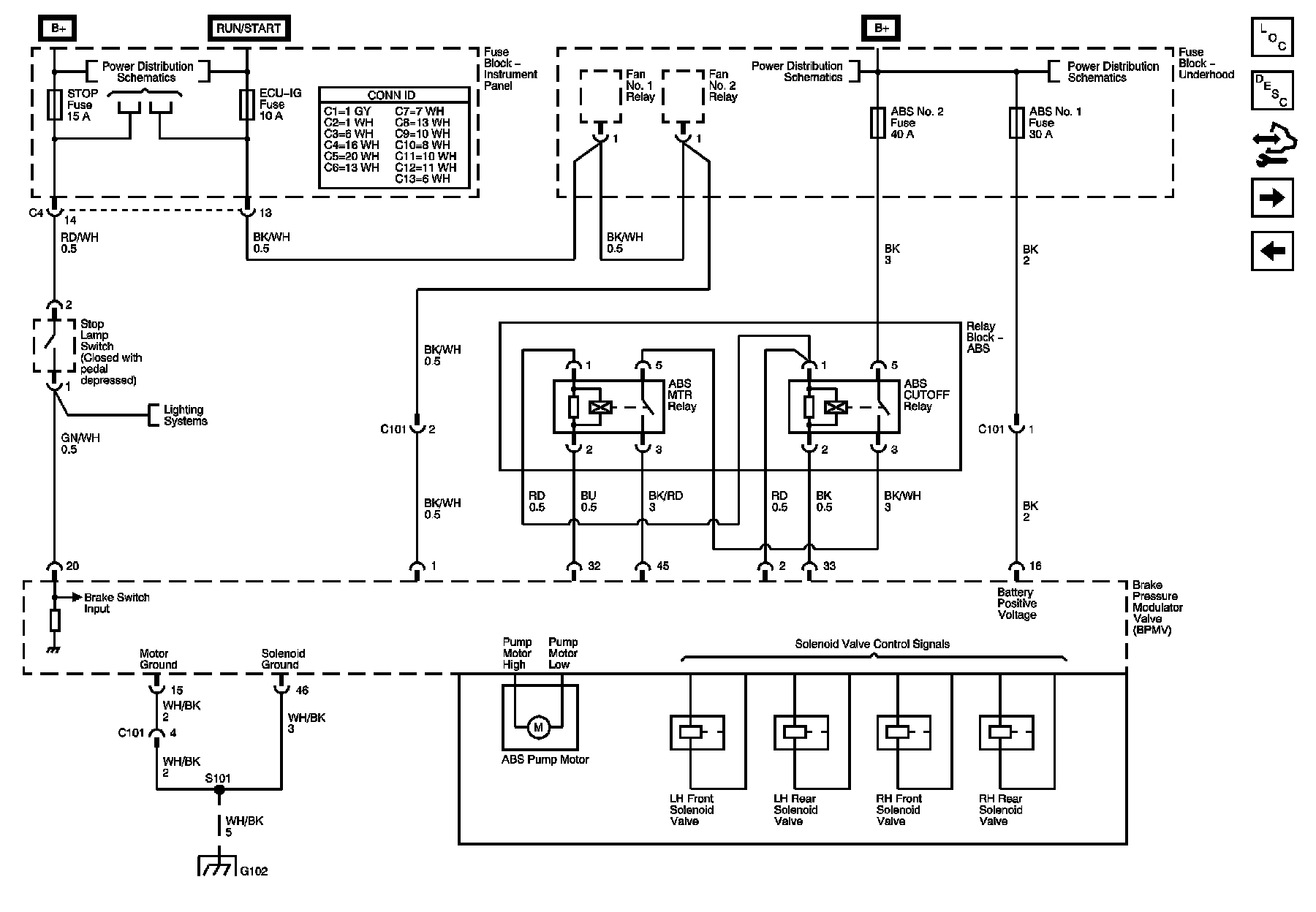

Brake Pressure Modulator Valve (BPMV) Power and Ground (-JL4)
Brake Pressure Modulator Valve (BPMV) Power and Ground (JL4)

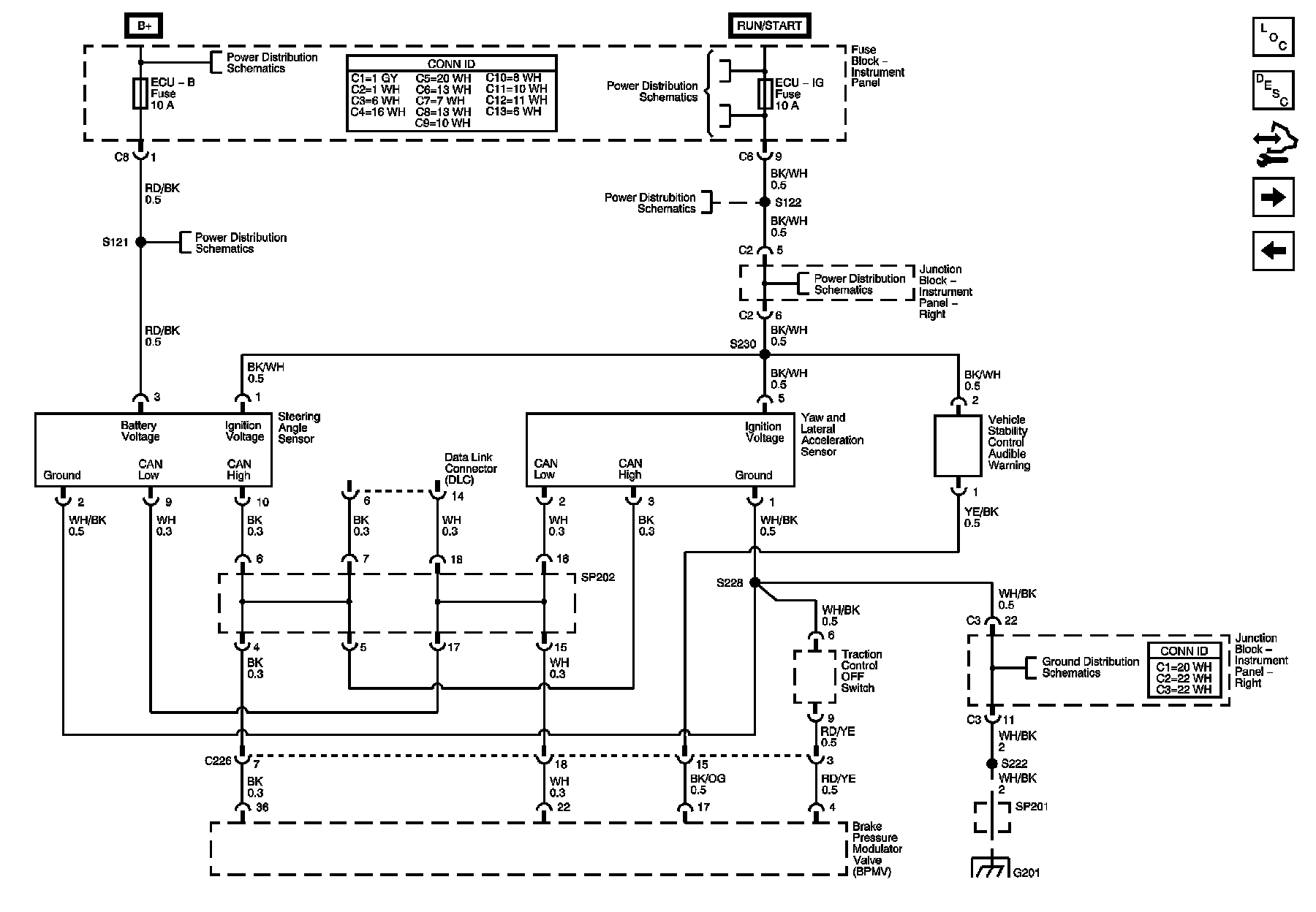

Brake Pressure Modulator Valve (BPMV), Steering Angle Sensor, Yaw and Lateral Acceleration Sensor (JL4)

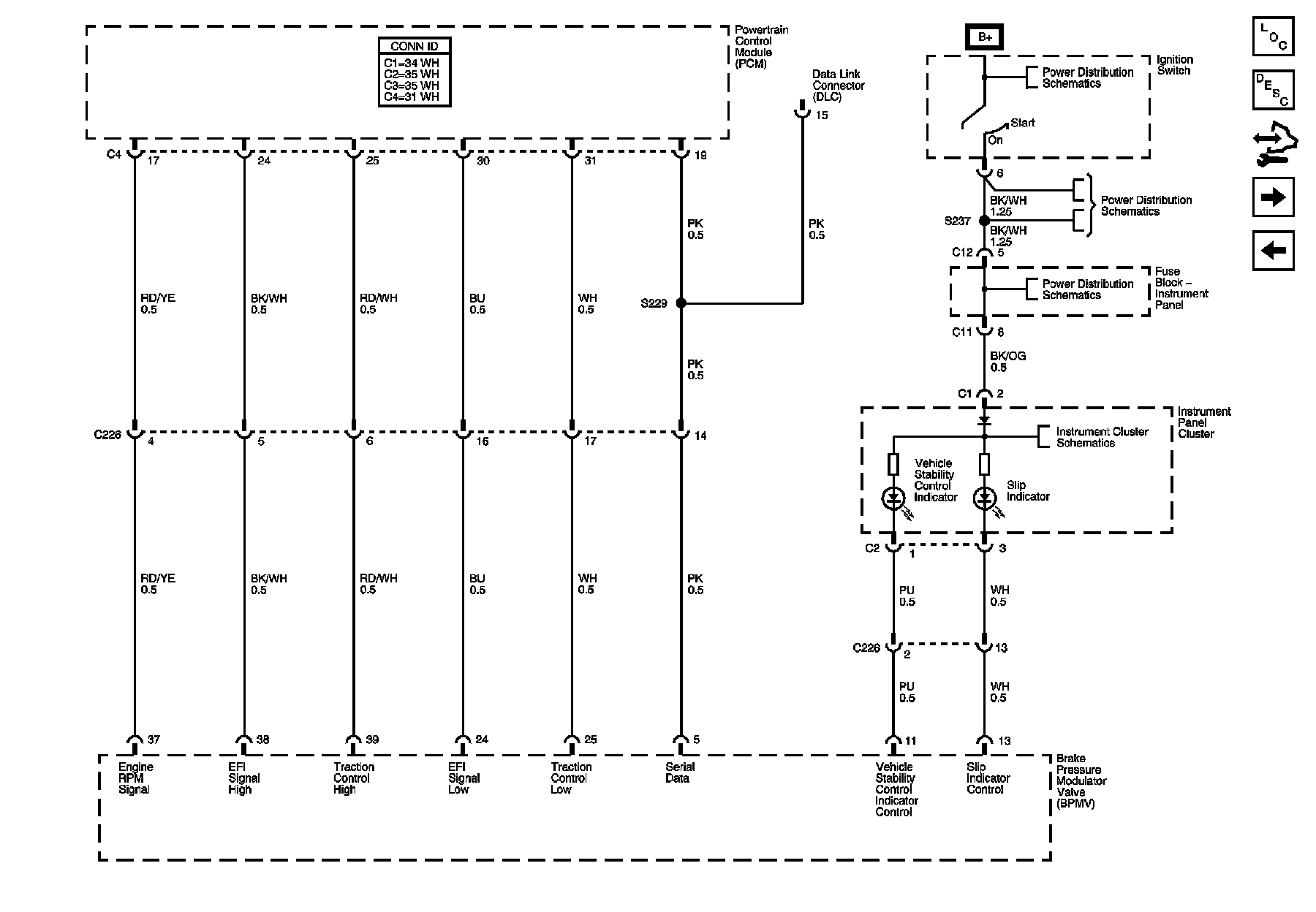

Brake Pressure Modulator Valve (BPMV), Powertrain Control Module (PCM) (JL4)
Park/Neutral Position Switch, Brake Pressure Modulator Valve (BPMV), Multifunction Alarm Module

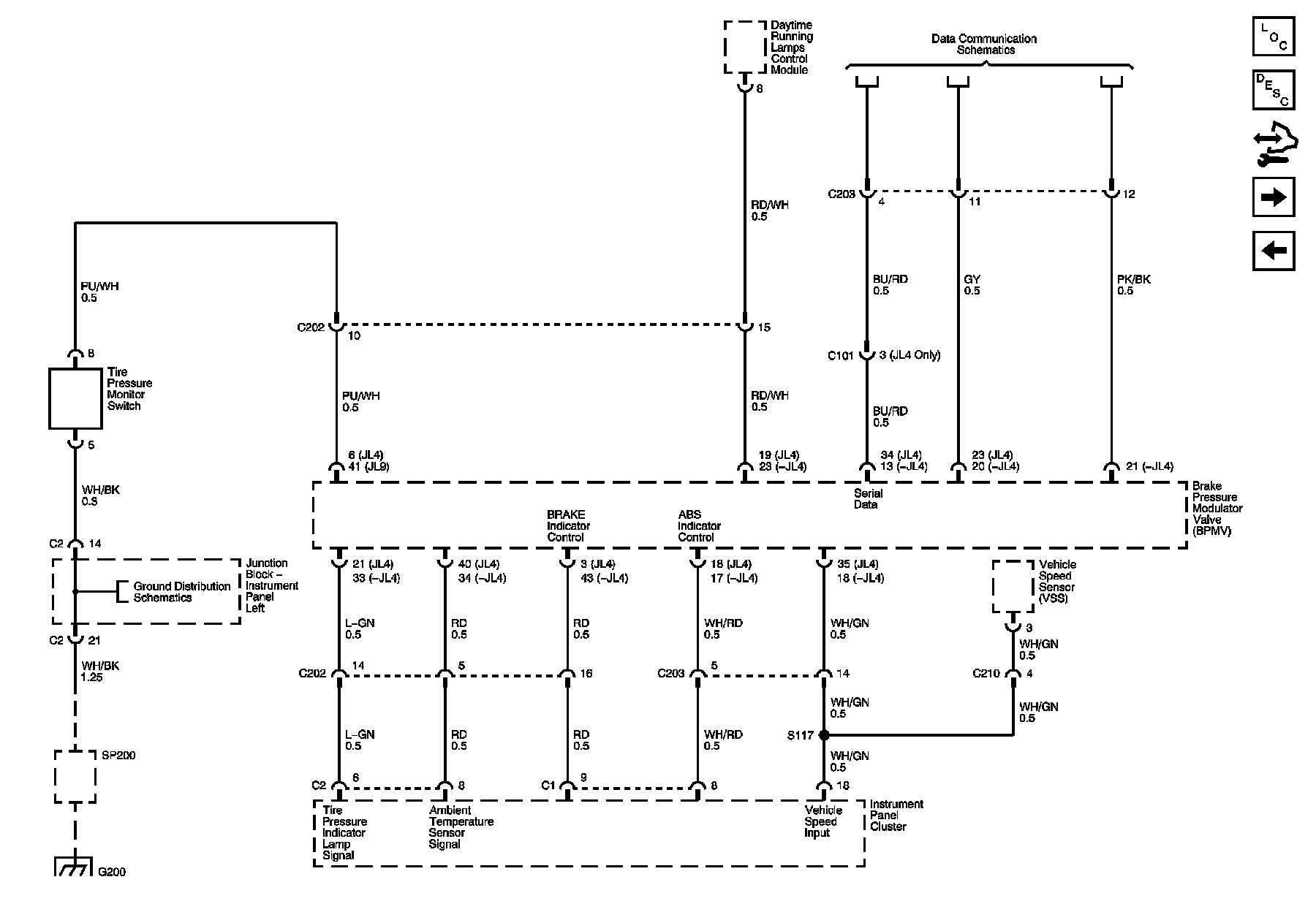

Brake Pressure Modulator Valve (BPMV), Tire Pressure Monitor Switch, Data Link Connector (DLC), Instrument Panel Cluster (IPC)

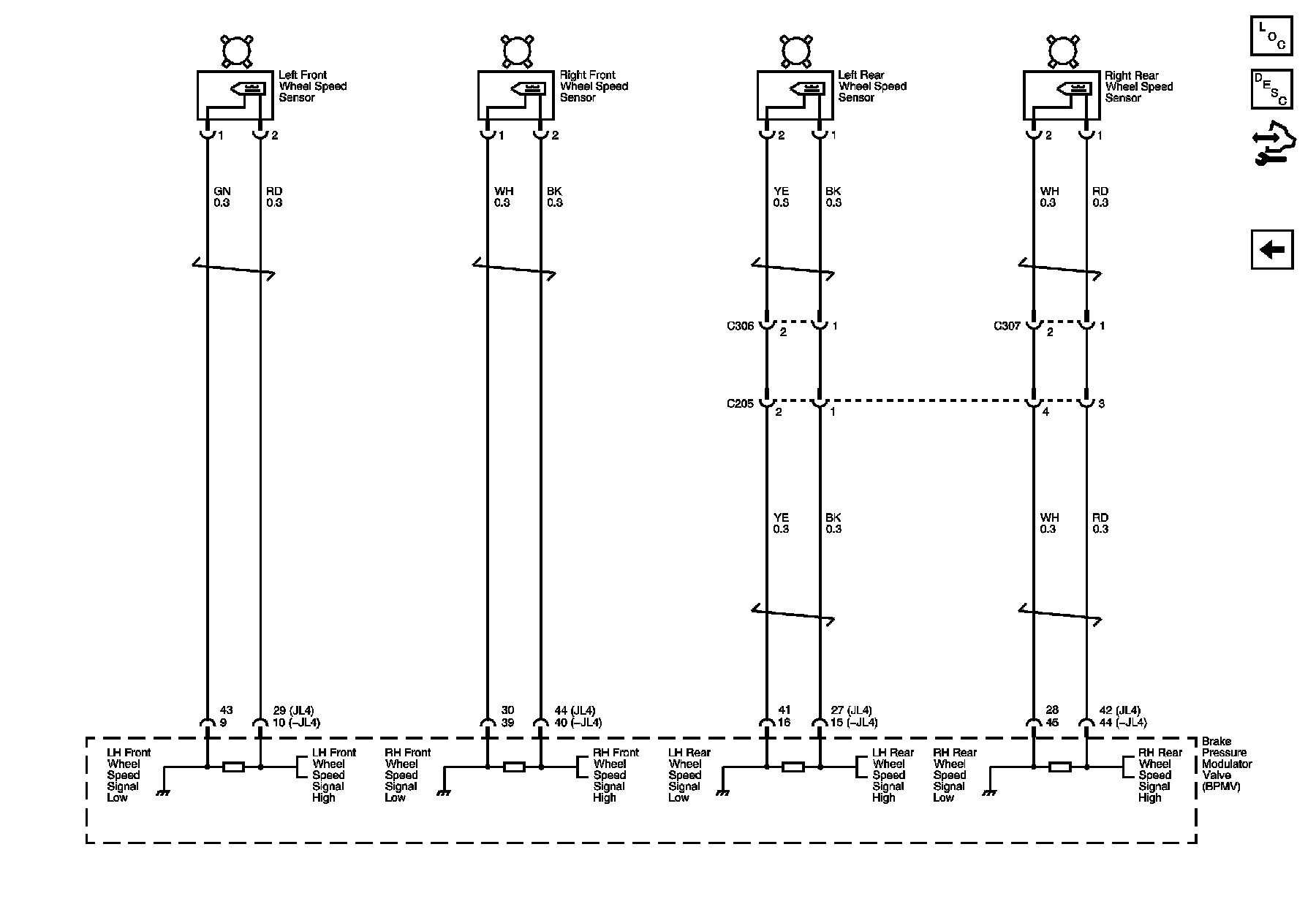

Wheel Speed Sensors
