Cruise Control



Cruise Control Schematics

Powertrain Control Module, Stop Lamp Switch and Cruise Control Switch

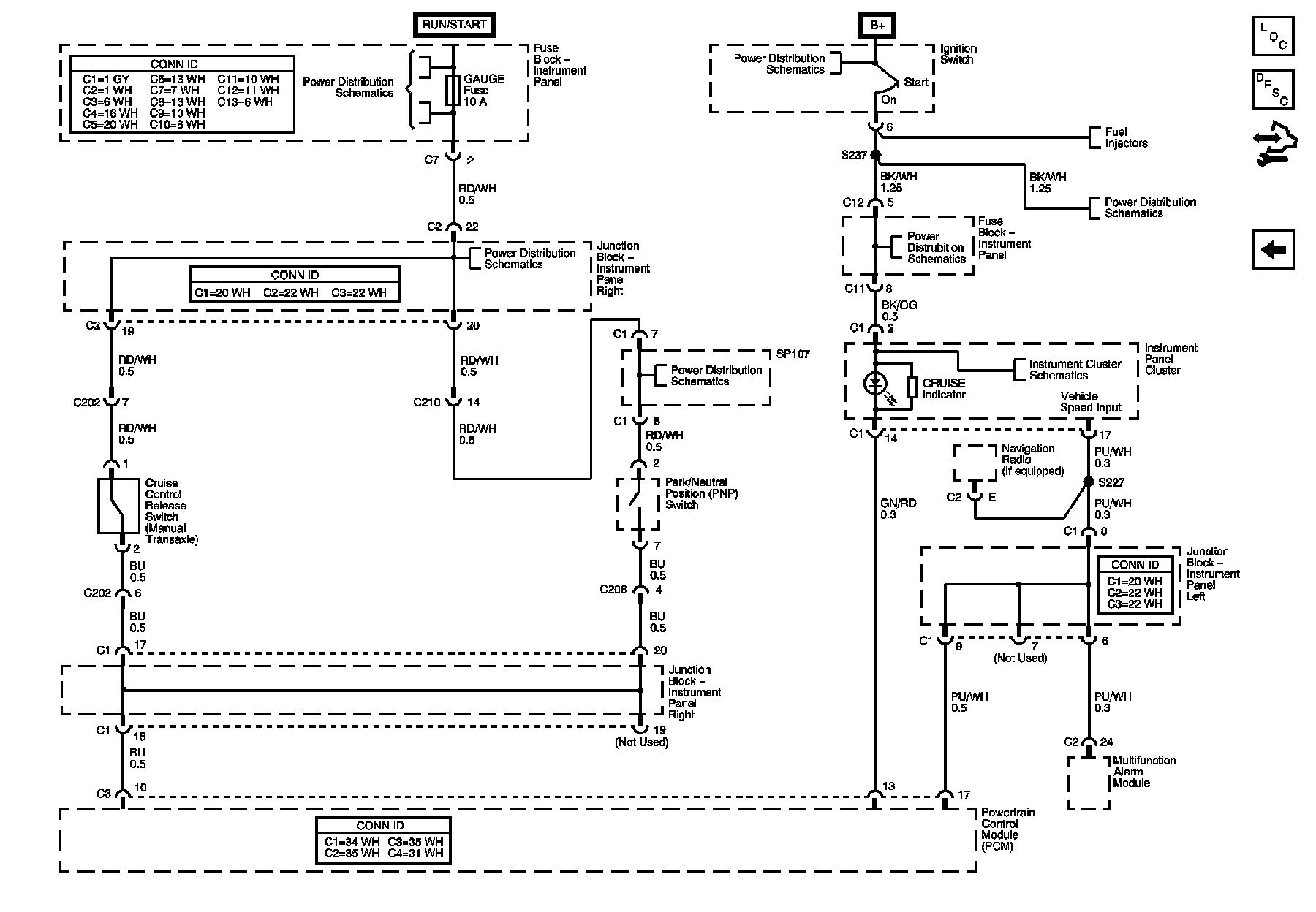

Powertrain Control Module, Cruise Control Release Switch, Cruise Indicator
