Cigarette Lighter
Cigarette Lighter

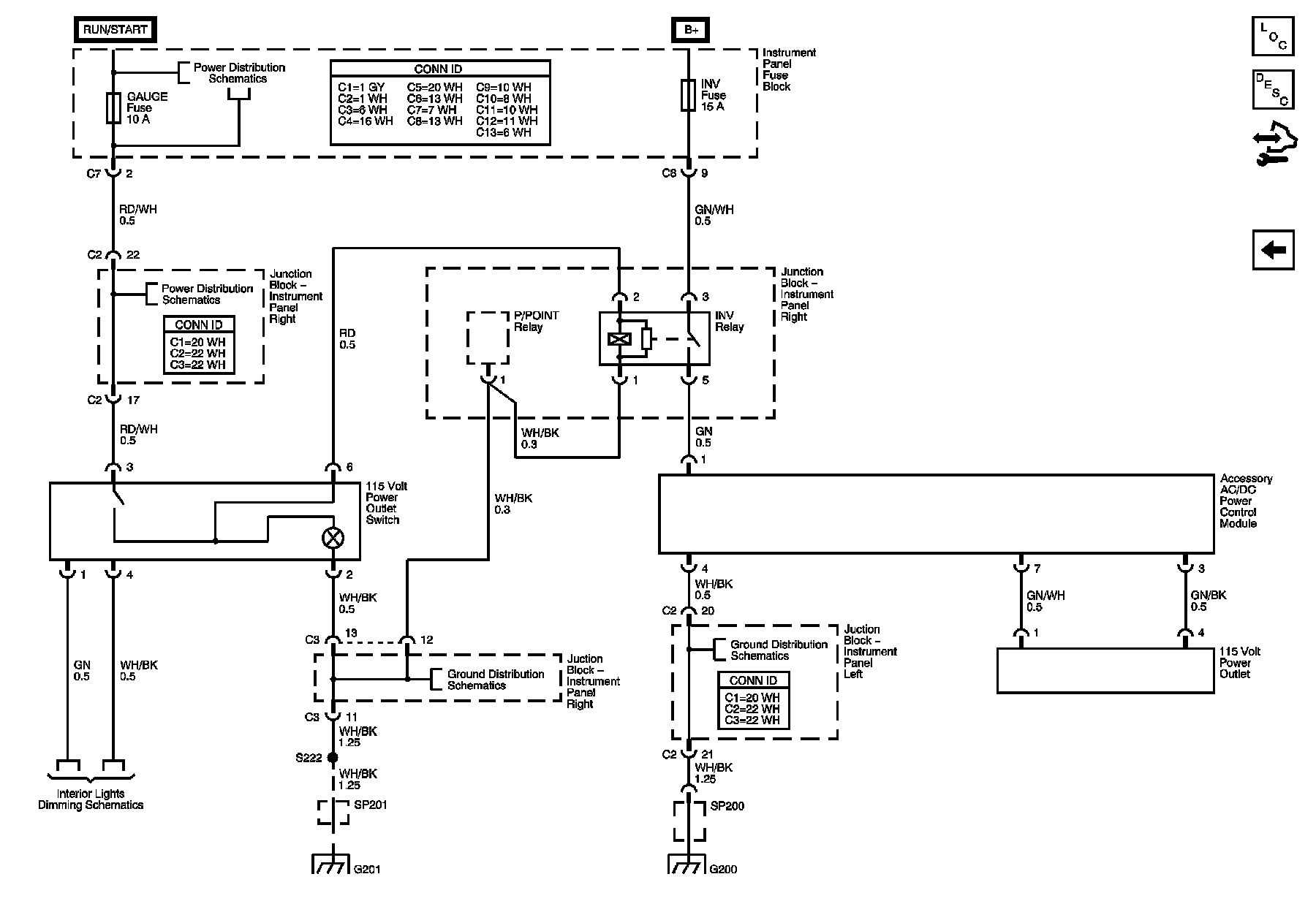

Cigar Lighter/Power Outlet Schematics
Cigar Lighter
Power Outlet
