System Diagram
Engine Controls Schematics

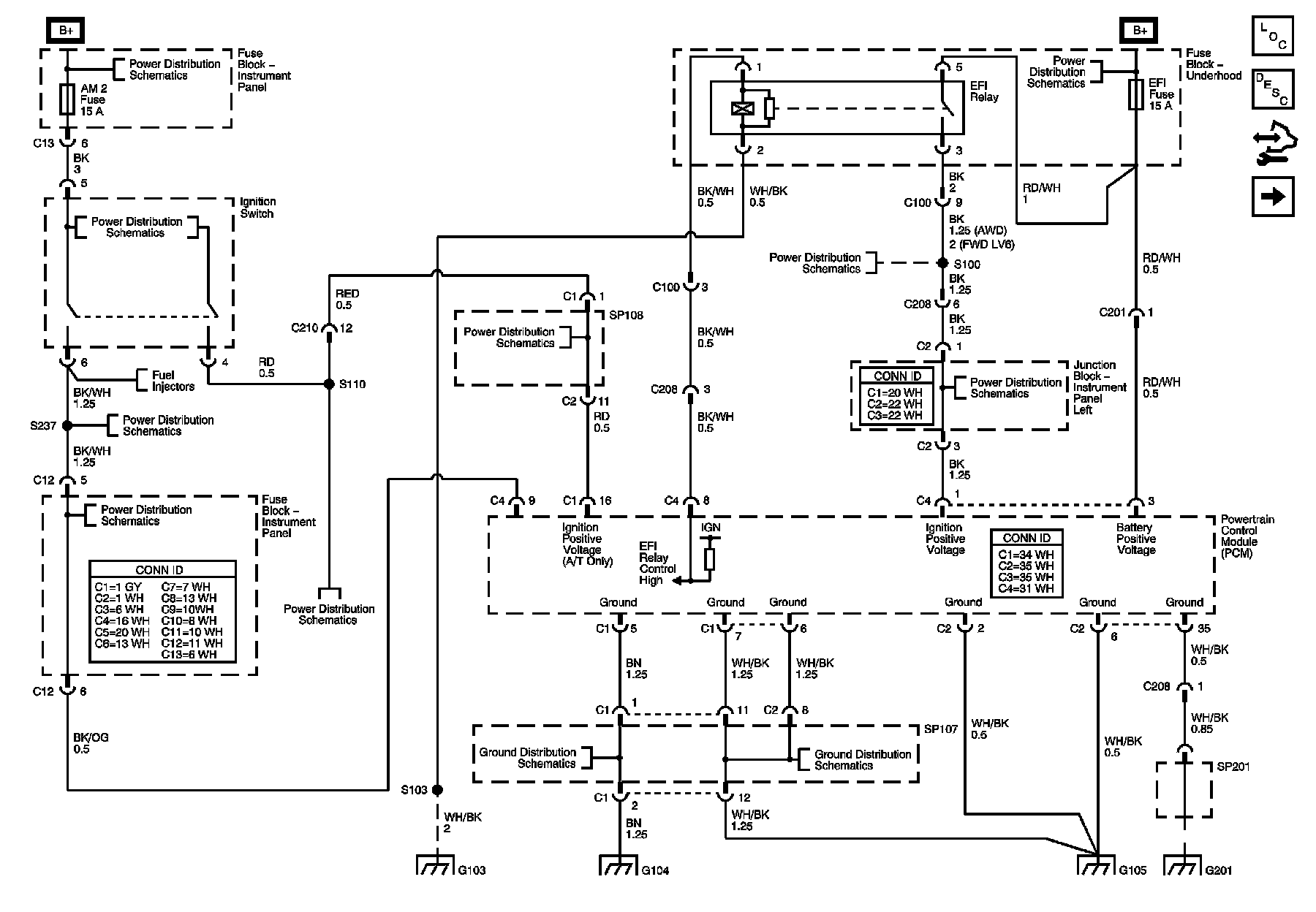

Powertrain Control Module (PCM) Power and Ground
EFI Relay
Data Link Connector

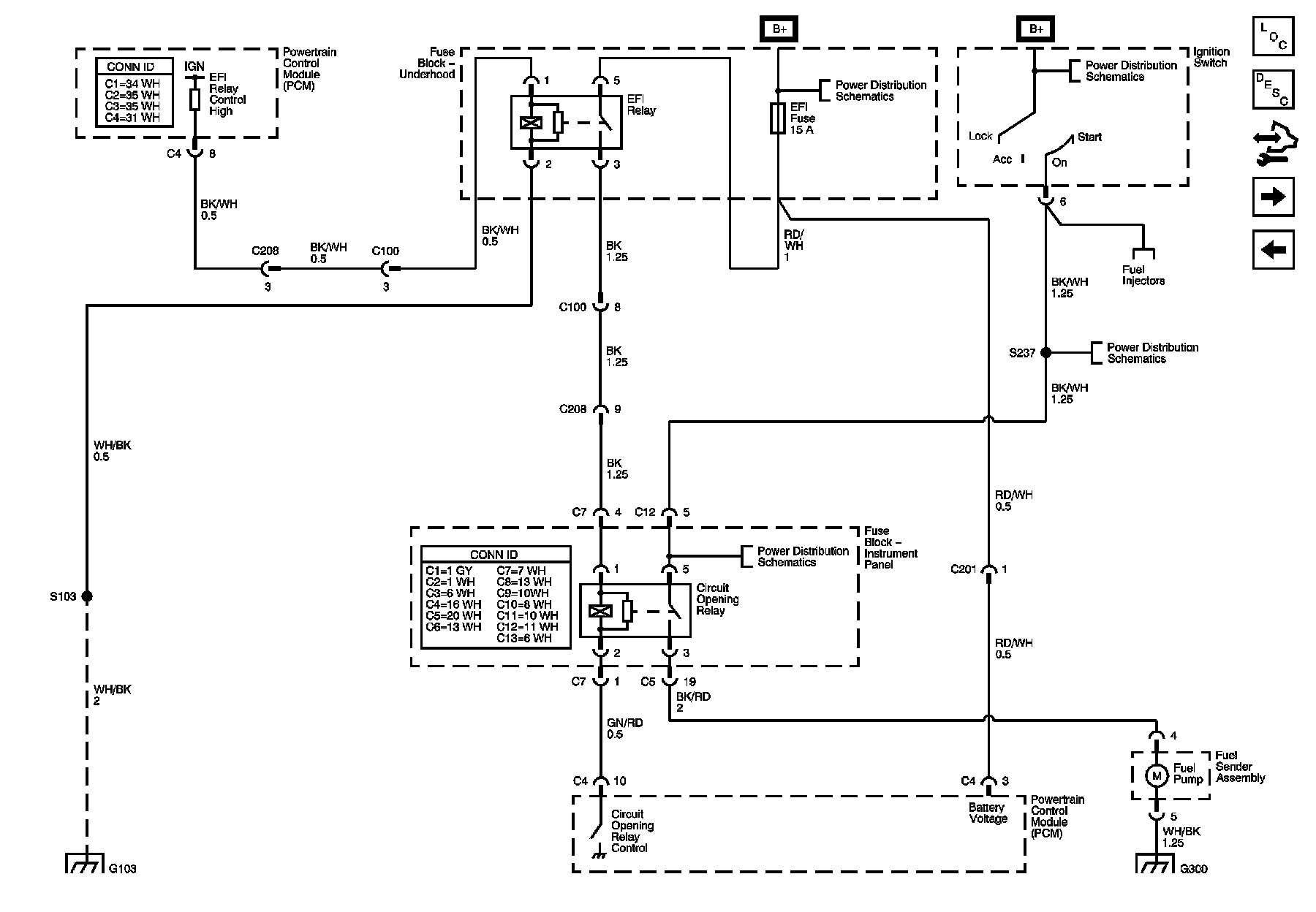

Fuel Sender Assembly

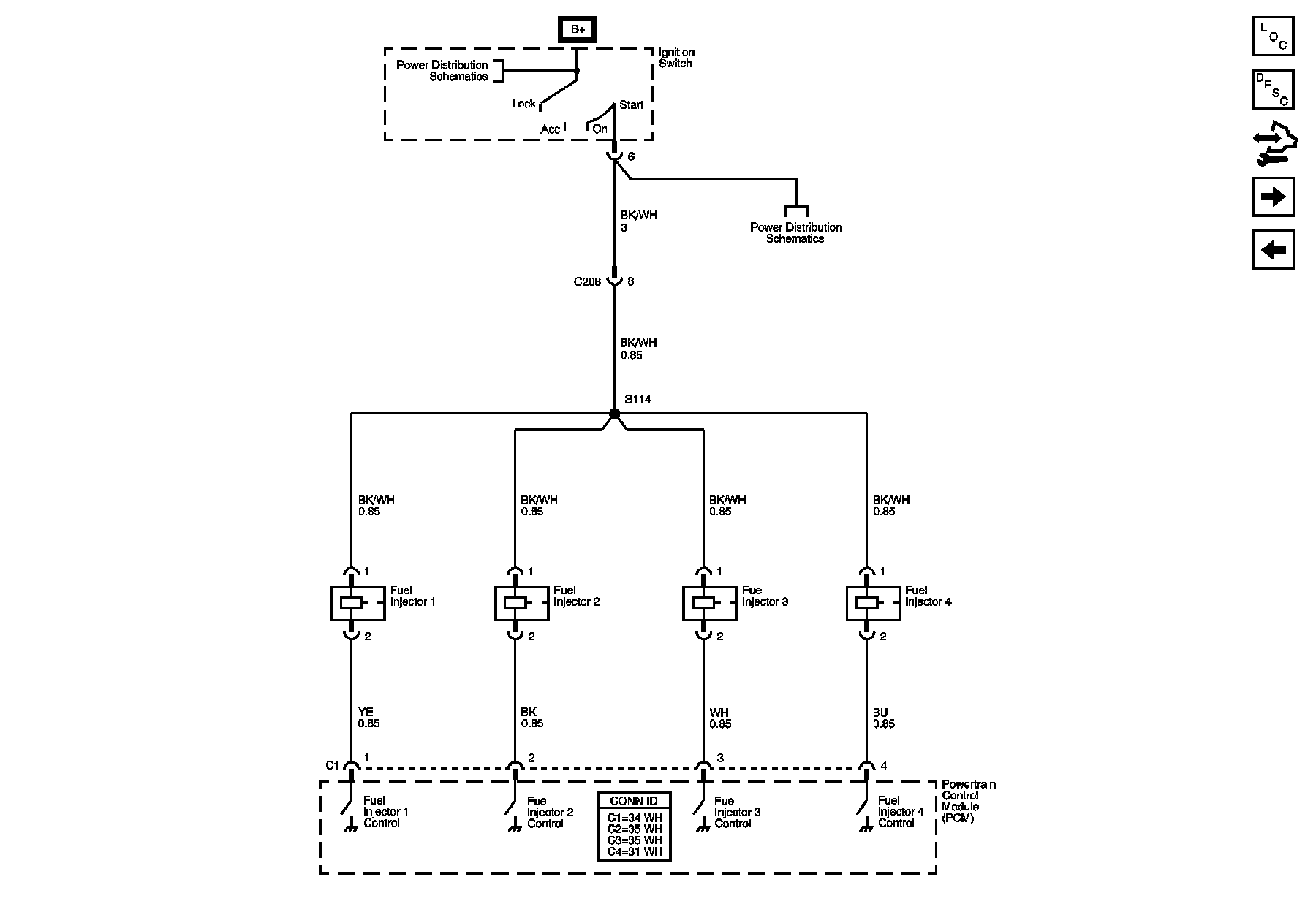

Fuel Injectors
Ignition Coils
Accelerator Pedal Position (APP) Sensor

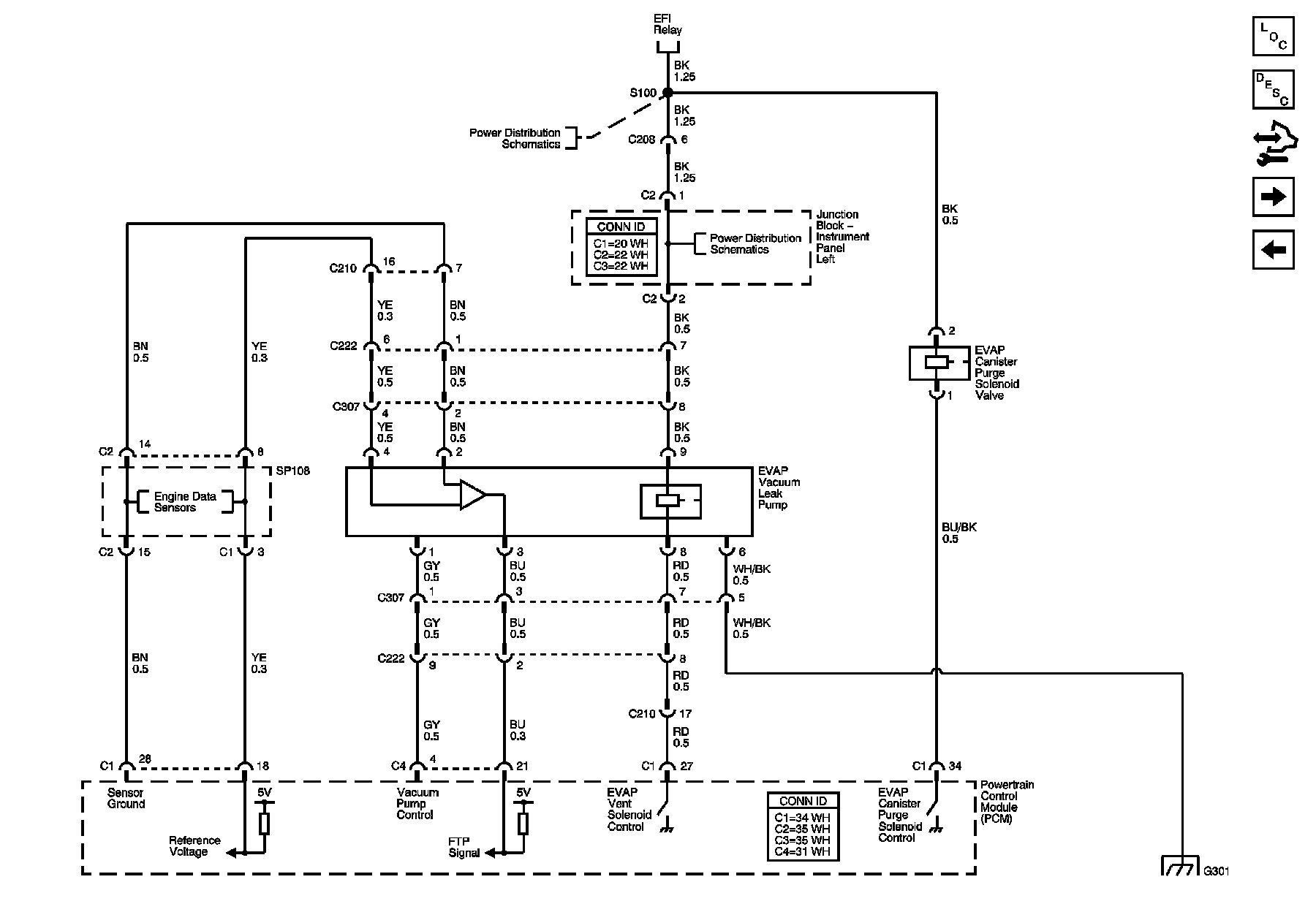

EVAP System
Engine Coolant Temperature (ECT) Sensor, Fuel Tank Pressure (FTP) Sensor, Throttle Actuator Control (TAC) Module
Mass Air Flow (MAF) Sensor
Knock Sensor (KS), Camshaft Position (CMP), Crankshaft Position (CKP) Sensors, Camshaft Position Actuator Solenoid Valve

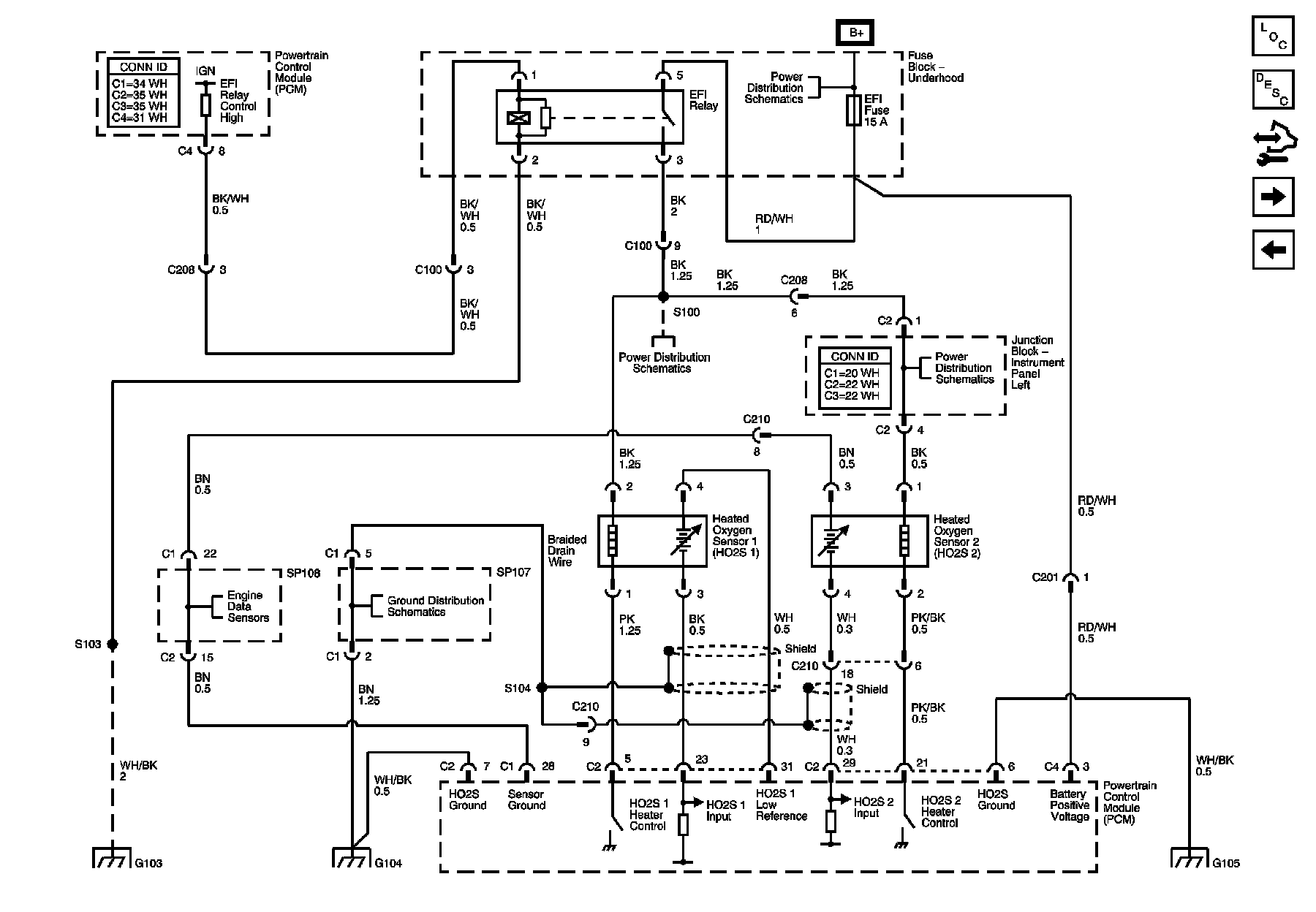

Heated Oxygen Sensors (HO2S)
Park/Neutral Position Switch

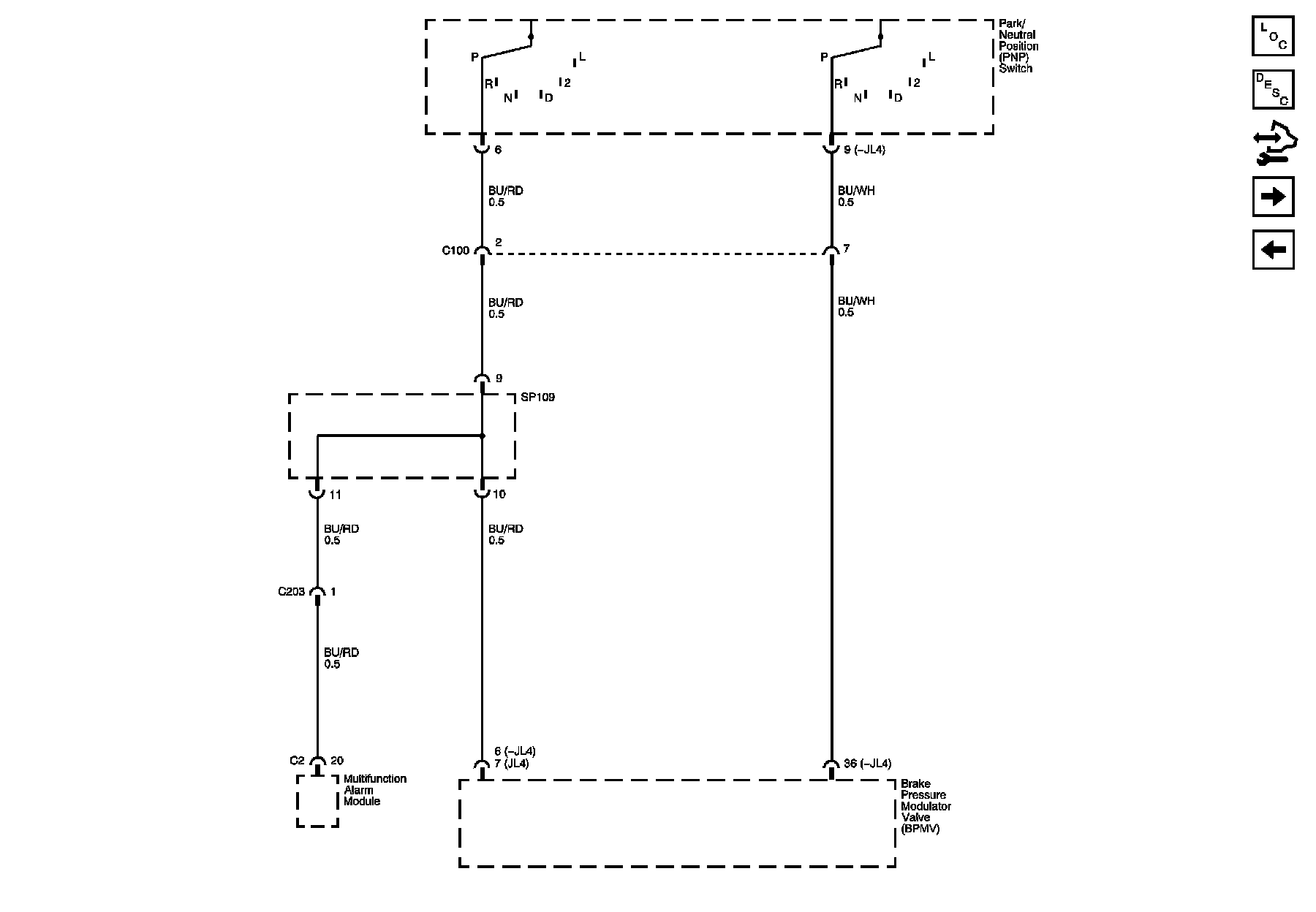

Park/Neutral Position Switch, Brake Pressure Modulator Valve (BPMV), Multifunction Alarm Module
Vehicle Speed Sensor (VSS)

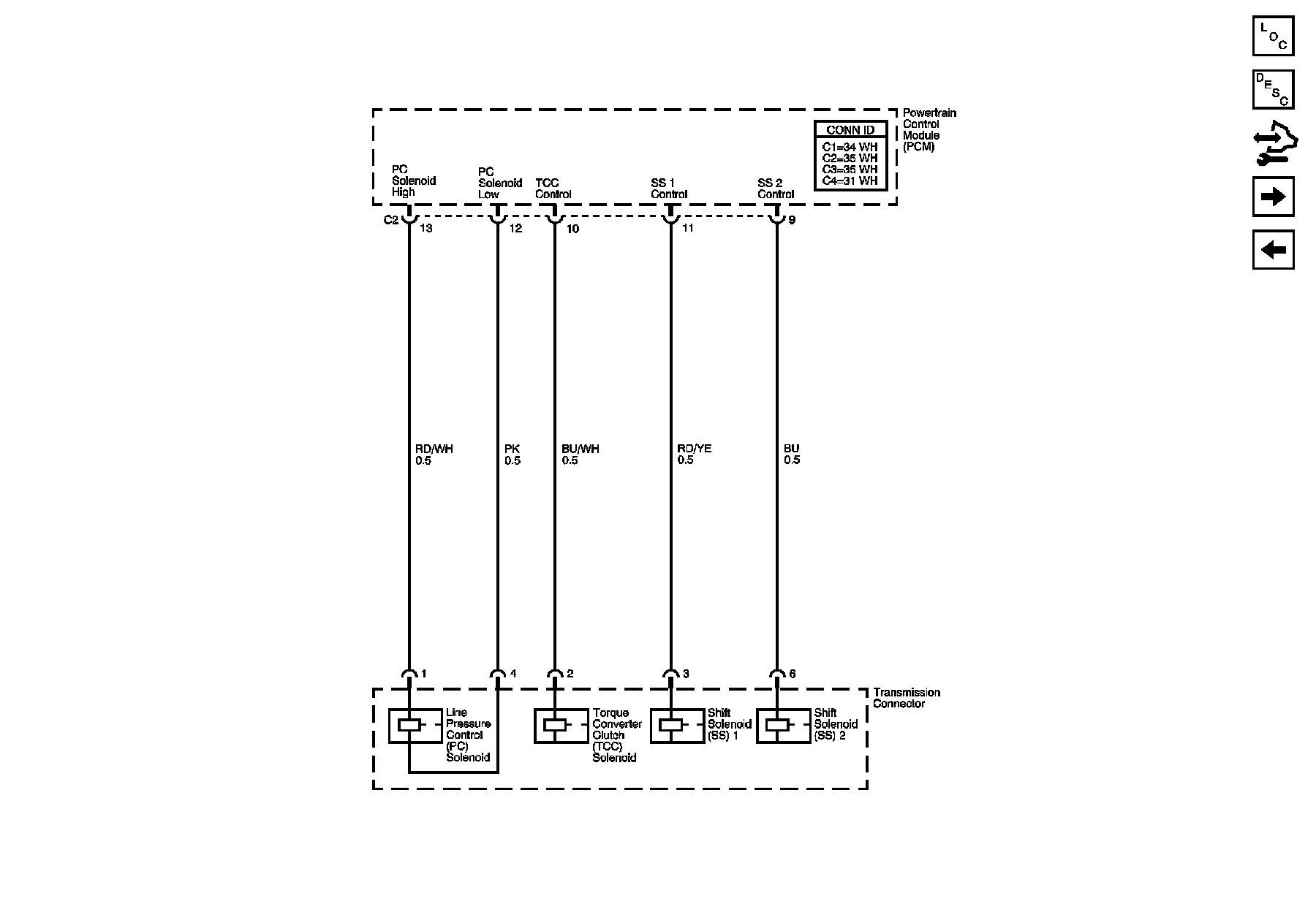

Automatic Transaxle Controls

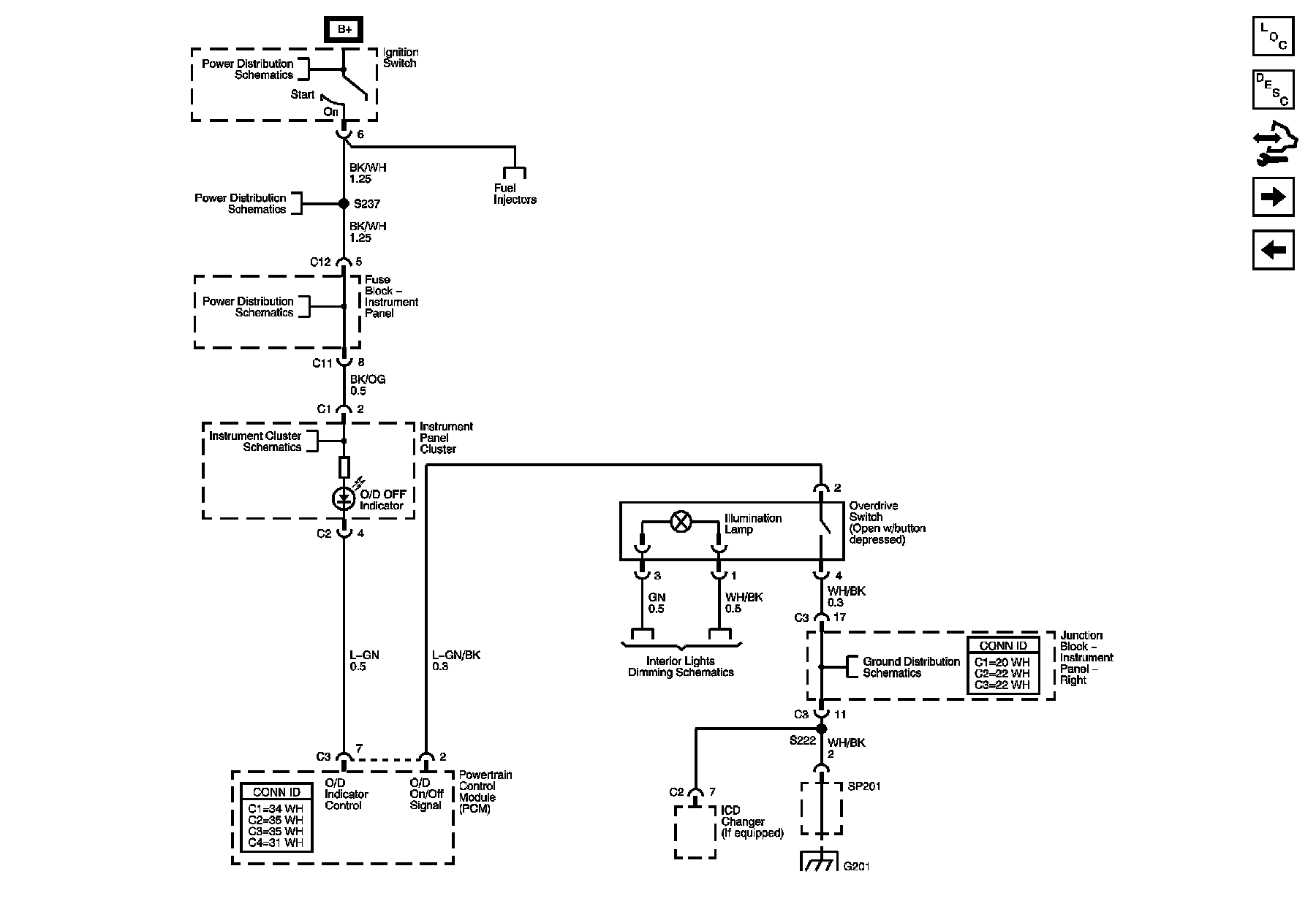

Overdrive Switch and Indicator (A/T)

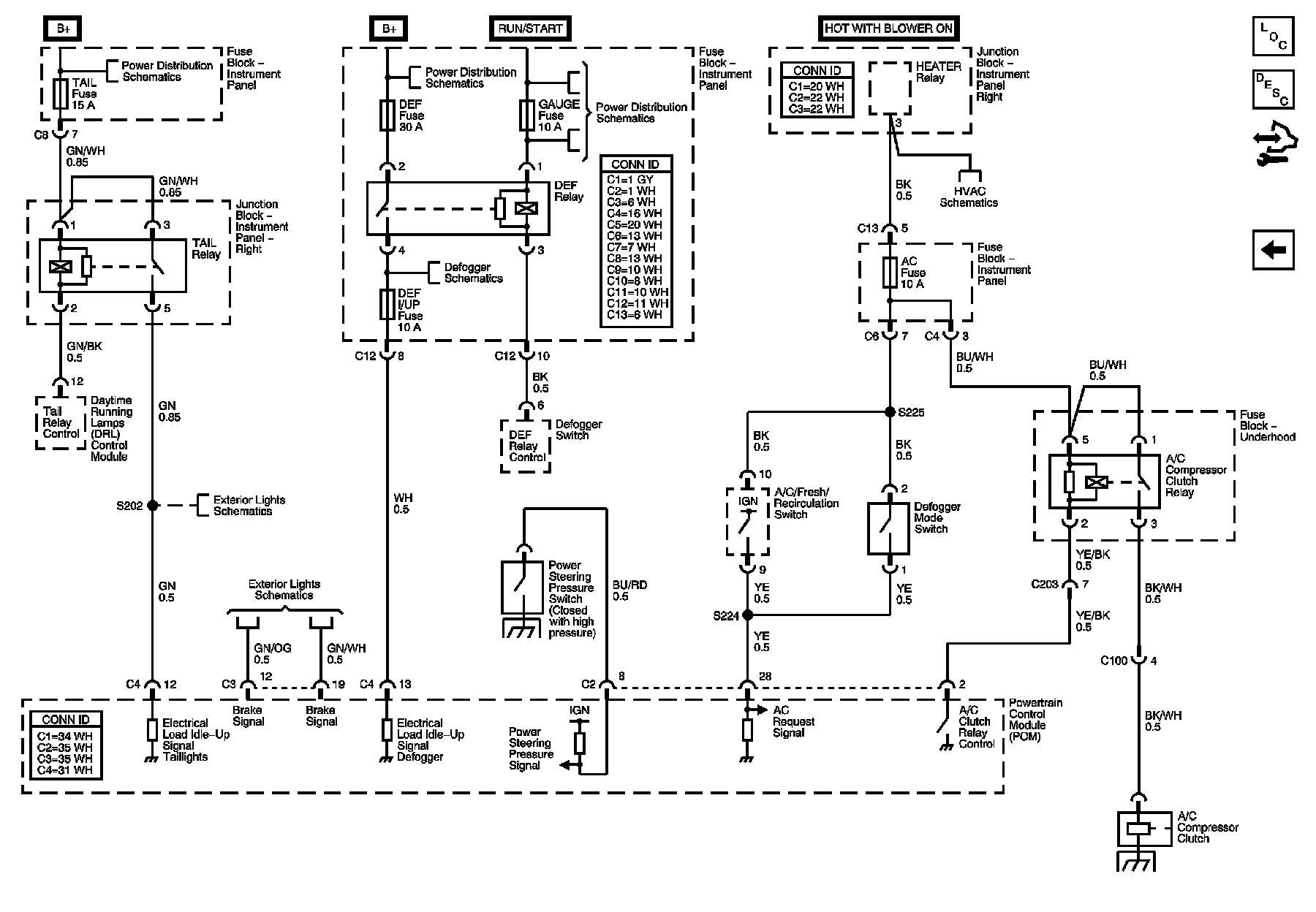

Powertrain Control Module (PCM) Idle-Up Inputs
