System Diagram
System Diagram
Starting and Charging
Schematics

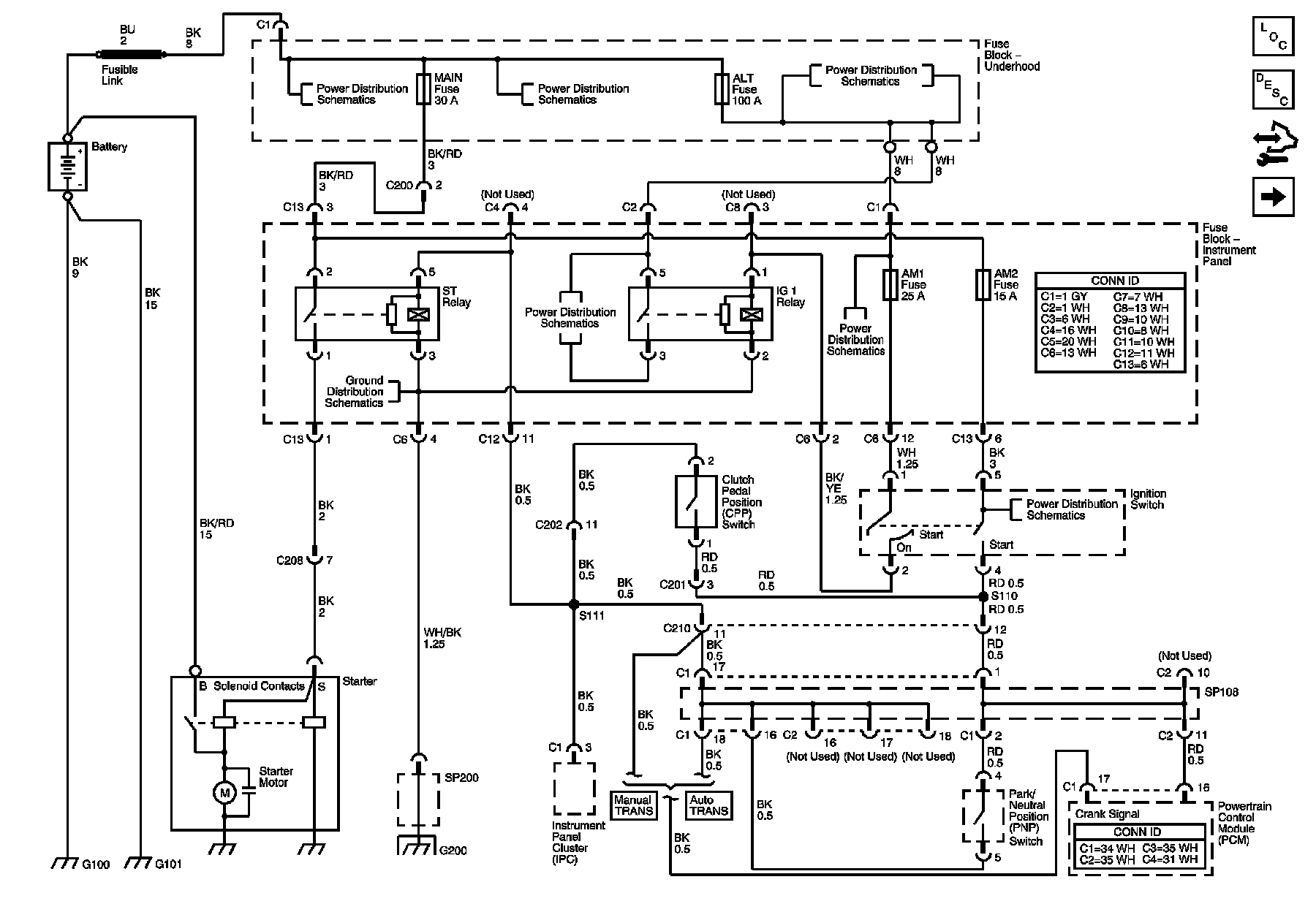

Starting System
Starting System
with Theft Deterrent

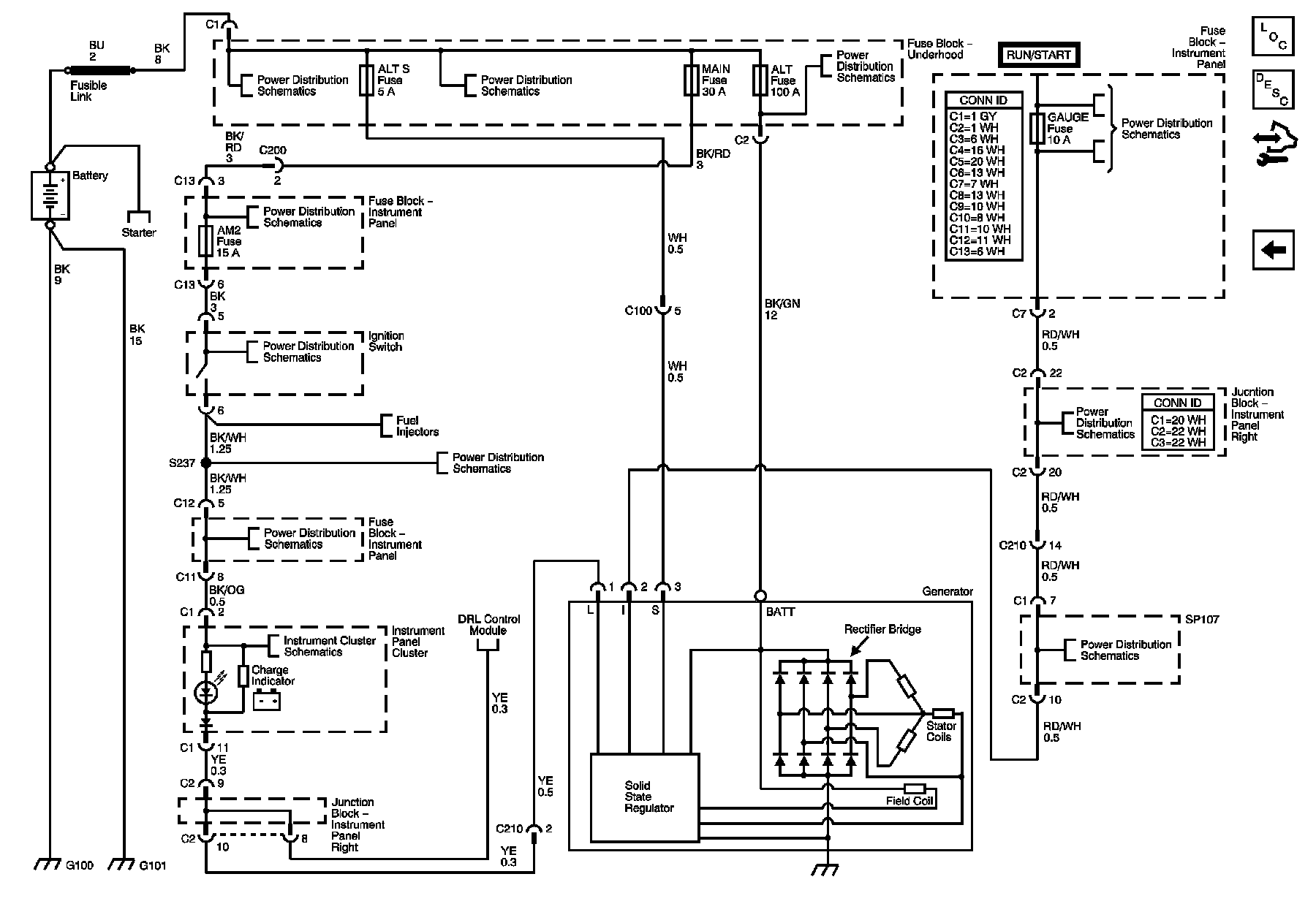

Charging System
