Body Views

Harness Routing Views

Body Connector and Ground Locations




1 - Roof Harness
2 - Instrument Panel Harness No. 3
3 - RH Front Door Harness
4 - C302
5 - RH Rear Door Harness
6 - Liftgate Harness No. 1
7 - C300
8 - C301
9 - C205
10 - G301
11 - Liftgate Harness No. 2
12 - C401
13 - C400
14 - RH ABS Sensor Harness
15 - G300
16 - LH ABS Sensor Harness
17 - C205
18 - LH Rear Door Harness
19 - Instrument Panel Harness
20 - Floor Harness
21 - C303
22 - LH Front Door Harness
23 - Instrument Panel Harness

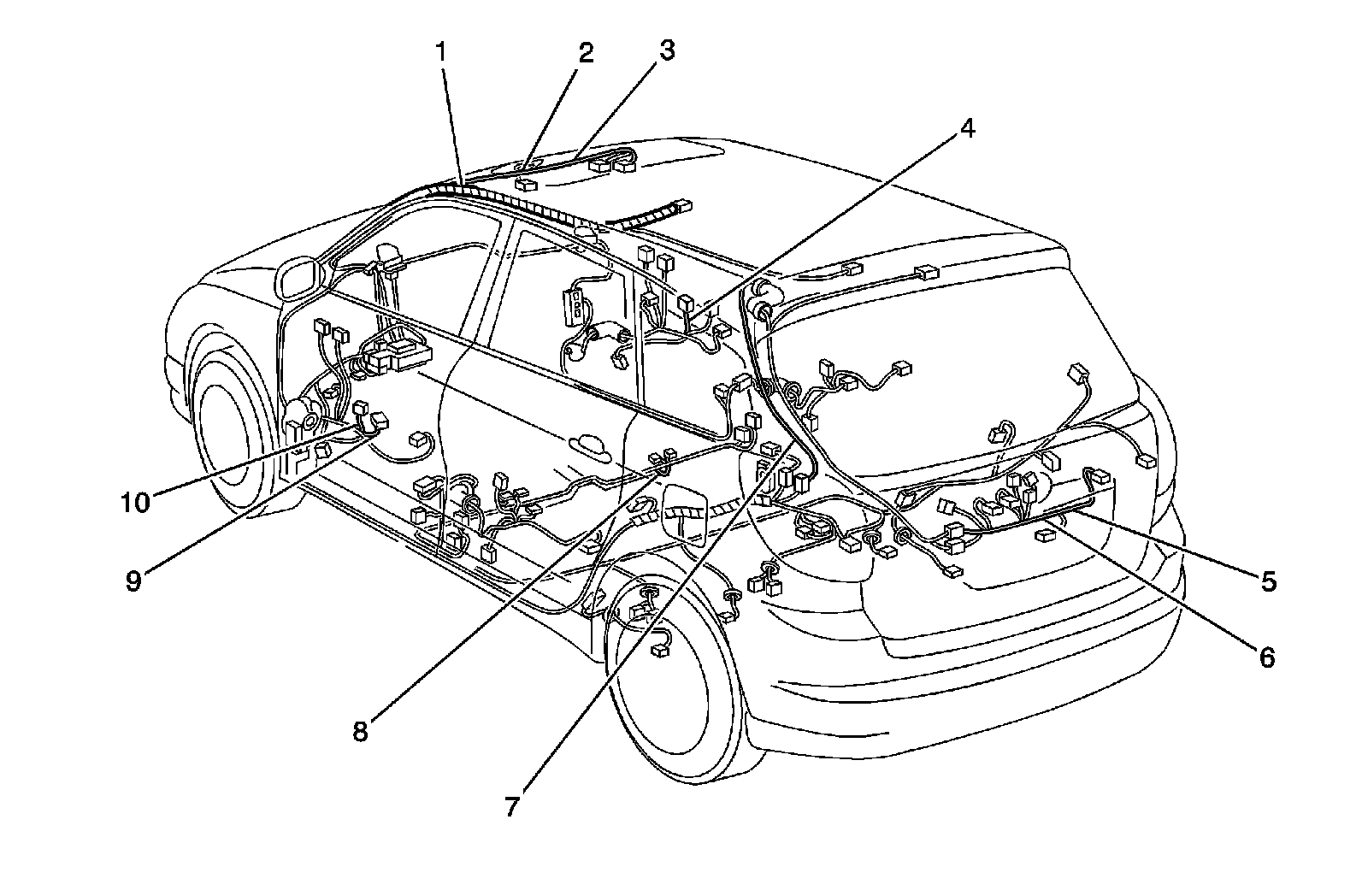

Body Harness Splice Locations




1 - S301
2 - S300
3 - S302
4 - S600
5 - S401
6 - S400
7 - S302
8 - S223
9 - S500
10 - S500

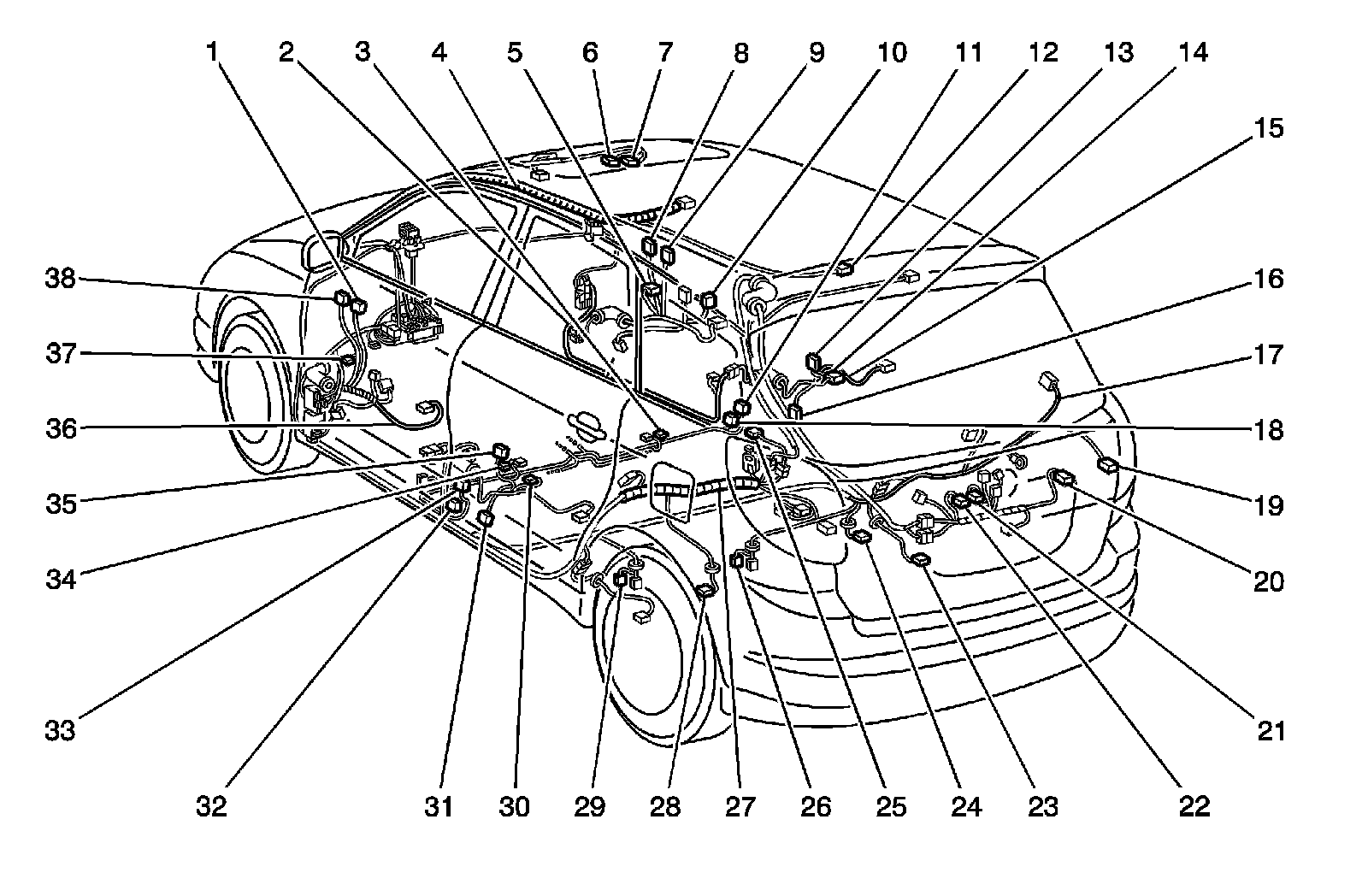

Body Connector Locations - 1 of 2




1 - LH Speaker
2 - Floor Harness
3 - RH Side Airbag Module
4 - Roof Harness
5 - RH Front Power Window Motor
6 - Sunroof Motor and Limit Switch
7 - Sunroof Control Relay
8 - RH Power Mirror
9 - RH Speaker
10 - RH Front Power Window Switch
11 - RH Side Airbag Sensor
12 - Luggage Compartment Light
13 - RH Rear Power Window Switch
14 - RH Rear Power Window Motor
15 - Right Rear Door Harness
16 - RH Rear Door Speaker
17 - Tailgate Harness
18 - RH Pretensioner
19 - RH Rear Combination Light
20 - RH License Plate Light
21 - LH License Plate Light
22 - Rear Wiper Relay
23 - Vacuum Switching Valve (VSV) (AWD)
24 - LH Rear Combination Light
25 - Noise Filter
26 - Vapor Pressure Sensor (2WD)
27 - Floor Harness
28 - Vacuum Switching Valve (VSV) (2WD)
29 - Vapor Pressure Sensor (AWD)
30 - LH Rear Power Window Motor
31 - LH Rear Door Speaker
32 - LH Pretensioner
33 - LH Side Airbag Sensor
34 - LH Side Airbag Module
35 - LH Rear Power Window Switch
36 - Drivers Door Harness
37 - LH Front Power Window Motor
38 - LH Power Mirror

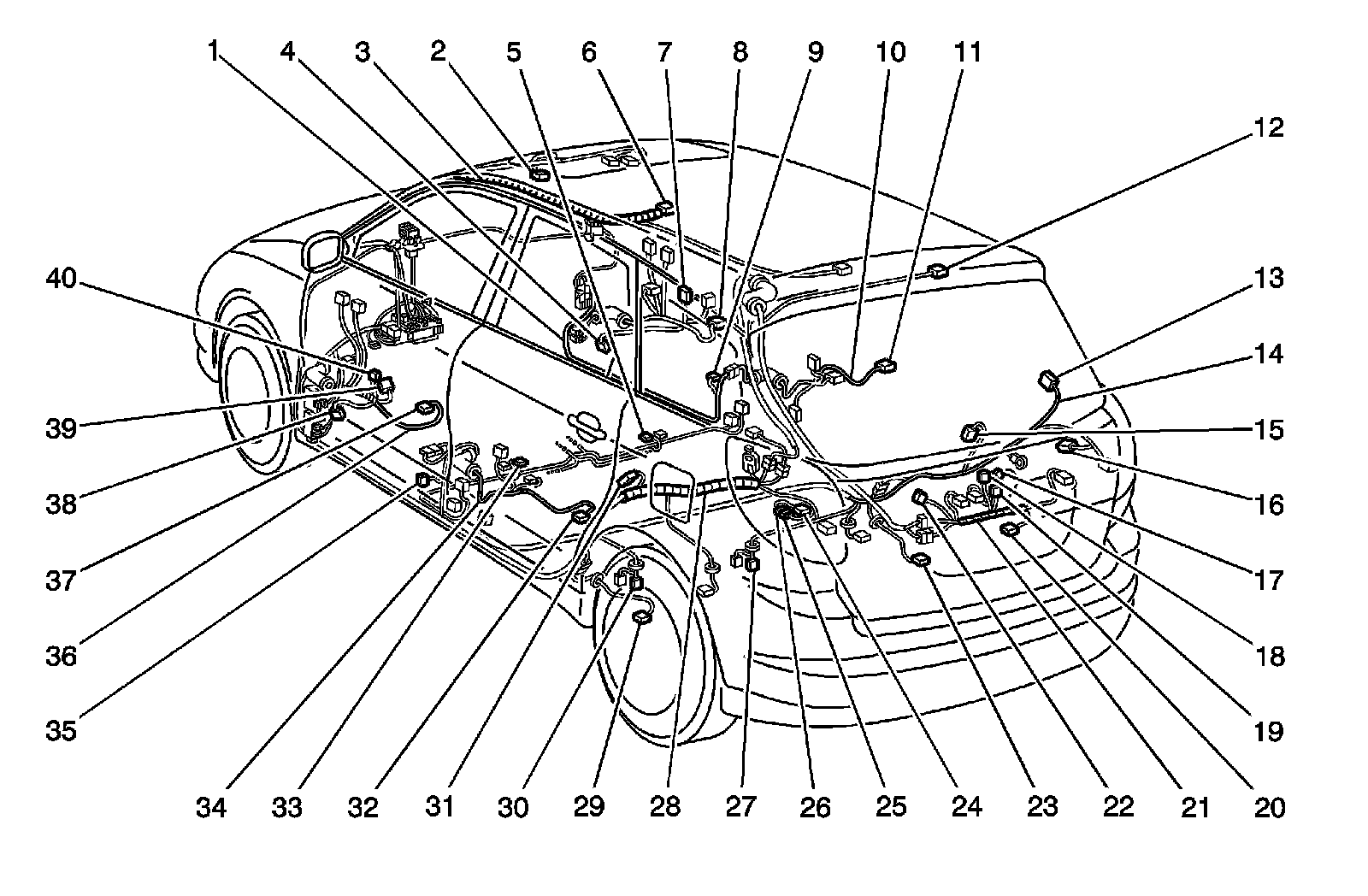

Body Connector Locations - 2 of 2




1 - Floor Harness
2 - Vanity Mirror Light
3 - Roof Harness
4 - RH Front Door Speaker
5 - RH Seat Belt Buckle Switch
6 - Interior Light
7 - RH Front Door Lock Control Switch
8 - RH Front Door Key Switch and Door Lock Motor
9 - RH Front Door Courtesy Switch
10 - Right Rear Door Harness
11 - RH Rear Door Lock Motor
12 - Center High Mount Stop Lamp
13 - Door Control Module
14 - Floor Harness
15 - RH Rear Door Courtesy Switch
16 - Subwoofer Connector
17 - Liftgate Courtesy Switch and Opener Motor
18 - Junction Switch
19 - Door Courtesy Diode
20 - Liftgate Courtesy Switch and Door Lock Motor
21 - Tailgate Harness
22 - Junction Connector
23 - RH Rear ABS Speed Sensor
24 - Junction Conector
25 - Junction Conector
26 - Junction Conector
27 - Fuel Pump and Sender (2WD)
28 - Floor Harness
29 - LH Rear ABS Speed Sensor
30 - Fuel Pump and Sender (4WD)
31 - LH Rear Door Courtesy Switch
32 - LH Rear Door Lock Motor
33 - LH Seat Buckle Switch and Seat Position Sensor
34 - Left Rear Door
35 - Drivers Courtesy Switch
36 - Door Harness
37 - Drivers Door Lock Switch
38 - Left Front Door Speaker
39 - Master Door Lock Switch
40 - Master Door Lock Switch
