Engine Compartment Views

Harness Routing Views

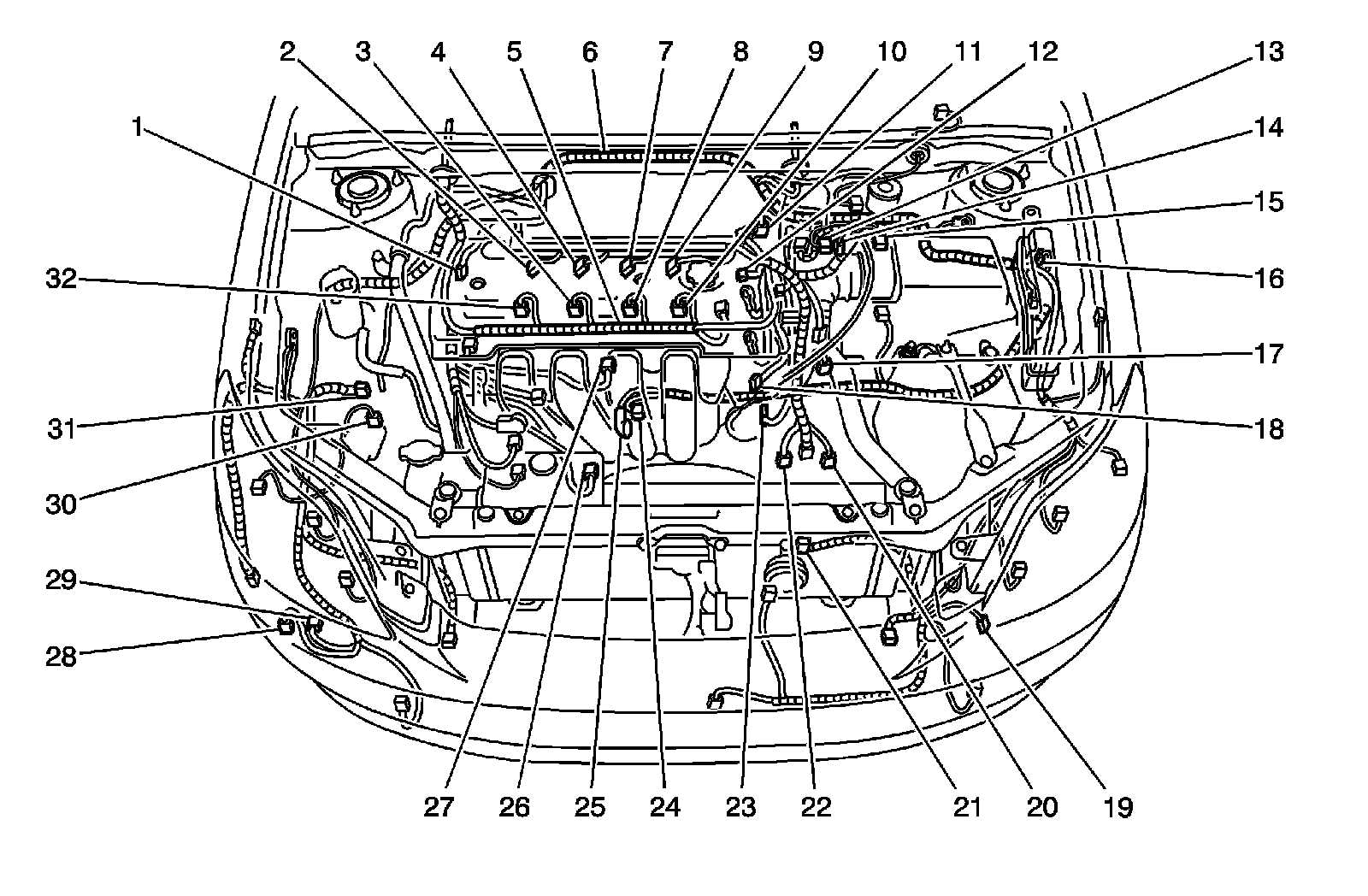

LV6 Engine Compartment Connector Locations - 1 of 2




1 - Engine Harness
2 - Engine Compartment Harness
3 - Camshaft Position Sensor
4 - Heated Oxygen Sensor 1
5 - Engine Coolant Temperature Sensor
6 - Cruise Control Actuator
7 - Brake Fluid Level Warning Switch
8 - Front Wiper Motor
9 - LH Front ABS Speed Sensor
10 - Back-up Light Switch
11 - LH Front Parking/Turn Signal Light
12 - LH Headlight (Low)
13 - LH Headlight (High)
14 - Radiator Fan Resistor
15 - LH Front Airbag Sensor
16 - Transmission Solenoid
17 - Horn
18 - Ambient Temperature Sensor
19 - A/C Clutch
20 - RH Front Airbag Sensor
21 - RH Front Fog Light
22 - RH Headlight (High)
23 - Front Washer Motor
24 - RH Headlight (Low)
25 - RH Front Parking/Turn Signal Light
26 - Generator
27 - RH Front ABS Speed Sensor
28 - Generator
29 - Crankshaft Position Sensor
30 - Camshaft Timing Oil Control Valve (VVT)

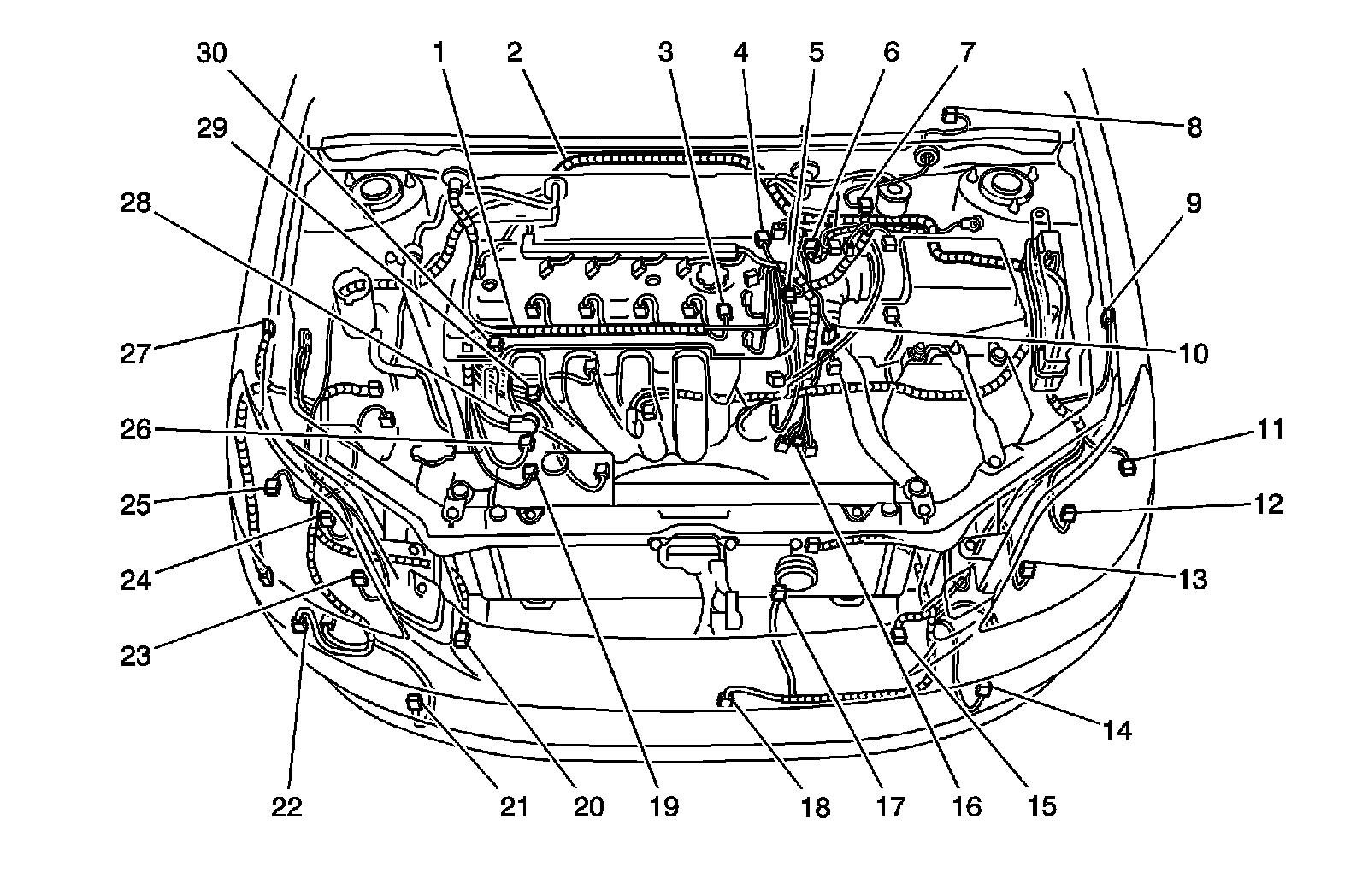

LV6 Engine Compartment Connector Locations - 2 of 2




1 - Power Steering Oil Pressure Switch
2 - Ignition Coil No. 1
3 - Fuel Injector No. 2
4 - Ignition Coil No. 2
5 - Engine Harness
6 - Engine Compartment Harness
7 - Ignition Coil No. 3
8 - Fuel Injector No. 3
9 - Ignition Coil No. 4
10 - Fuel Injector No. 4
11 - Vehicle Speed Sensor (Instrument Cluster)
12 - Ignition Noise Filter
13 - EVAP VSV
14 - Canister Closed VSV
15 - Mass Air Flow Sensor
16 - Junction Connector
17 - Vehicle Speed Sensor (Transmission)
18 - Throttle Position Sensor
19 - Engine Cooling Fan Resistor
20 - Park/Neutral Position Switch (AWD)
21 - Engine Cooling Fan Motor
22 - Park/Neutral Position Switch (2WD)
23 - Idle Air Control Valve
24 - Starter
25 - Starter
26 - Oil Pressure Switch
27 - Knock Sensor
28 - Rear Washer Motor
29 - Washer Fluid Level Sensor
30 - Pressure Switch
31 - Electronic Brake Control Module
32 - Fuel Injector No. 1

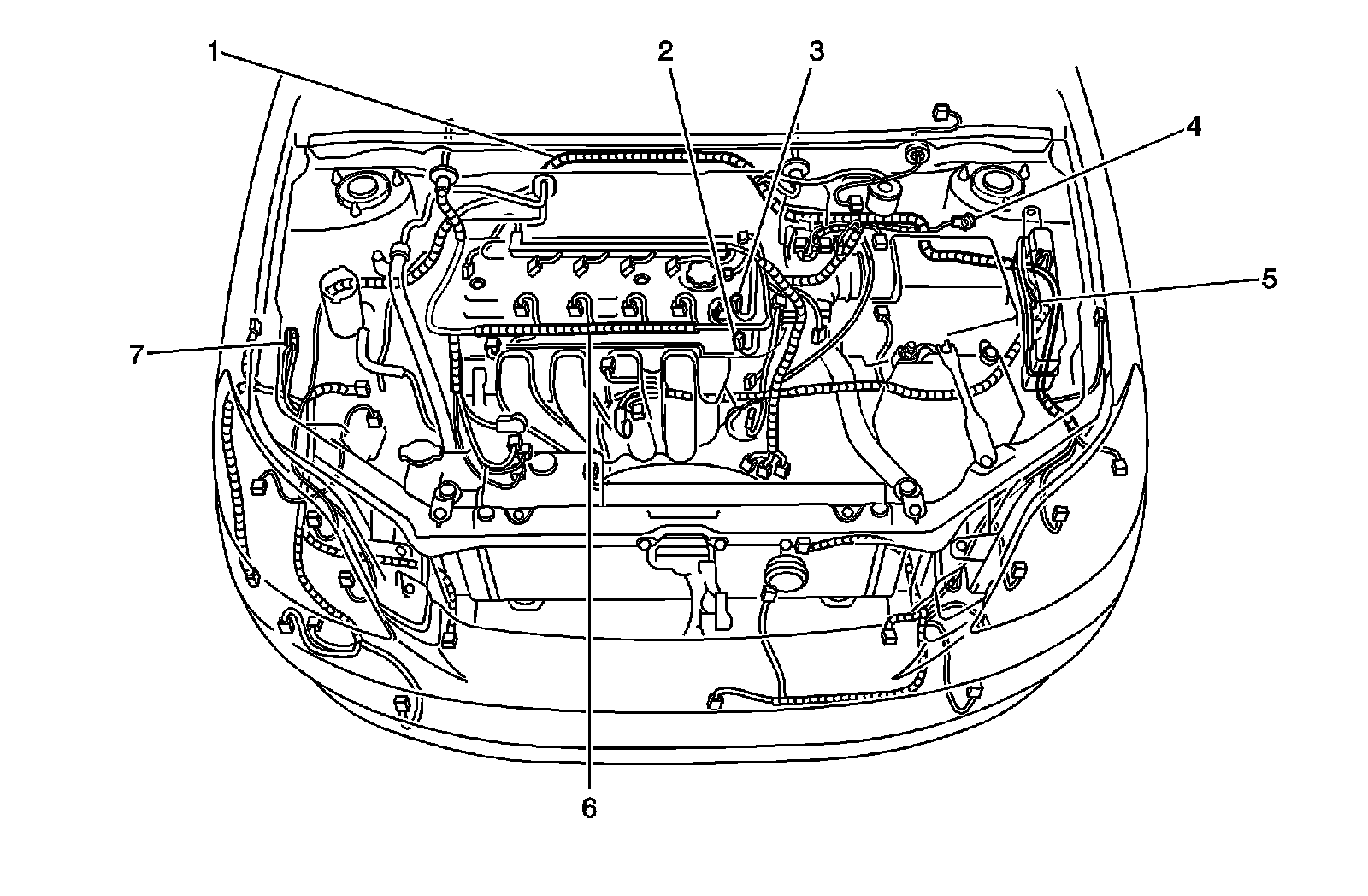

LV6 Engine Compartment Ground and Inline Connector Locations




1 - Engine Compartment Harness
2 - G104
3 - G105
4 - G103
5 - C100
6 - Engine Harness
7 - G102

LV6 Engine Compartment Splice Locations




1 - Engine Compartment Harness
2 - Engine Harness
3 - S106
4 - S103
5 - S105
6 - S101
7 - G102
