Instrument Panel Views
Harness Routing Views

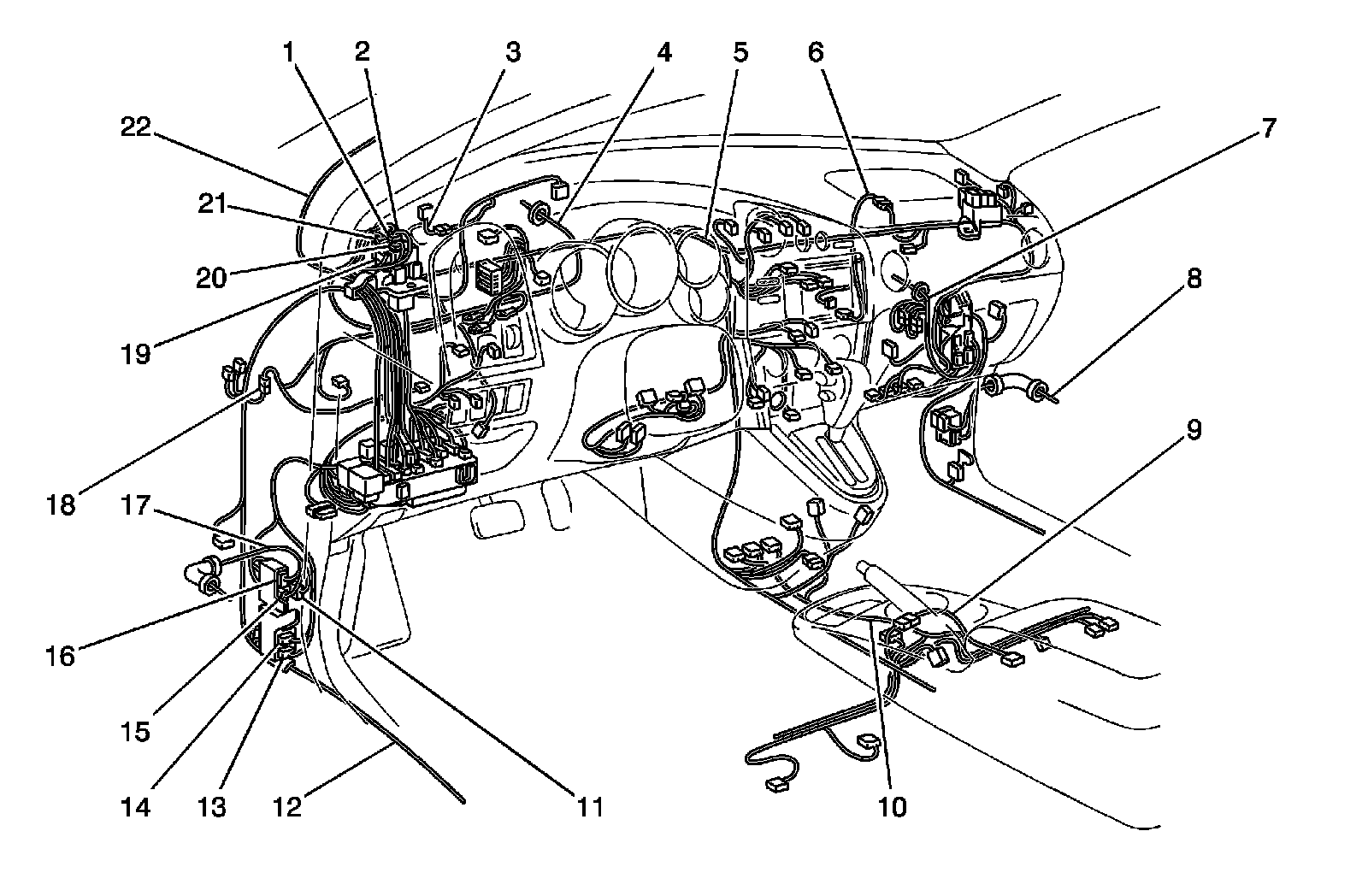

Instrument Panel Inline Connector Locations
1 - C202
2 - C226
3 - Instrument Panel Harness No. 4
4 - Engine Compartment Harness
5 - Instrument Panel Harness
6 - A/C Harness
7 - Engine Harness
8 - RH Front Door Harness
9 - Console Harness
10 - Instrument Panel Harness No. 3
11 - C214
12 - Floor Harness
13 - C222
14 - C206
15 - C216
16 - C215
17 - LH Front Door Harness
18 - Door Harness
19 - C204
20 - C203
21 - C201
22 - Roof Harness
22 - Roof Harness

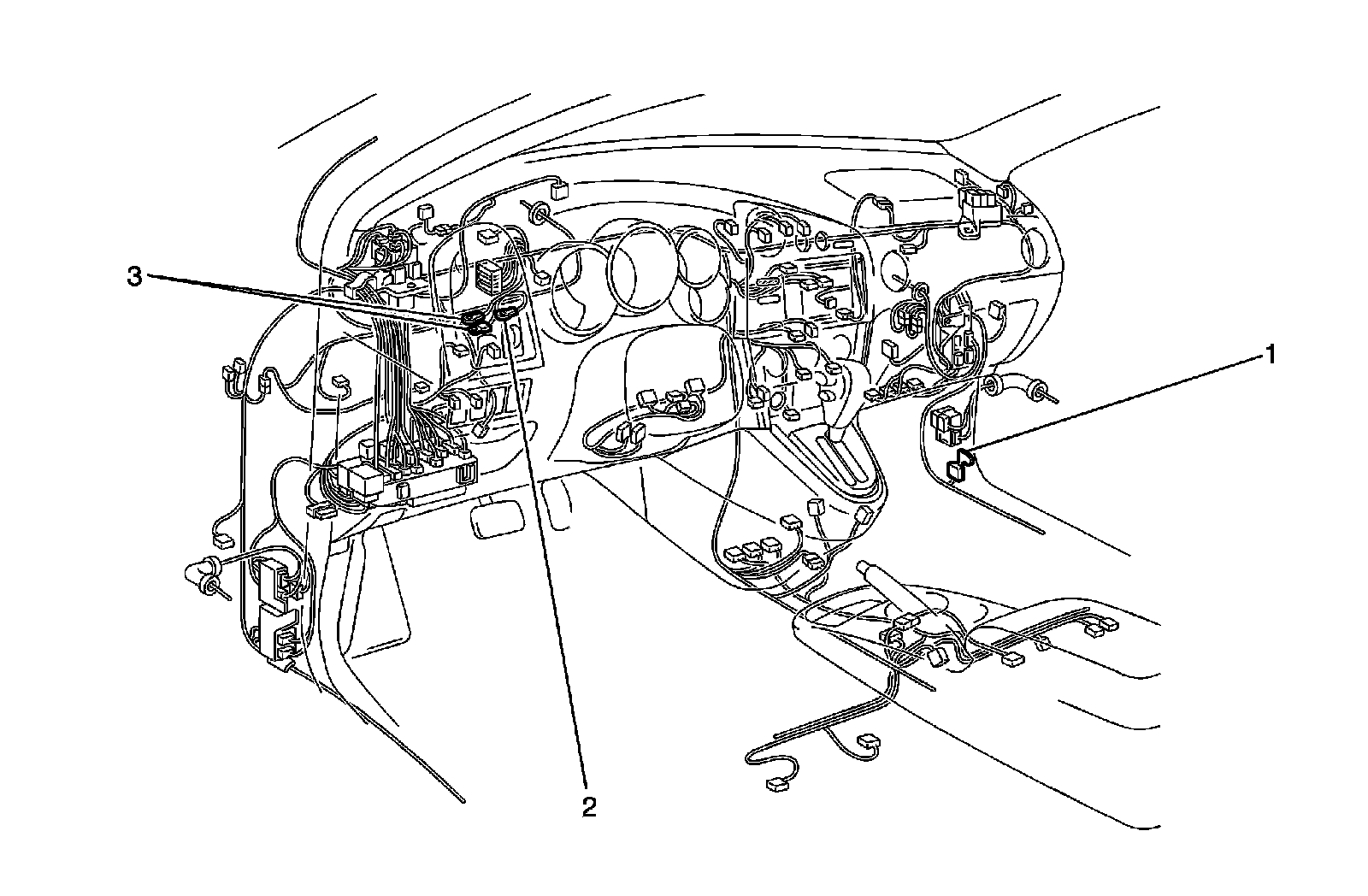

Instrument Panel Ground Locations
1 - G201
2 - G202
3 - G200

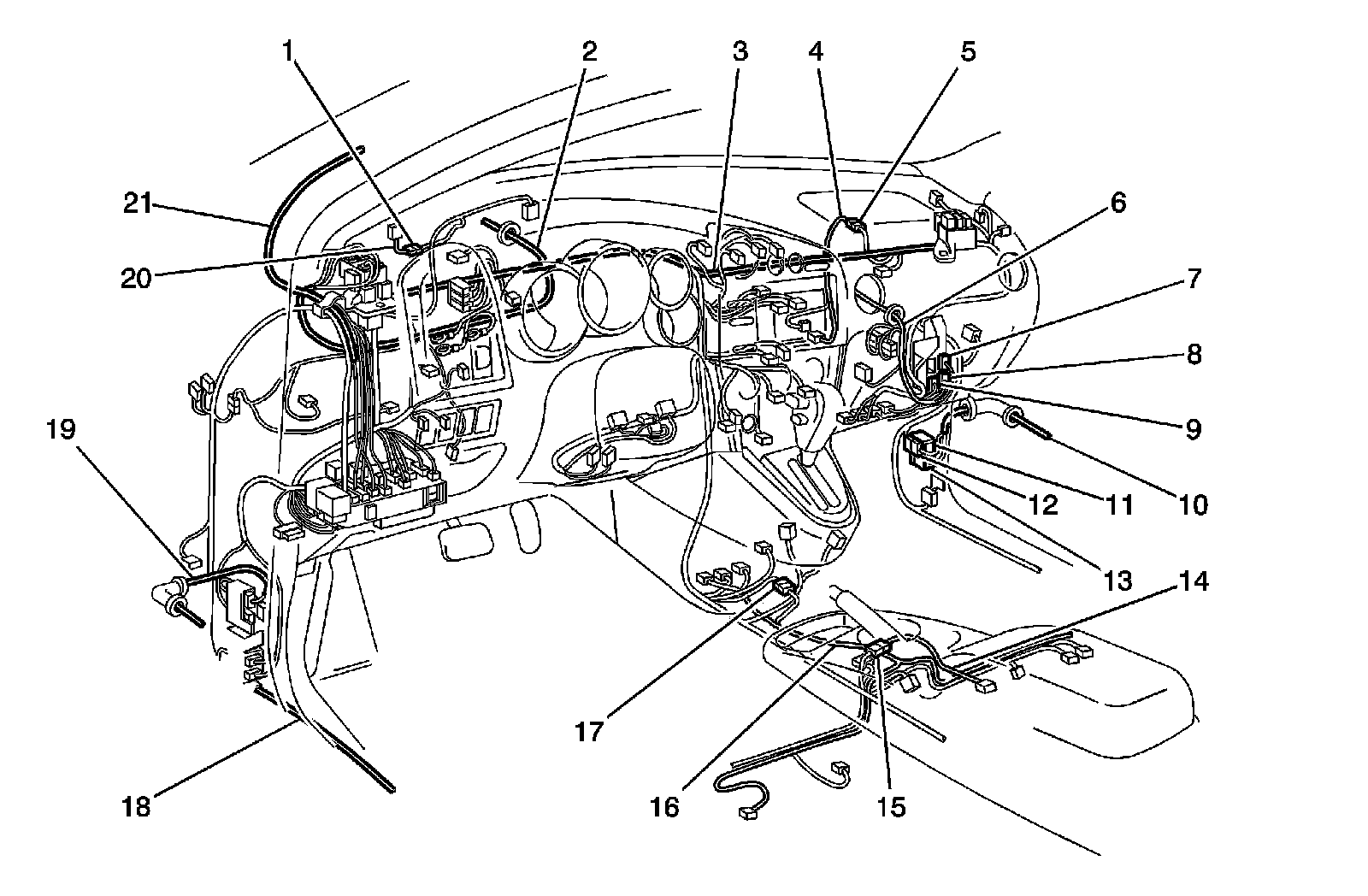

Instrument Panel Inline Connector Locations
1 - C211
2 - Engine Compartment Harness
3 - Instrument Panel Harness
4 - A/C Harness
5 - C207
6 - Engine Harness
7 - C208
8 - C209
9 - C210
10 - RH Front Door Harness
11 - C218
12 - C227
13 - C217
14 - Console Harness
15 - C221
16 - Instrument Panel Harness No. 3
17 - C224
18 - Floor Harness
19 - LH Front Door Harness
20 - Instrument Panel Harness No. 4
21 - Roof Harness

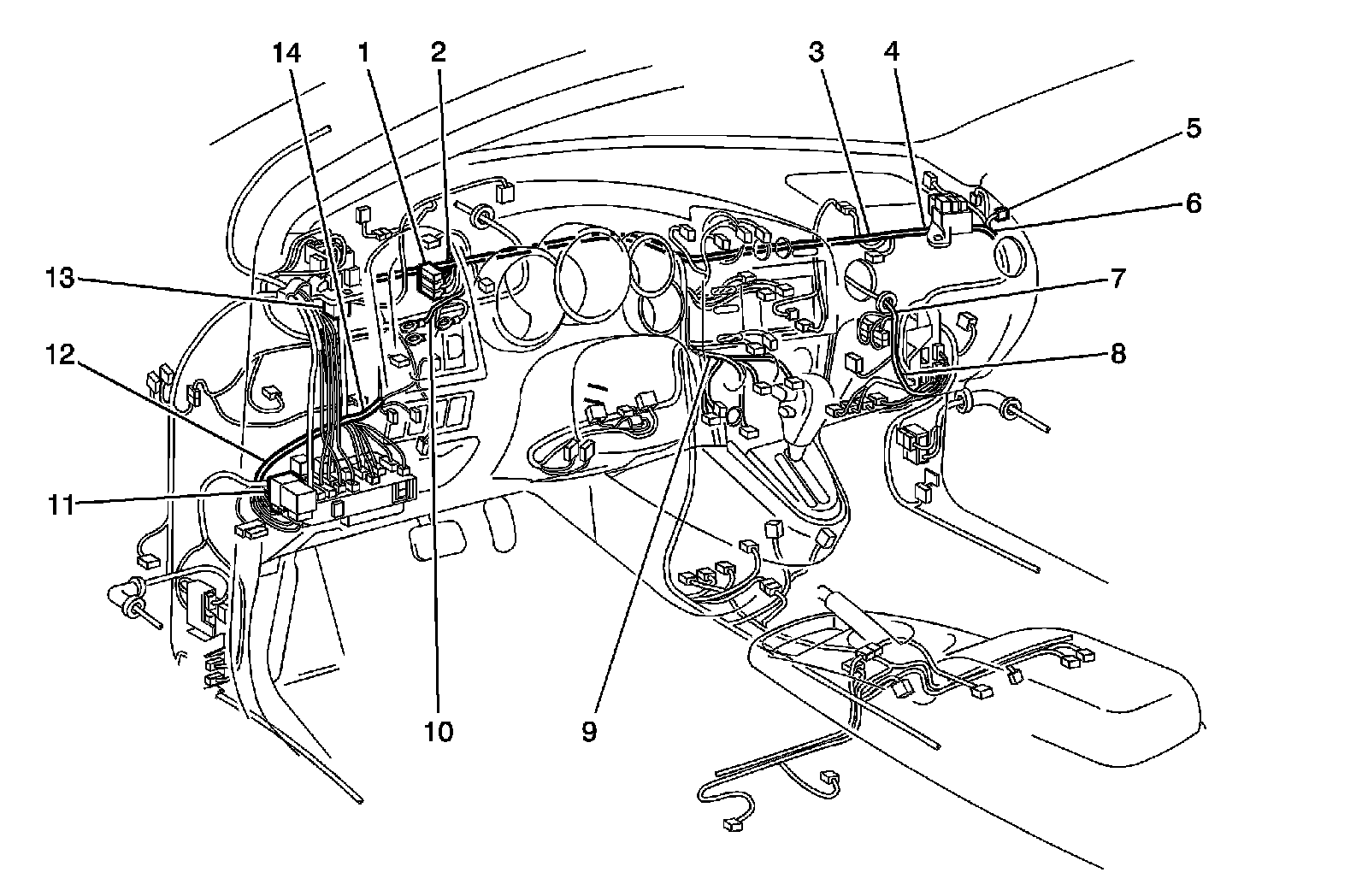

Instrument Panel Splice Locations
1 - S111
2 - S214
3 - S223
4 - S110
5 - S123
6 - S111
7 - S100
8 - S104
9 - S202
10 - S120
11 - S210
12 - S217
13 - S211
14 - S121

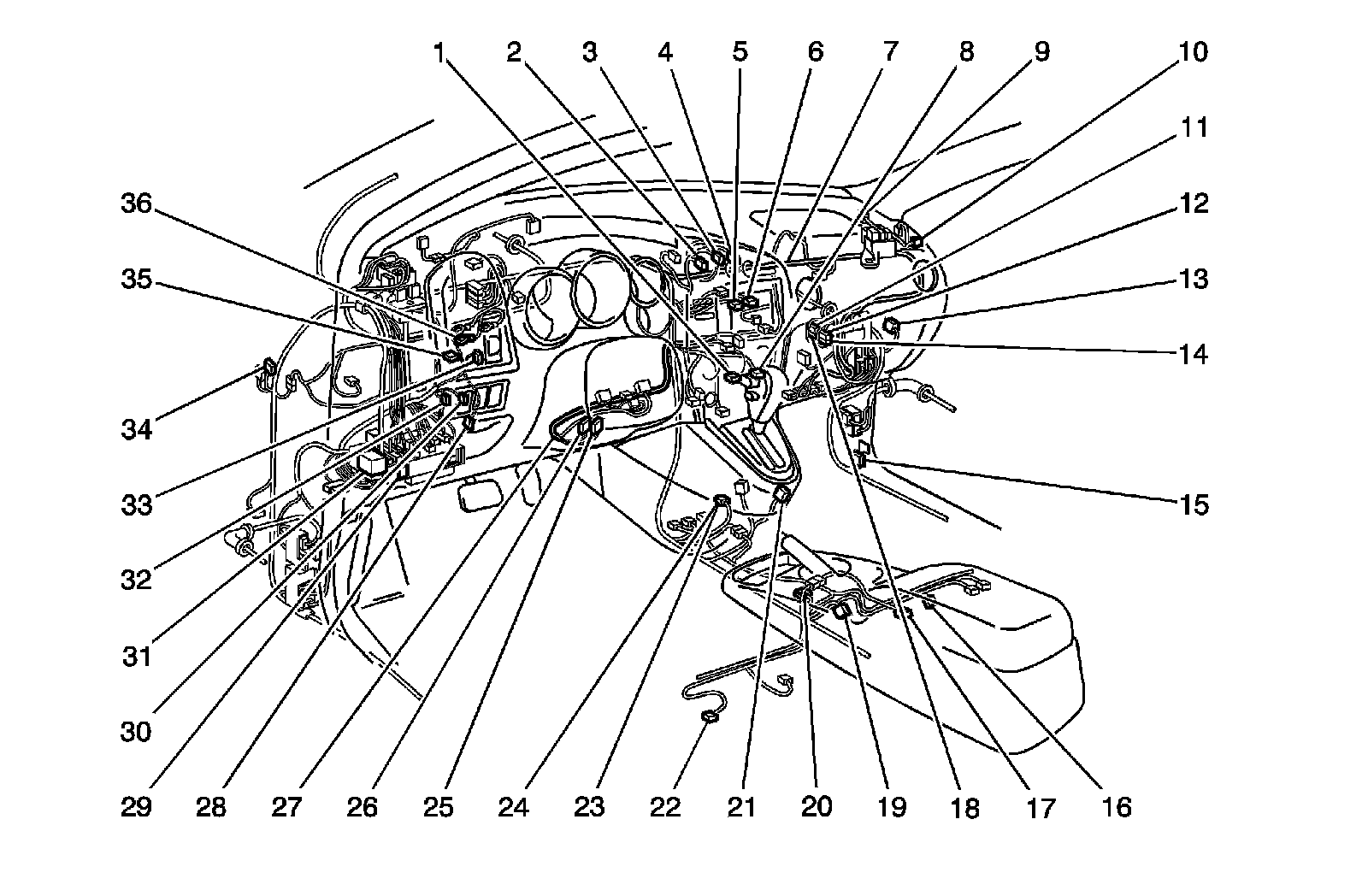

Instrument Panel Connector Locations - 1 of 2
1 - Accessory Power Receptical Switch
2 - Hazard Switch
3 - Rear Defogger Switch
4 - Front Passenger Seat Belt Warning Light
5 - Radio
6 - Radio
7 - Instrument Panel Harness
8 - Accessory Power Receptical (115V)
9 - Glass Breakage Sensor
10 - Starter Cut Relay
11 - SP107 C1
12 - SP107 C2
13 - TVIP ECU
14 - Junction Connector
15 - Junction Connector
16 - Heated Oxygen Sensor 2 (LV6 w/AWD)
17 - Rear Power Outlet
18 - Junction Connector
19 - Parking Brake Switch
20 - Heated Oxygen Sensor 2 (LNK)
21 - Shift Lock Control Module
22 - Voltage Inverter
23 - Heated Oxygen Sensor 1 (LNK)
24 - Heated Oxygen Sensor (LV6 2WD)
25 - Ignition Switch
26 - Unlock Warning Switch
27 - I/P Harness
28 - Stop Light Switch
29 - Integration Relay
30 - Security Indicator
31 - Turn Signal Flasher Relay
32 - Liftgate Opener Switch
33 - Dimmer Switch
34 - Rear Wiper Relay 1
35 - Power Mirror Switch
36 - Junction Connector

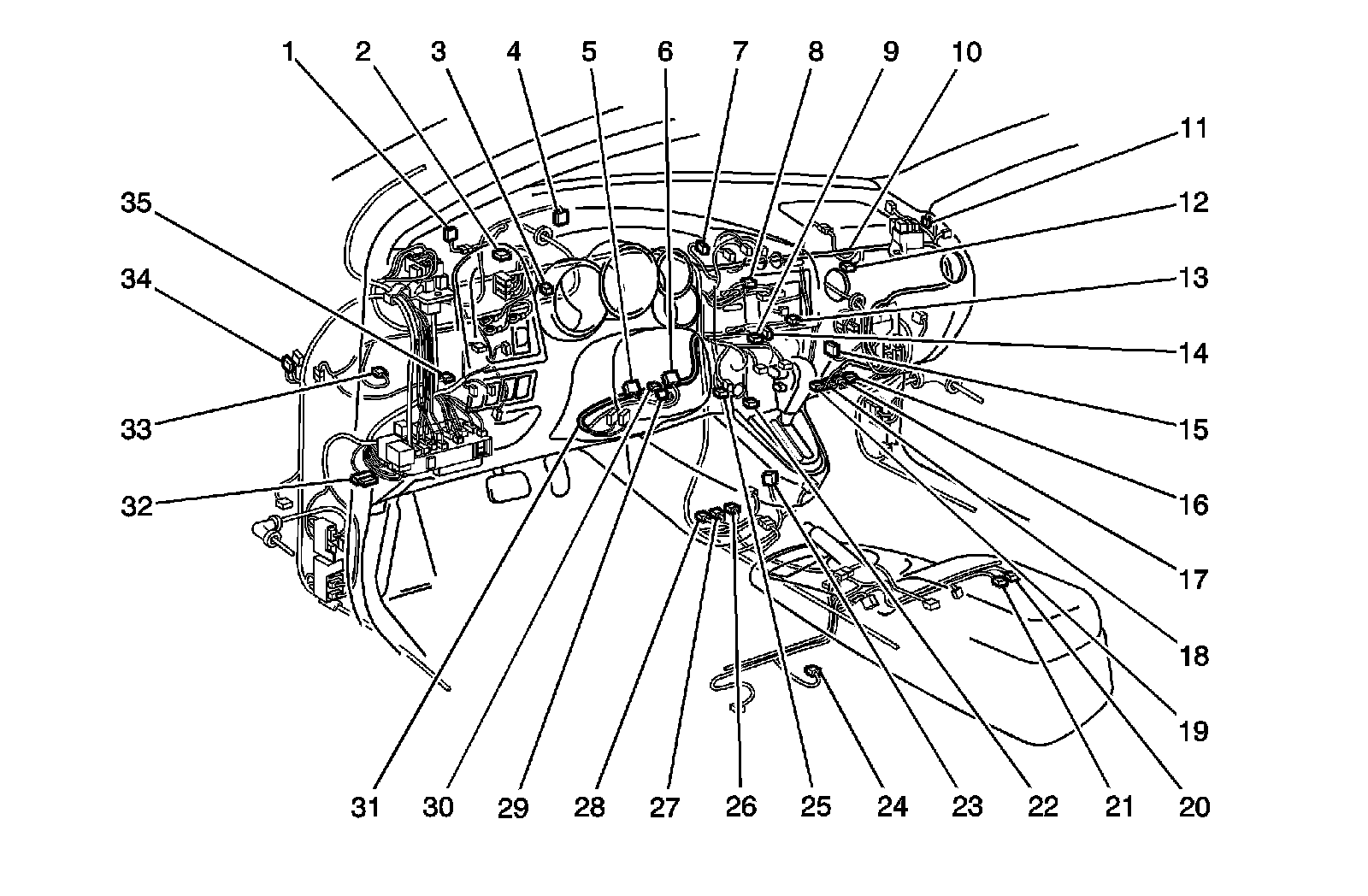

Instrument Panel Connector Locations - 2 of 2
1 - Automatic Light Control Sensor
2 - Cruise Control Electronic Control Module
3 - Daytime Running Light Relay
4 - Instrument Cluster
5 - Multifunction Switch
6 - Multifunction Switch
7 - A/C Control Switch
8 - Antenna Amplifier
9 - Blower Switch
10 - Instrument Panel Harness
11 - Air Inlet Control Servo Motor
12 - I/P Airbag Module
13 - Blower Resistor
14 - Defroster Mode Switch
15 - Blower Motor
16 - Powertrain Control Module 1
17 - Powertrain Control Module 2
18 - Powertrain Control Module 3
19 - Powertrain Control Module 4
20 - CD Changer
21 - CD Changer
22 - Cigar Lighter Illumination
23 - O/D Switch
24 - ABS Deceleration Sensor
25 - Power Outlet
26 - Sensing and Diagnostic Module 1
27 - Sensing and Diagnostic Module 2
28 - Sensing and Diagnostic Module 3
29 - Steering Wheel Airbag Module
30 - Multifunction Switch
31 - Harness
32 - Data Link Connector
33 - Cruise Control Clutch Switch
34 - Rear Wiper Relay 1 Diode
35 - Clutch Start Switch
