Blower Motor Resistor: Service and Repair

Blower Motor Resistor Replacement

Removal Procedure

1. Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement (Service and Repair).




2. Disconnect the blower motor resistor electrical connector.

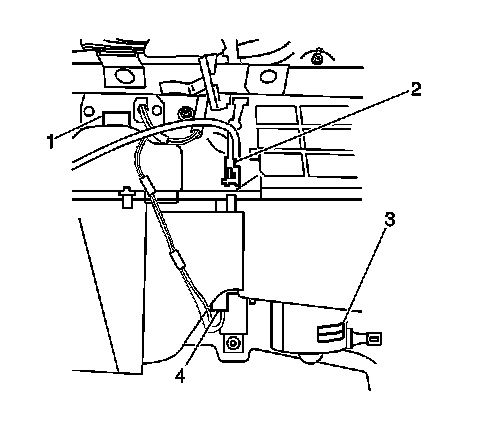

3. Remove the 2 screws and the blower motor resistor (4) from the blower case.



Installation Procedure





1. Install the blower motor resistor (4) to the blower case. Secure with the 2 screws.
2. Connect the blower motor resistor electrical connector.
3. Install the I/P compartment. Refer to Instrument Panel Compartment Replacement (Service and Repair).
