Audible Warnings Schematics

Audible Warnings Schematics

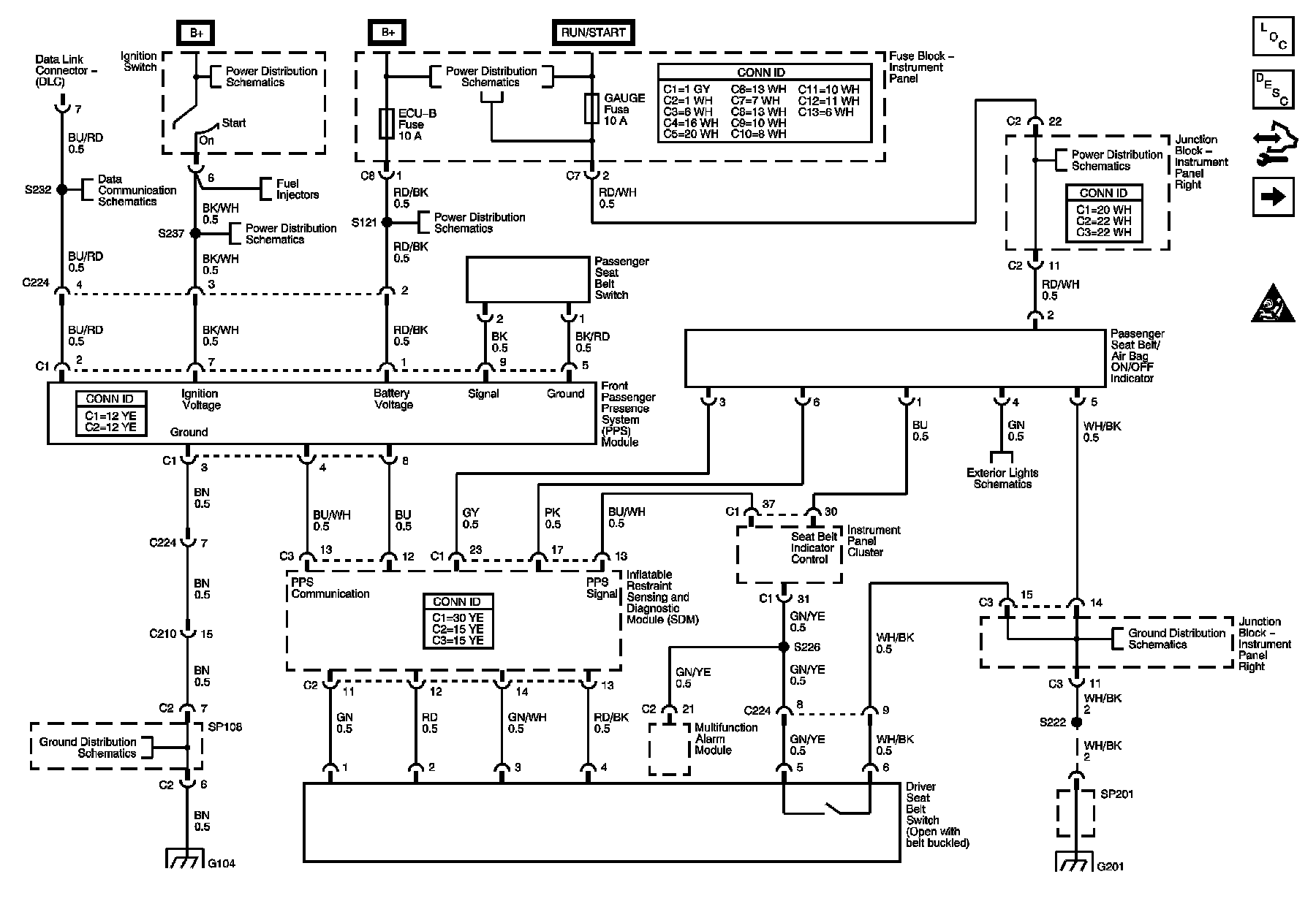

Seat Belt Warning Indicator

Door Open Warning Indicator

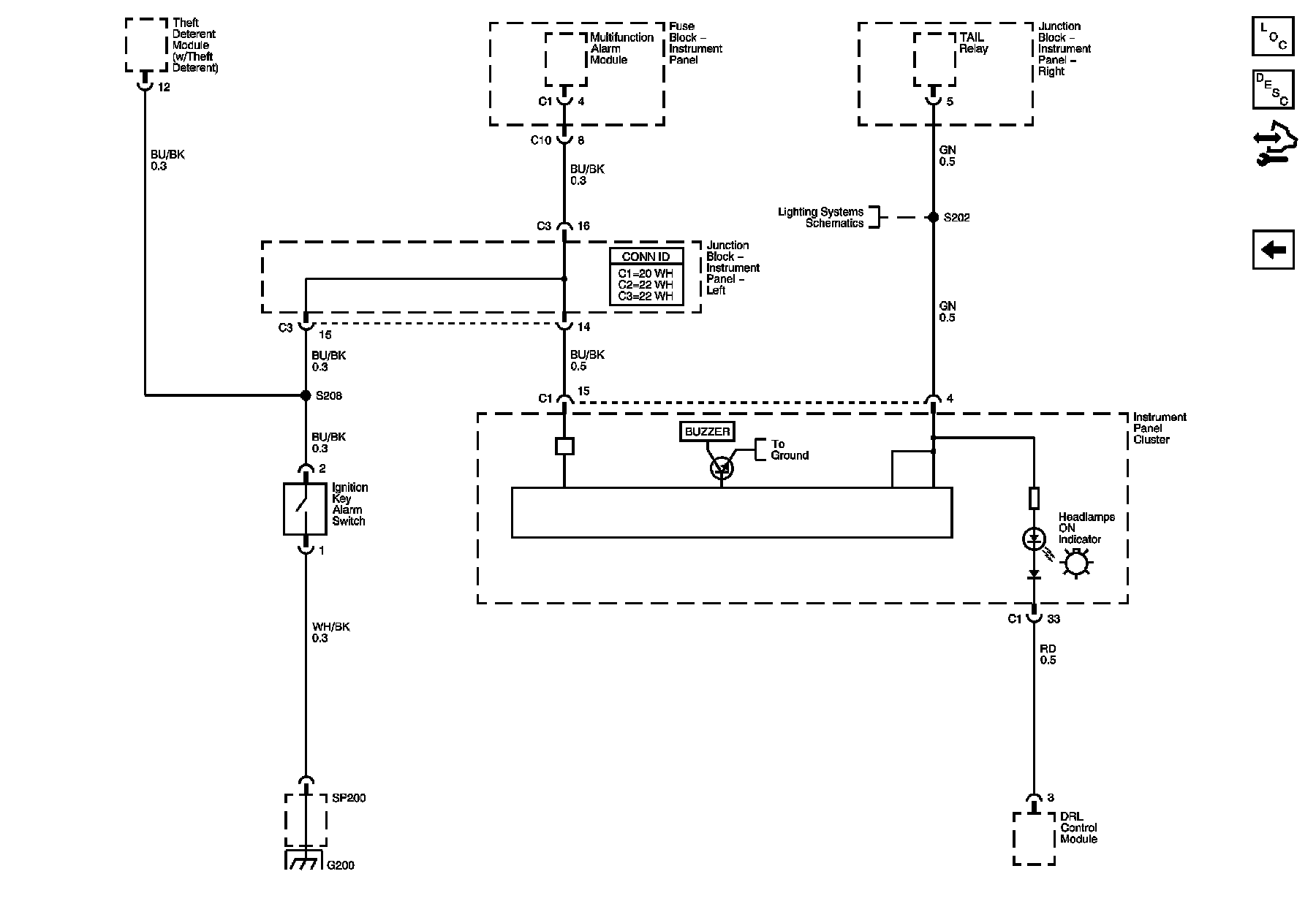

Headlamps ON, Ignition Key, Reverse Warning Indicators
