Instrument Cluster Schematics
Instrument Cluster Schematics

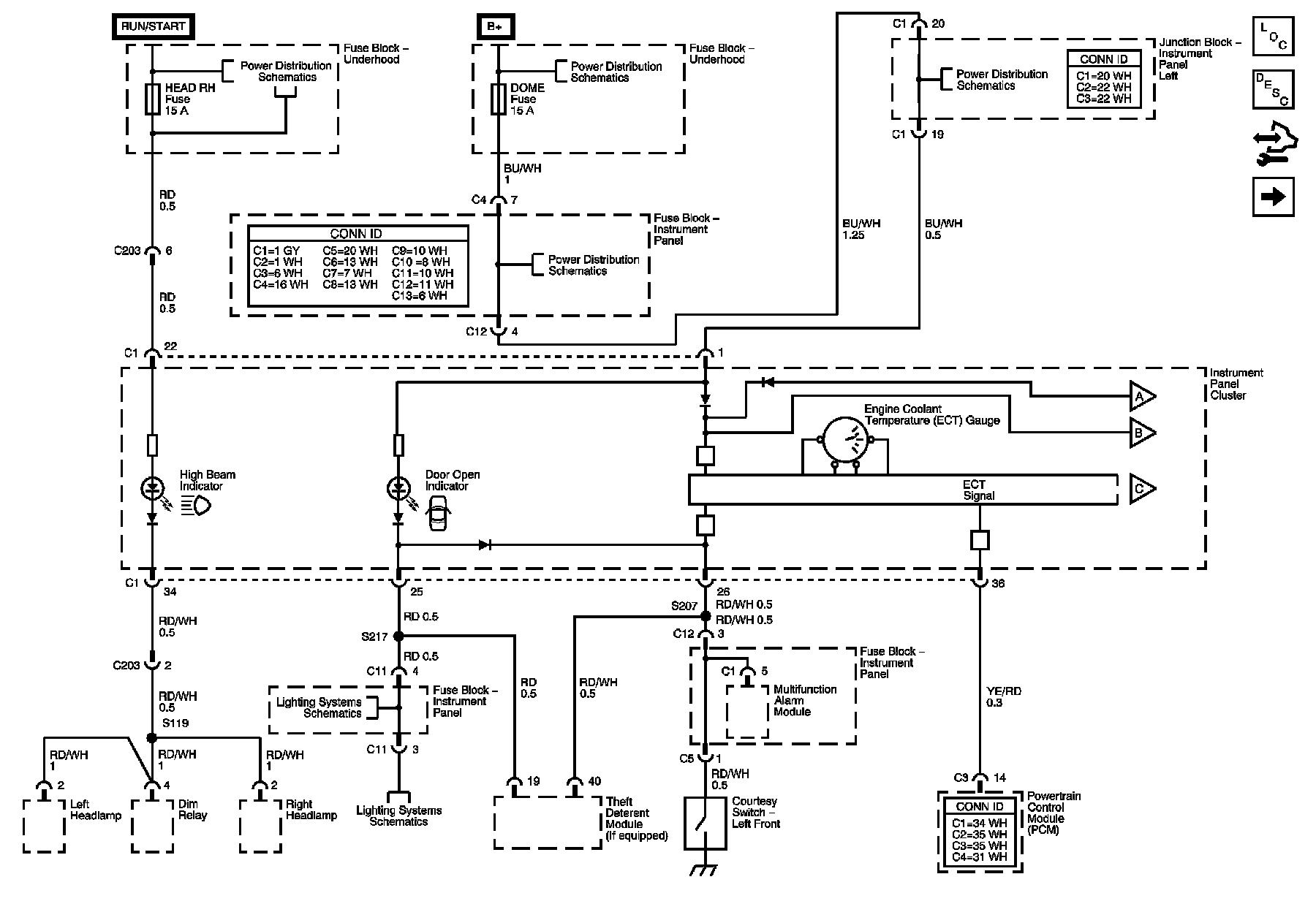

High Beam Door Open, Engine Coolant Temperature (ECT) Indicators

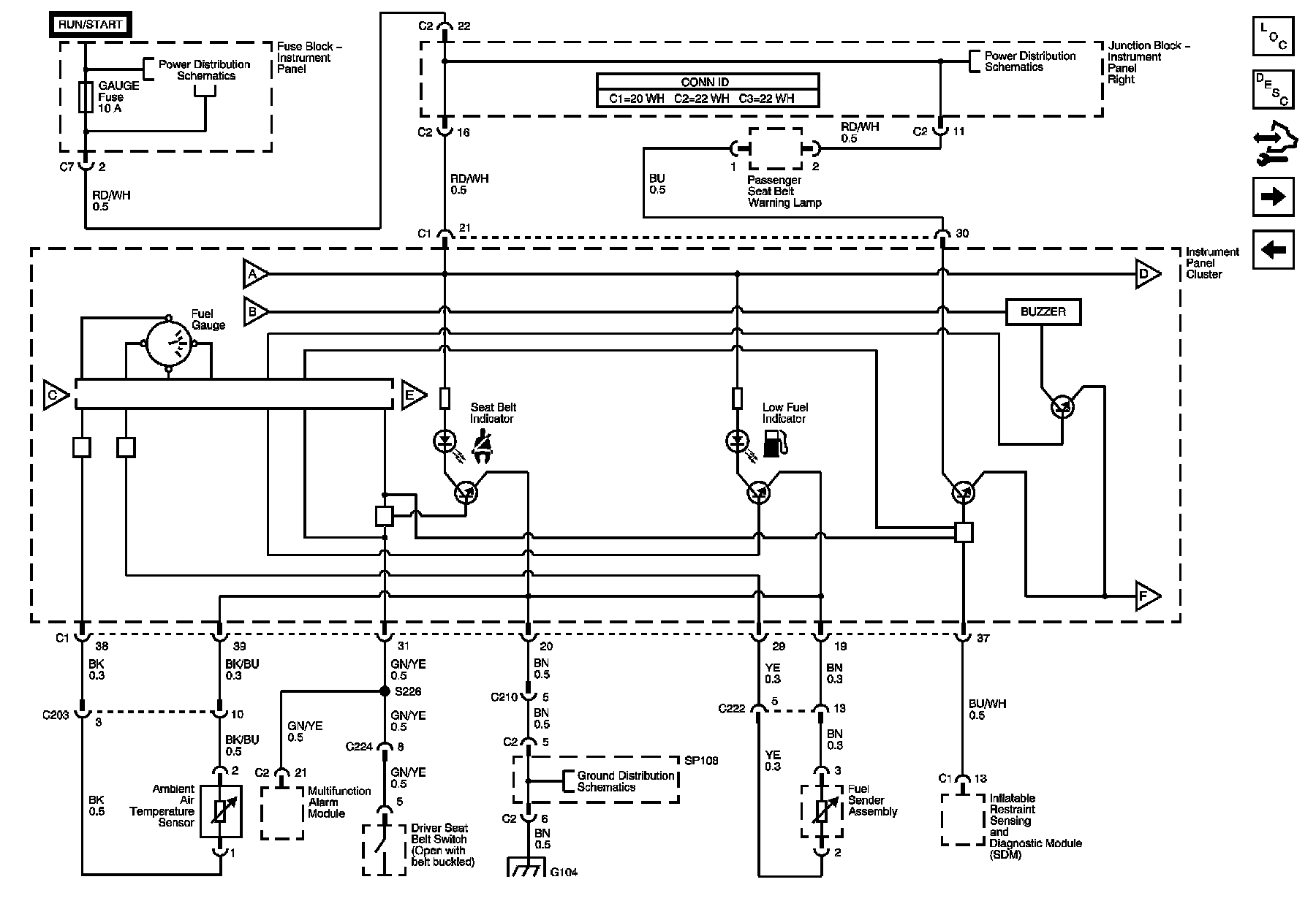

Fuel Gage, Seat Belt, Low Fuel, Passenger Seat Belt Indicators
Low Washer Fluid Level, Oil Pressure Indicators, IPC Illumination
Charge, Air Bag, Malfunction, O/D OFF, Cruise Indicators

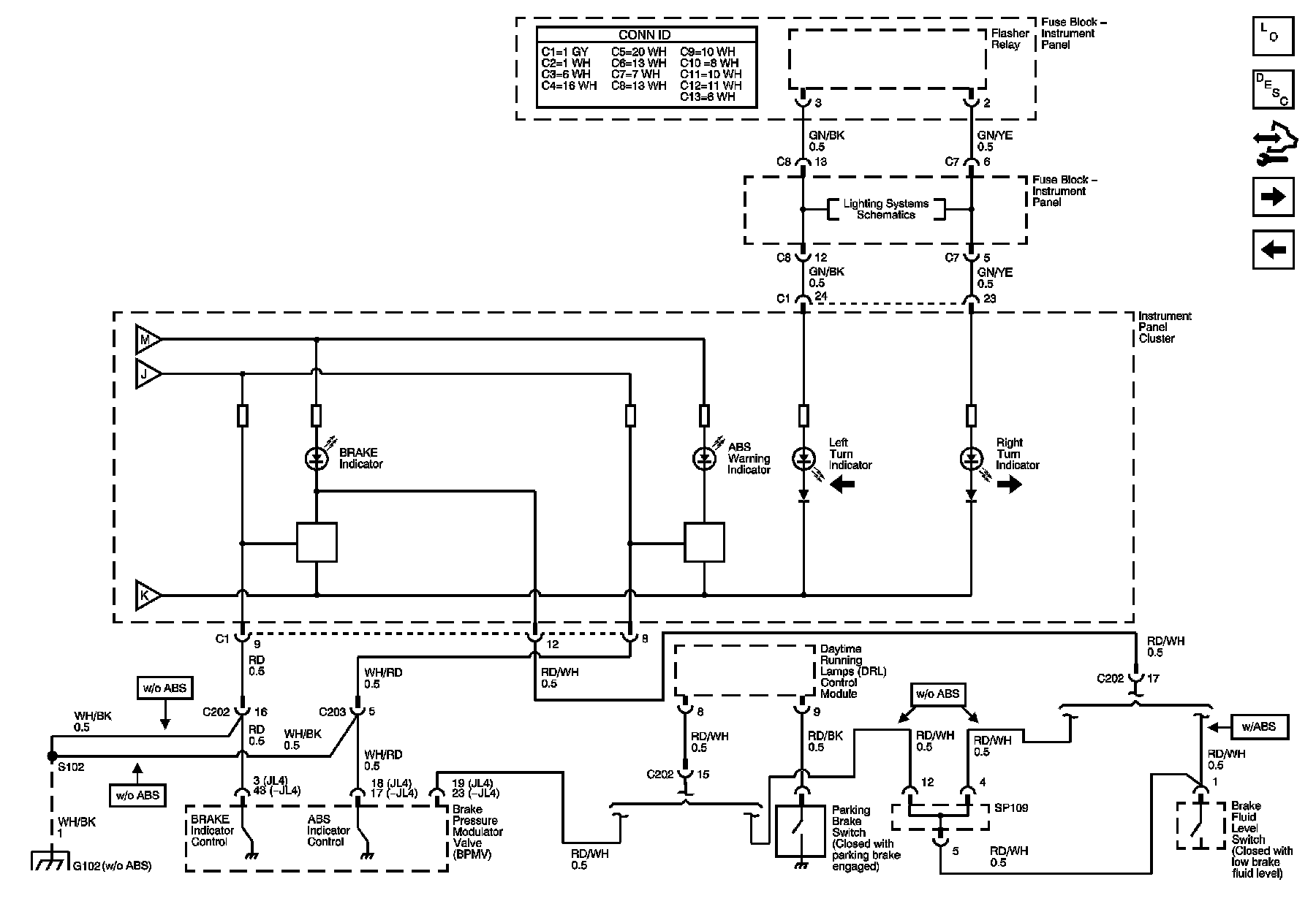

Brake, ABS, Turn Indicators
Headlamps ON Indicator, Crank Signal, Vehicle Speed Signal
