Connector Views



Tire Pressure Monitoring System Connector End Views

Tire Pressure Monitoring Module

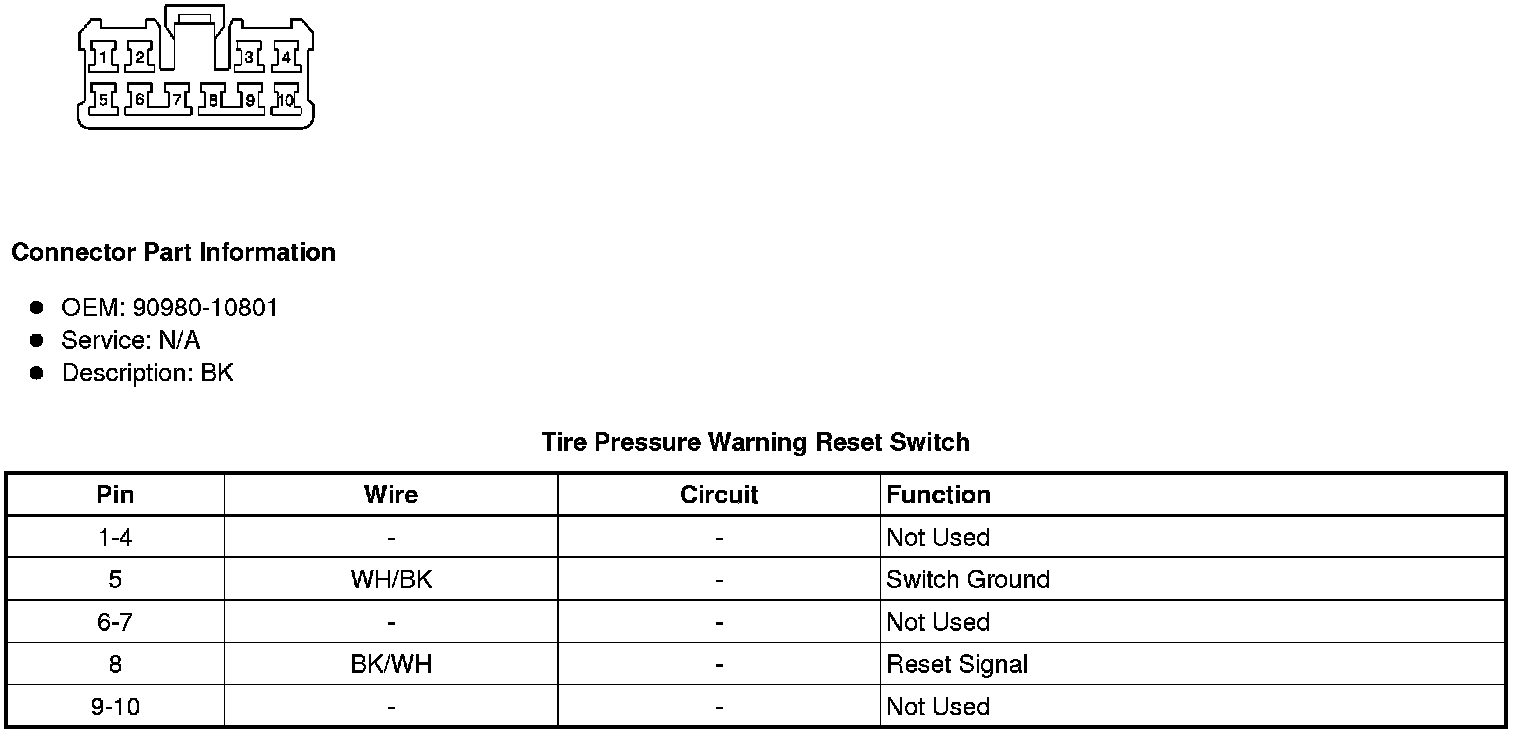

Tire Pressure Warning Reset Switch
