Daytime Running Lamp: Service and Repair

Daytime Running Lamp (DRL) Ambient Light Sensor Replacement

Removal Procedure

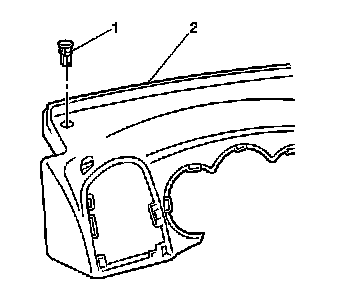

1. Using a flat bladed tool, release the 2 retaining tabs that secure the ambient light sensor (1).
2. Disconnect the ambient light sensor electrical connector.
3. Remove the ambient light sensor (1) from the I/P assembly (2).



Installation Procedure





1. Connect the electrical connector to the ambient light sensor (1).
2. Install the ambient light sensor (1) to the I/P assembly (2). Ensure that the retaining tabs are fully engaged.
