Lighting and Horns
>>
Horn
>>
Diagrams
>>
Connector Views
Connector Views
Horn
Connector End Views

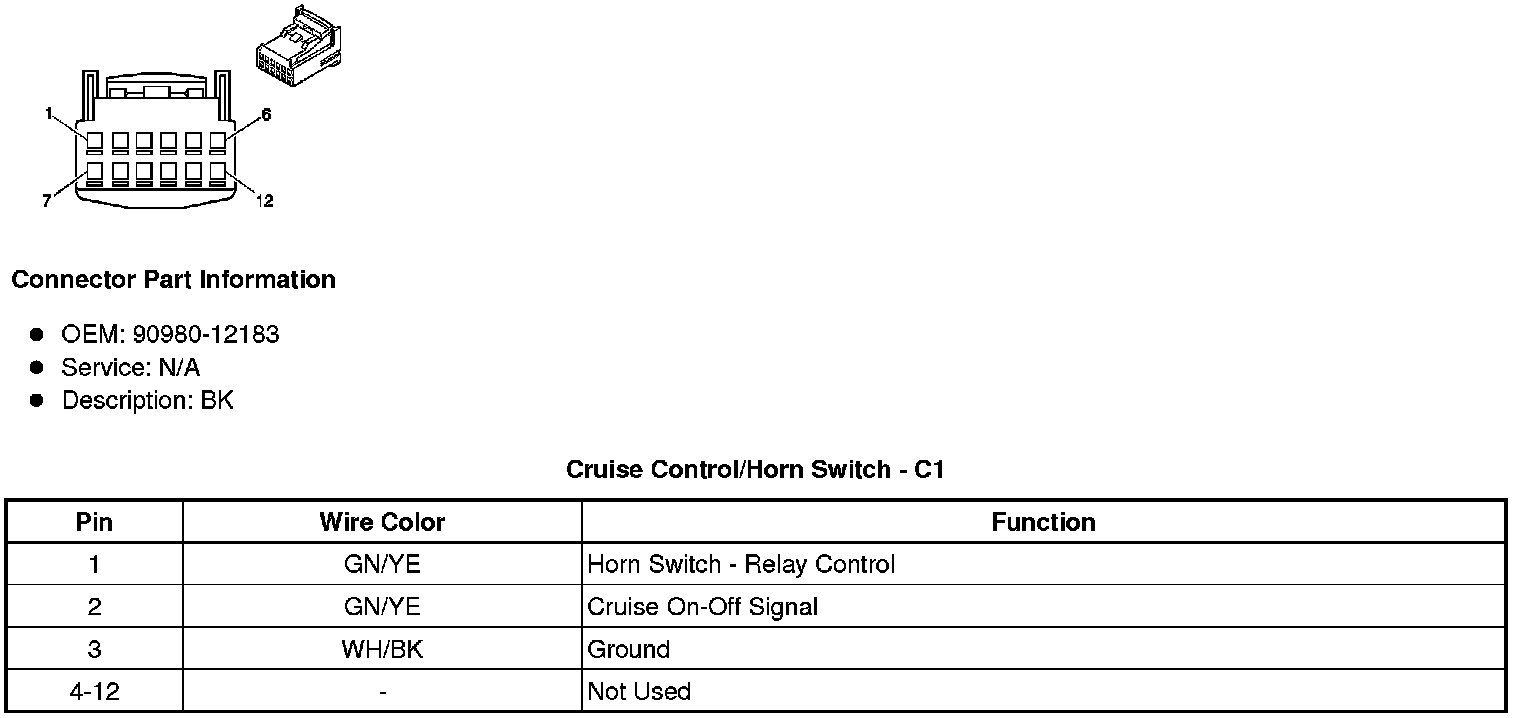

Cruise Control/
Horn Switch
- C1

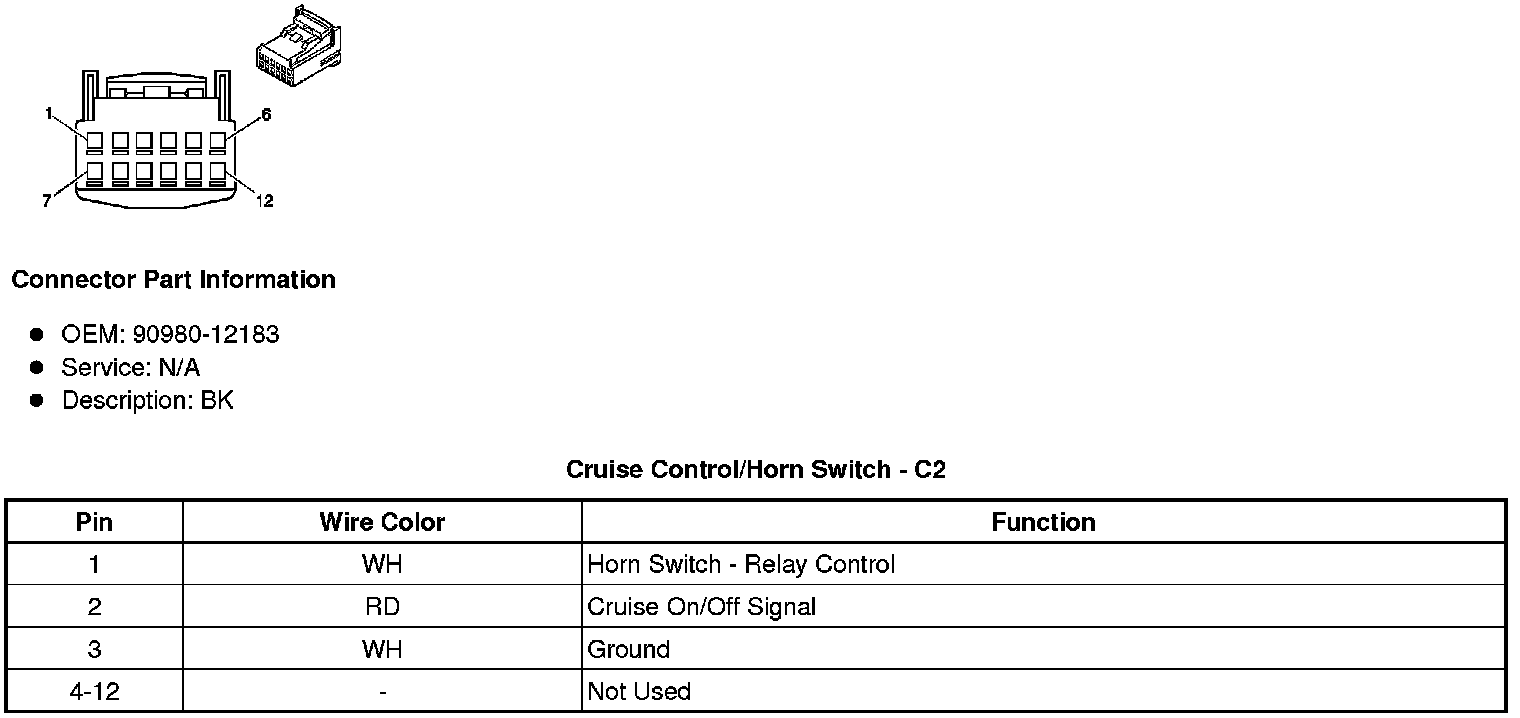

Cruise Control/
Horn Switch
- C2
