Electrical Diagrams



Wiper/Washer Schematics

Front Wiper System

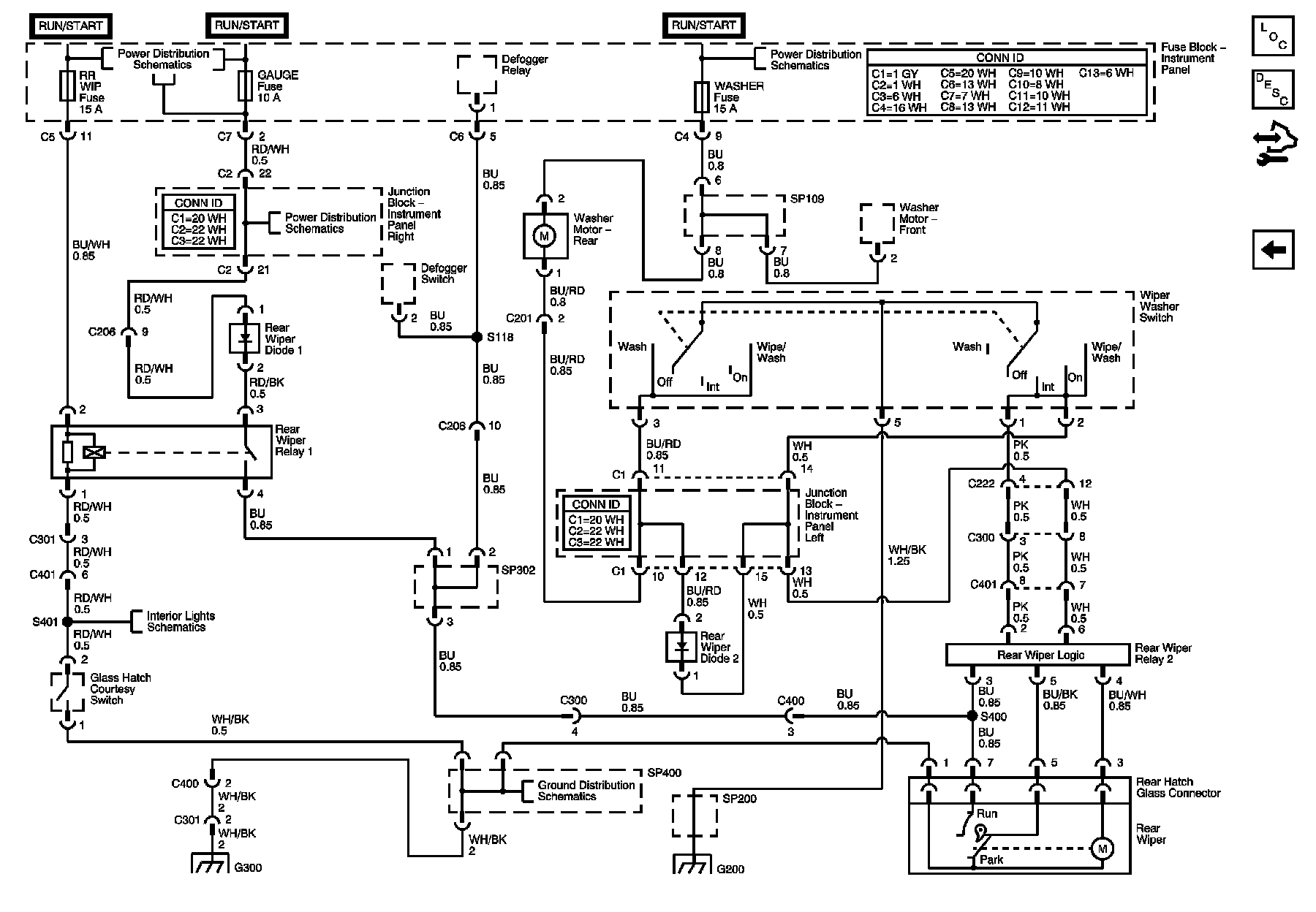

Rear Wiper System with Prewash Function
