Strut, Strut Component, or Spring Replacement
Strut, Strut Component, or Spring Replacement
Special Tools
* J-44626 - Oxygen Sensor 22 mm Socket
* J-45400 - Strut Spring Compressor
Disassembly Procedure
1. Remove the strut assembly. Refer to Strut Assembly Replacement (Front Suspension Strut).
2. Use paint in order to mark the position of the spring relative to the strut assembly-to-knuckle bracket.
3. Install the strut assembly to the J-45400 - Strut Spring Compressor or equivalent. Ensure the hooks are seated on the spring properly.
4. Compress the spring with the J-45400 - Compressor or equivalent.
Caution: Do not allow the absorber rod to rotate during disassembly/reassembly. Use hand tools to keep the absorber rod from rotating. If air tools are used, and the rod is allowed to rotate, damage to the absorber may occur.
5. Use a wrench in order to hold the threaded piston rod while removing the piston rod nut with the J-44626 - Oxygen Sensor 22 mm Socket or equivalent.

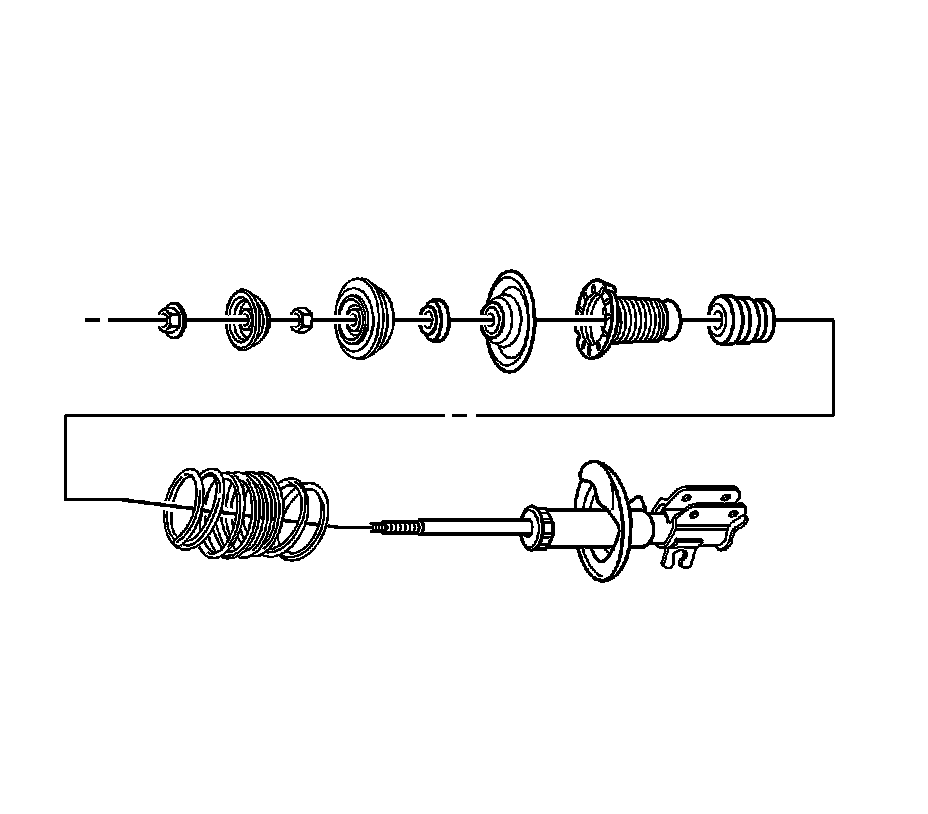

6. Remove the following components from the strut:
* The strut mount
* The strut mount bearing
* The spring upper seat
* The strut cartridge upper cover
* The bumper stop
* The coil spring
Assembly Procedure
1. Install the spring to the J-45400 - Compressor or equivalent. Ensure the hooks are seated on the spring properly.
2. Compress the spring using the J-45400 - Compressor or equivalent.
Note: Locate the spring to the original position on the spring seat.
3. Align the match marks and install the spring to the strut.
4. Install the following components to the strut:
* The bumper stop
* The strut cartridge upper cover
* The spring upper seat
* The strut mount bearing
* The strut mount
Caution: Refer to Fastener Caution (Fastener Caution).
5. Use a wrench in order to hold the threaded piston rod while installing the piston rod nut with the J-44626 - Socket or equivalent. Tighten the piston rod nut to 60 Nm (44 lb ft).
6. Remove the strut assembly from the J-45400 - Compressor or equivalent.
7. Install the strut assembly to the vehicle. Refer to Strut Assembly Replacement (Front Suspension Strut).
