S401
S401

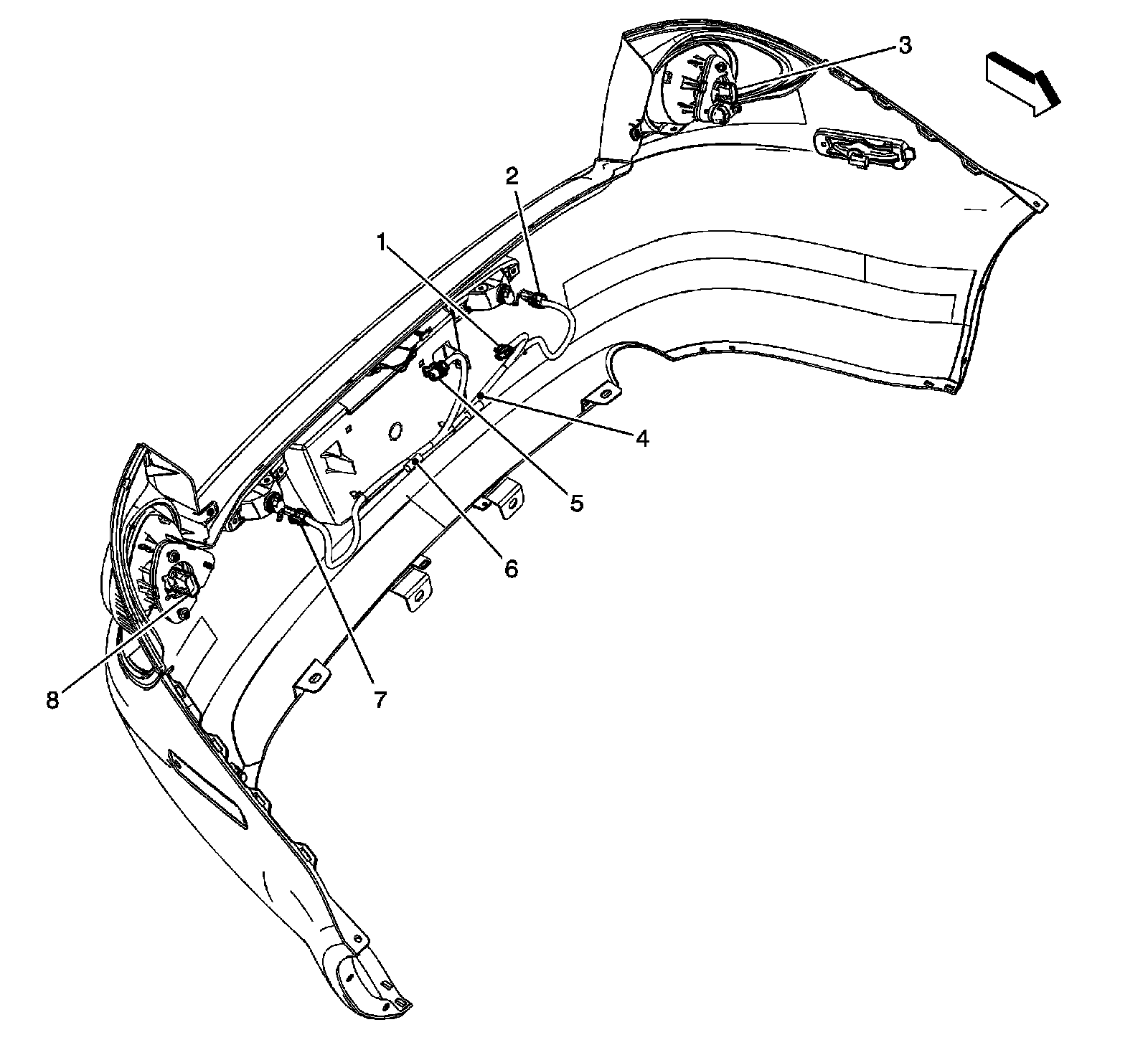

Harness Routing Views
Rear Fascia (G5)
1
- C497
2
- C496
3
- C492
4
- S401
5
- C494
6
- S402
7
- C495
8
- C493
