Seat Temperature Control Module: Service and Repair

Front Seat Heater Control Module Replacement

Removal Procedure

Warning: Refer to SIR Warning (SIR Warning).

1. Remove the front seat. Refer to Front Seat Replacement - Bucket (Front Seat Replacement - Bucket).




2. Disconnect the electrical connection from the heated seat control module.

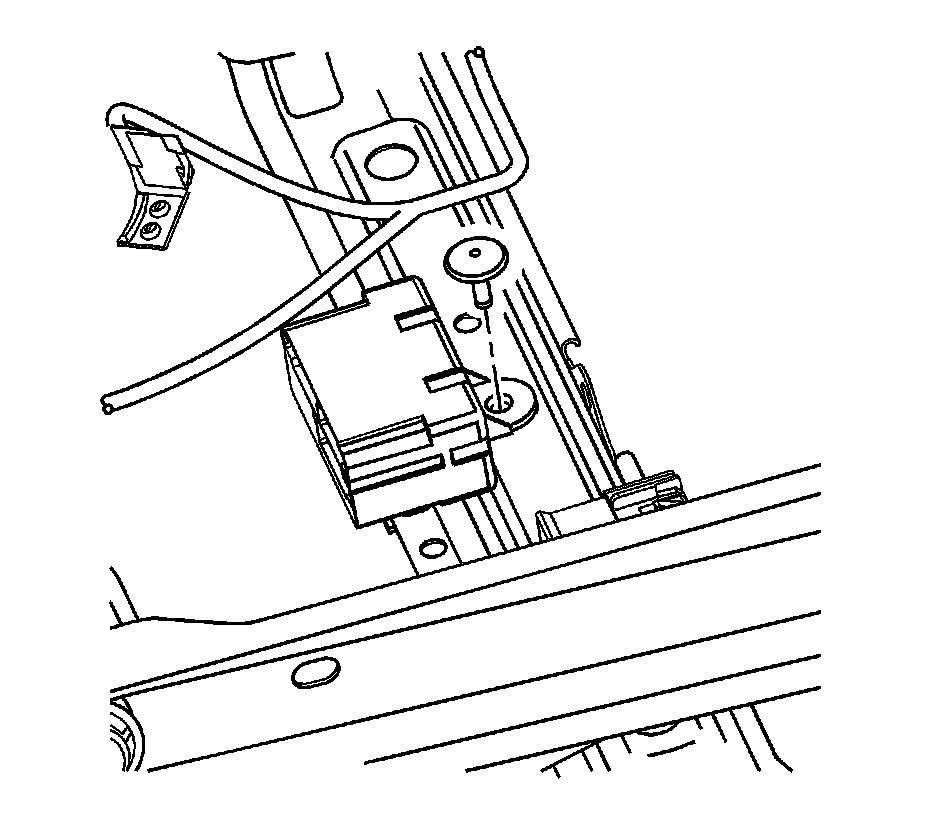

3. Remove the fastener from the heated seat control module.




4. Remove the heated seat control module.

Installation Procedure




1. Install the heated seat control module.




2. Install the fastener to the heated seat control module.




3. Connect the electrical connection to the heated seat control module.
4. Install the front seat. Refer to Front Seat Replacement - Bucket (Front Seat Replacement - Bucket).
5. Verify that the heated seat works correctly.
6. Refer to Control Module References (Programming and Relearning) for programming and setup information.
