Home >> Pontiac >> 2009 >> G6 L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Injector

Fuel Injector




Component Connector End Views

Fuel Injector 1 (LE5)

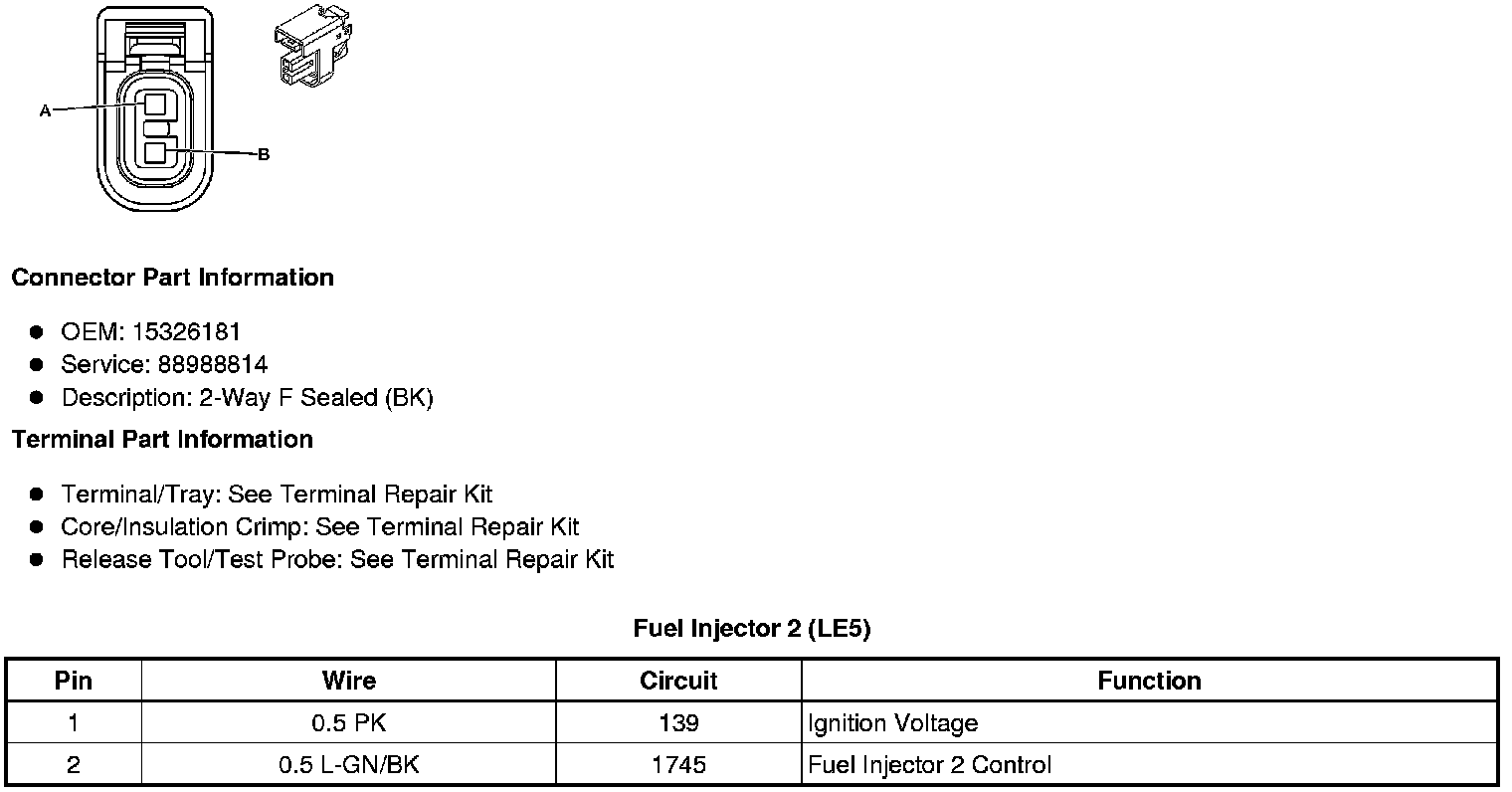

Fuel Injector 2 (LE5)






Fuel Injector 3 (LE5)






Fuel Injector 4 (LE5)
