Pedal Positioning Motor
Pedal Positioning Motor

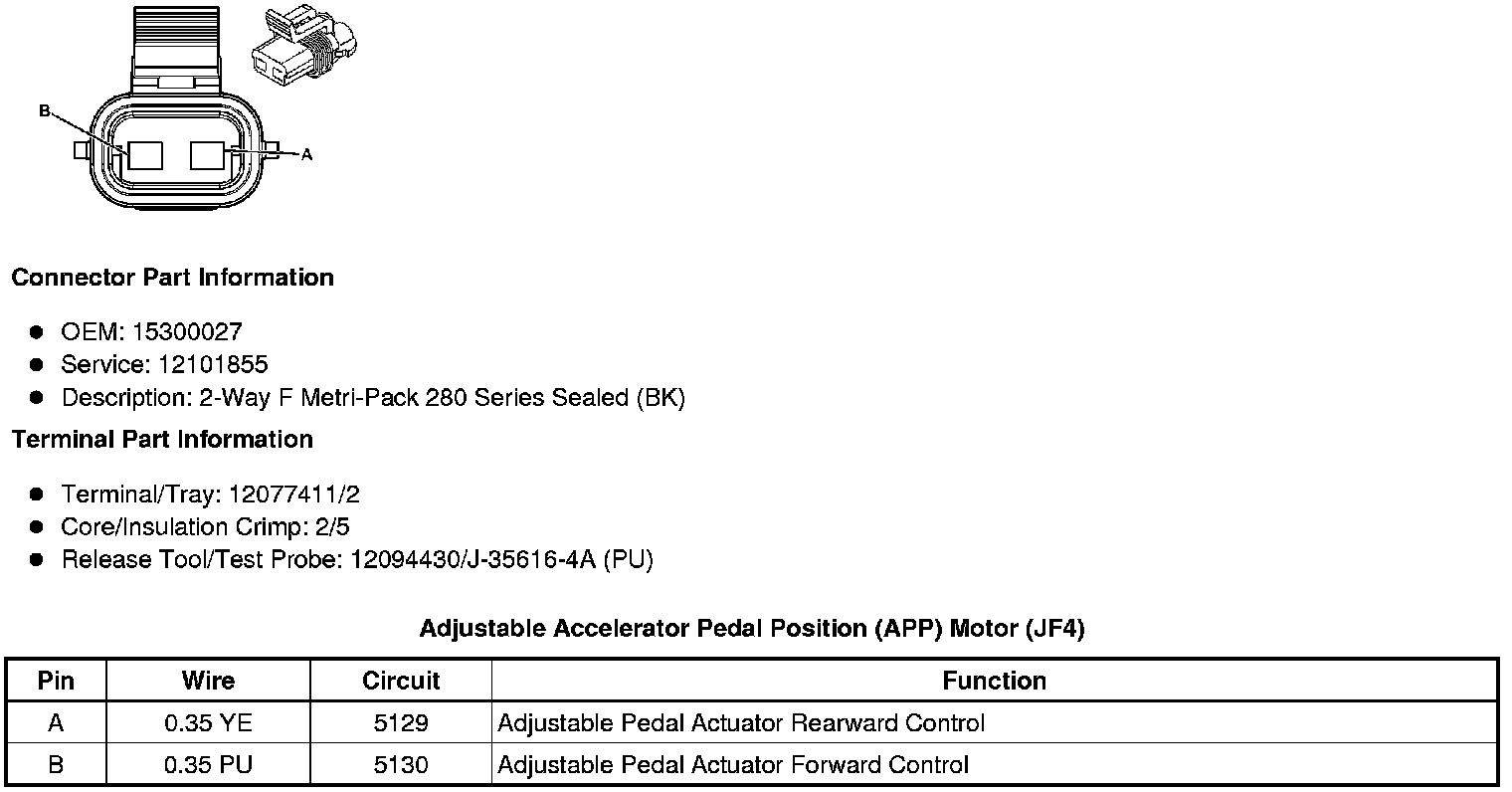

Component Connector End Views
Adjustable Accelerator Pedal Position (APP) Motor (JF4)
