Radio/Navigation System Schematics




Radio/Navigation System Schematics

Radio w/UZ6





Radio w/U85 Audio Signals





Radio w/U85 (Coupe/Sedan)





Radio w/U85 (Convertible)





Digital Radio Receiver

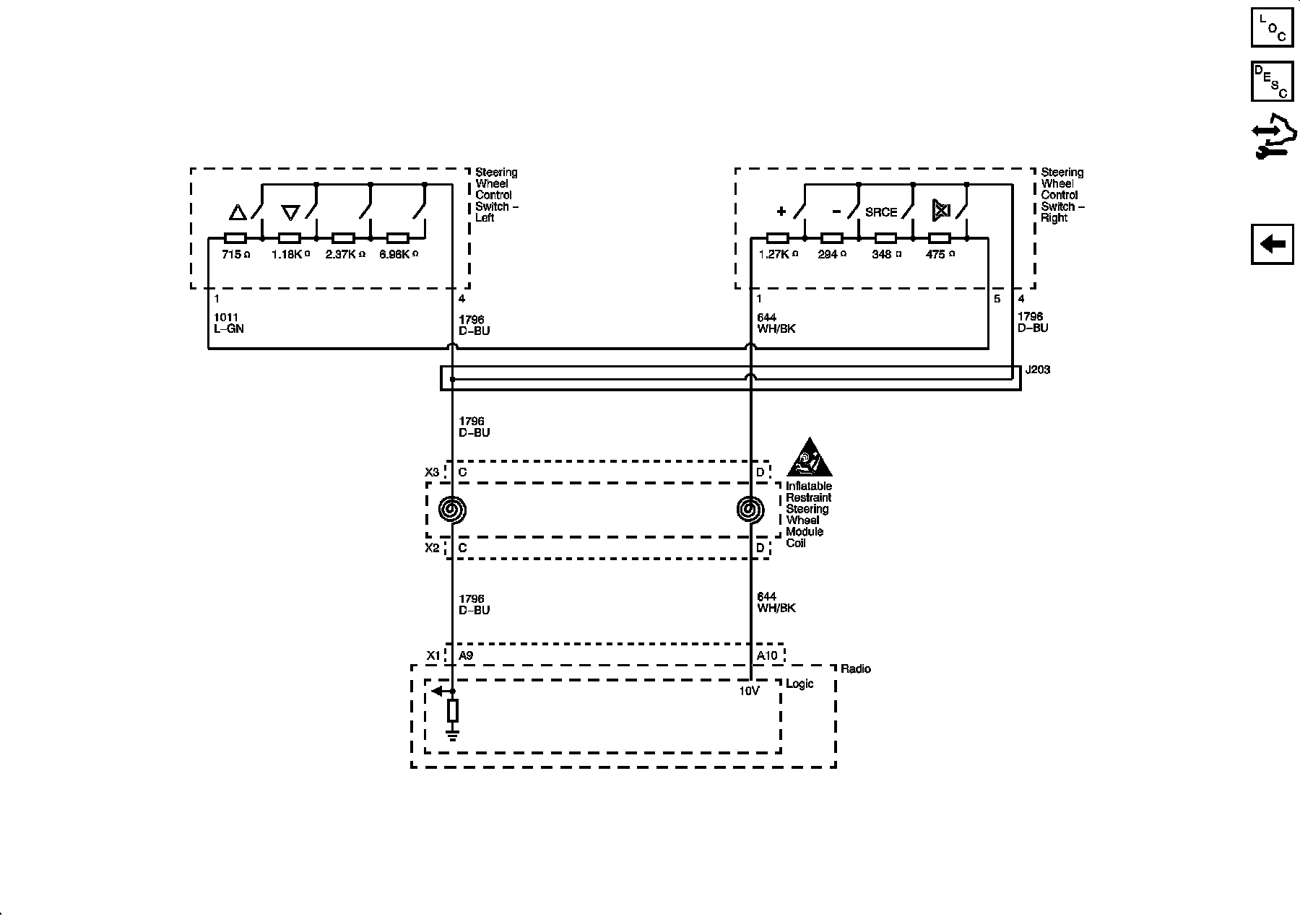

Redundant Radio Controls - 3 Spoke





Redundant Radio Controls - 4 Spoke
