Map Light: Diagrams




Component Connector End Views

Dome/Reading Lamps (without C3Y)

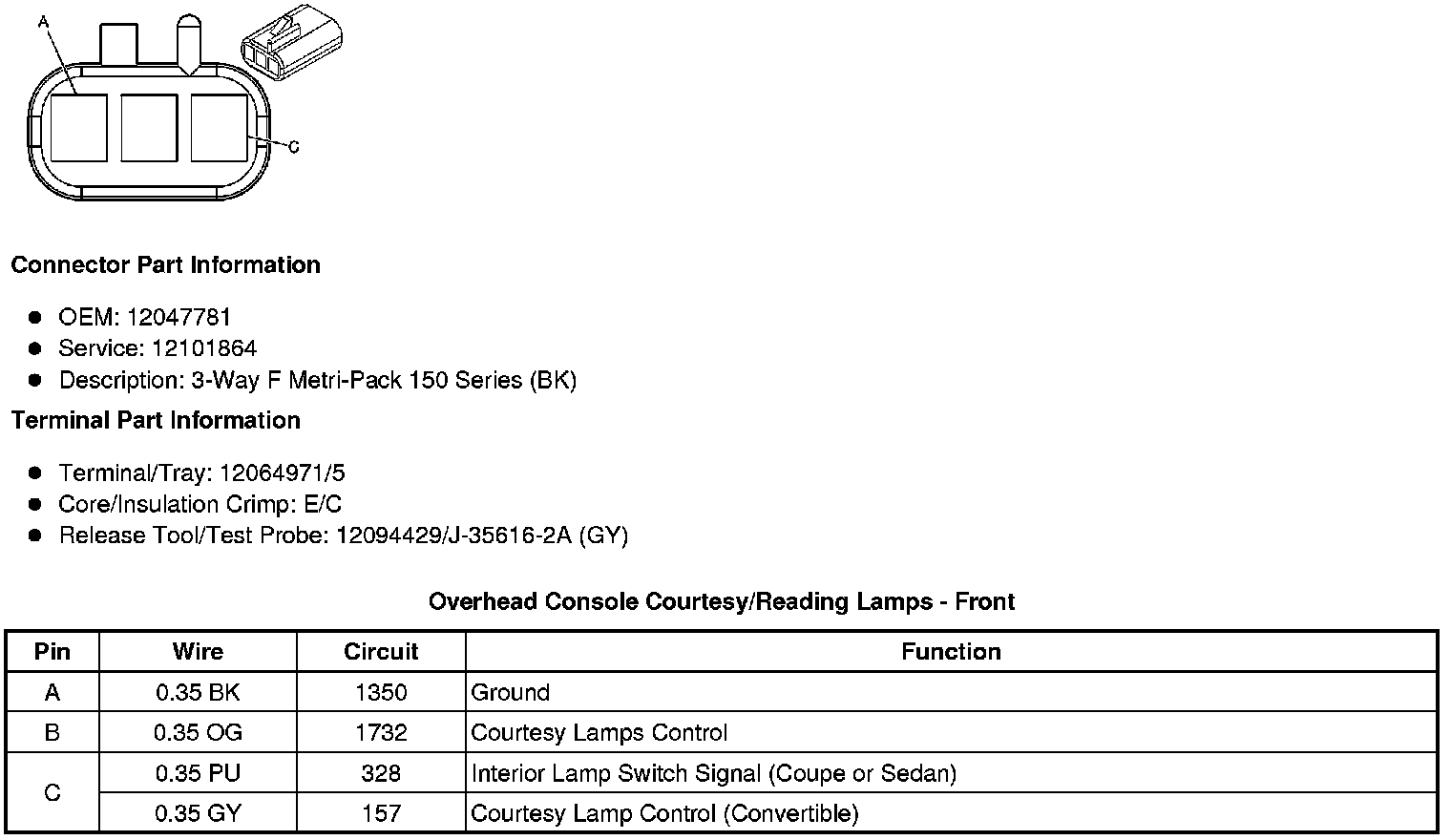

Overhead Console Courtesy/Reading Lamps - Front
