Power Window Motor: Diagrams
Component Connector End Views
Window Motor - Driver (Coupe or Convertible)

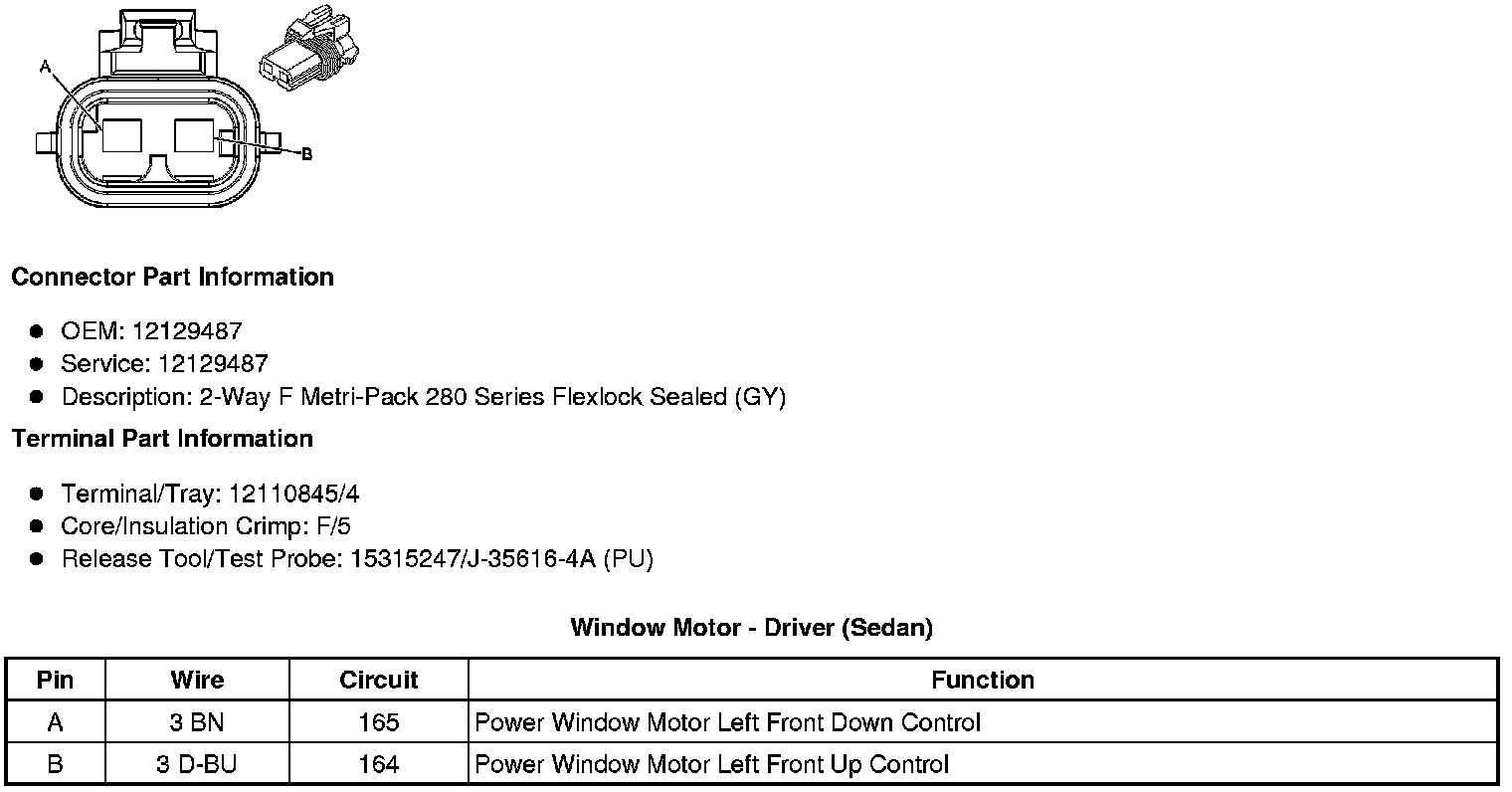

Window Motor - Driver (Sedan)

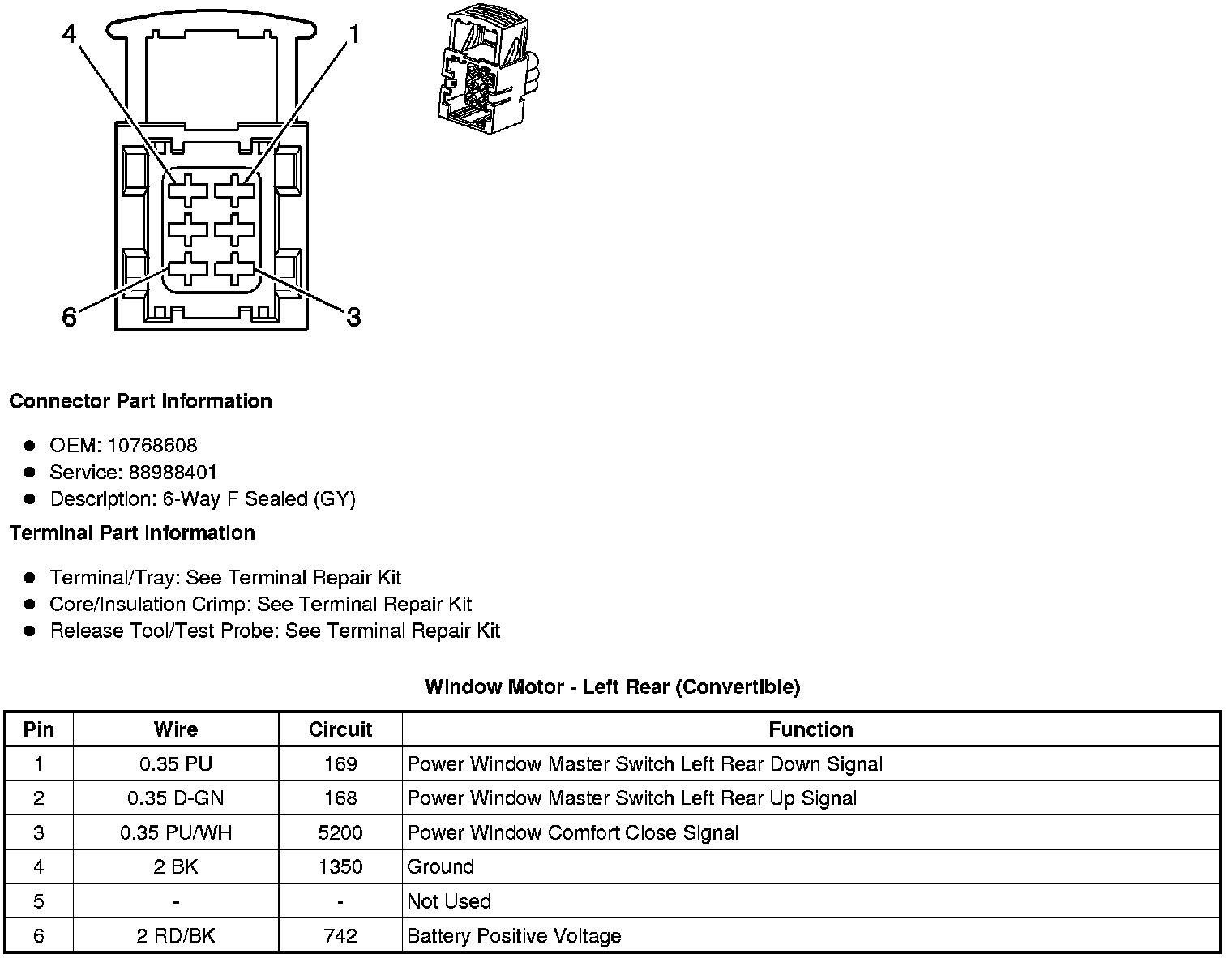

Window Motor - Left Rear (Convertible)
Window Motor - Left Rear (Sedan)

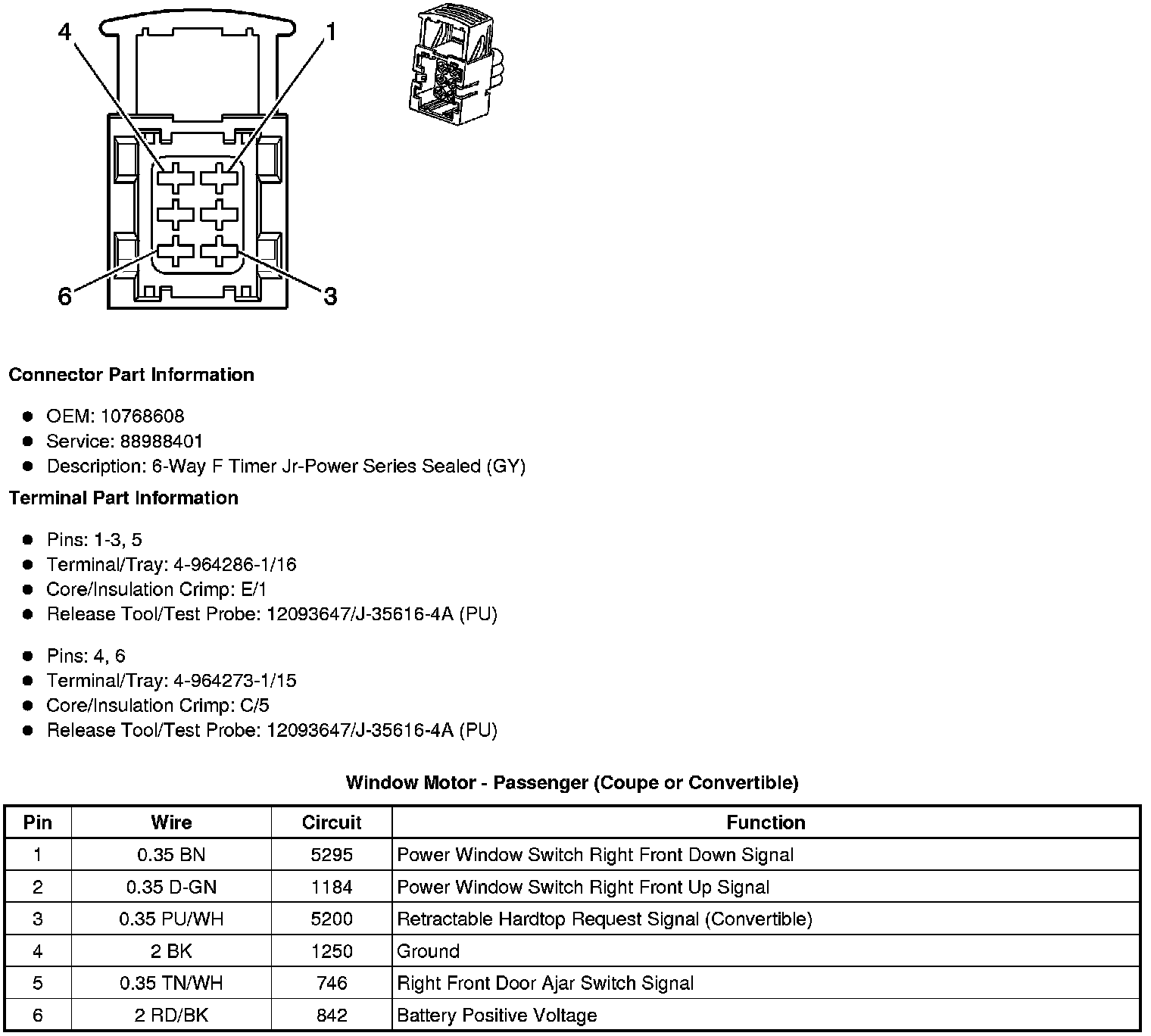

Window Motor - Passenger (Coupe or Convertible)
Window Motor - Passenger (Sedan)
Window Motor - Right Rear (Convertible)

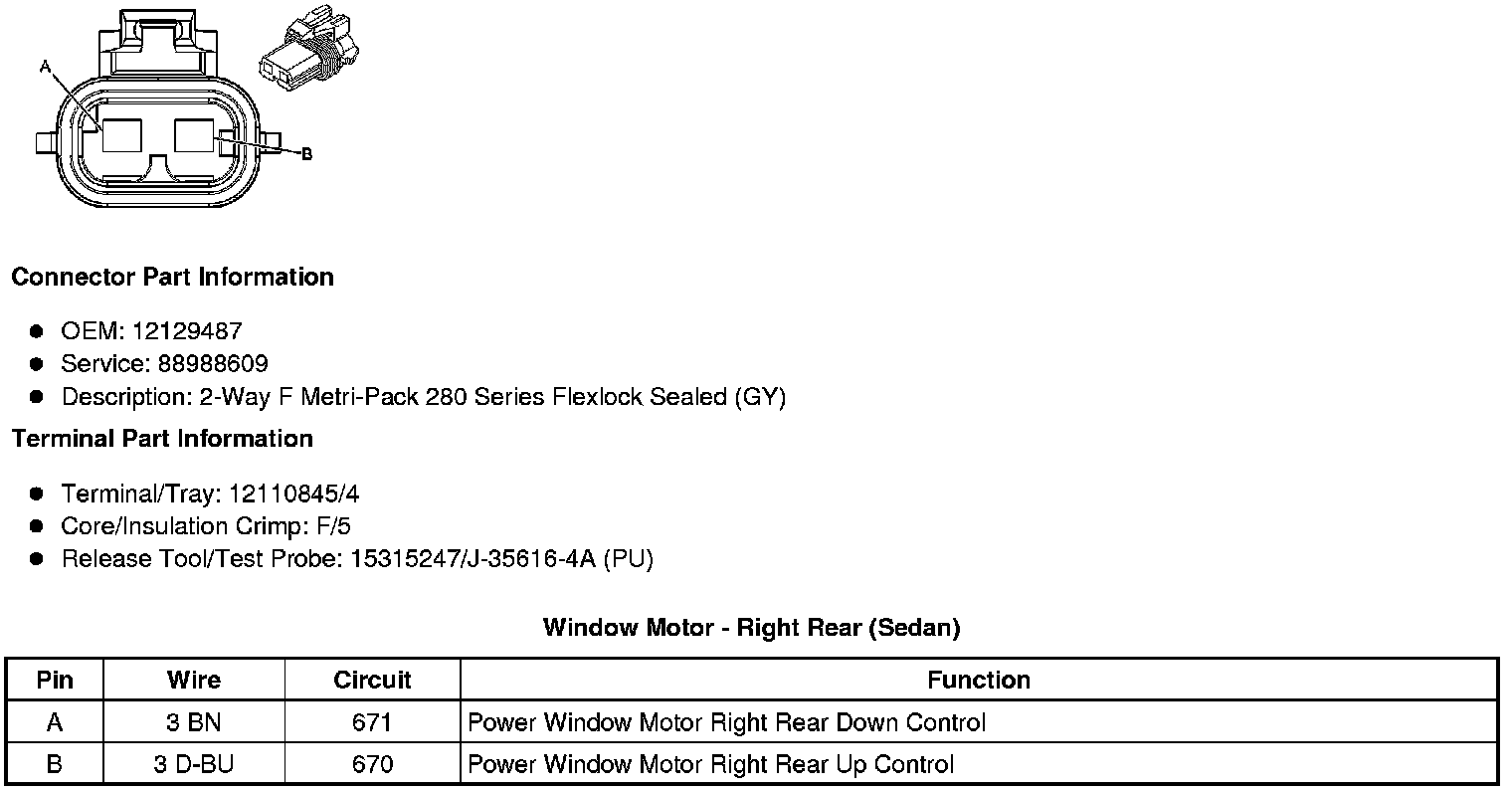

Window Motor - Right Rear (Sedan)
