Convertible Top Deck Lid




Component Connector End Views

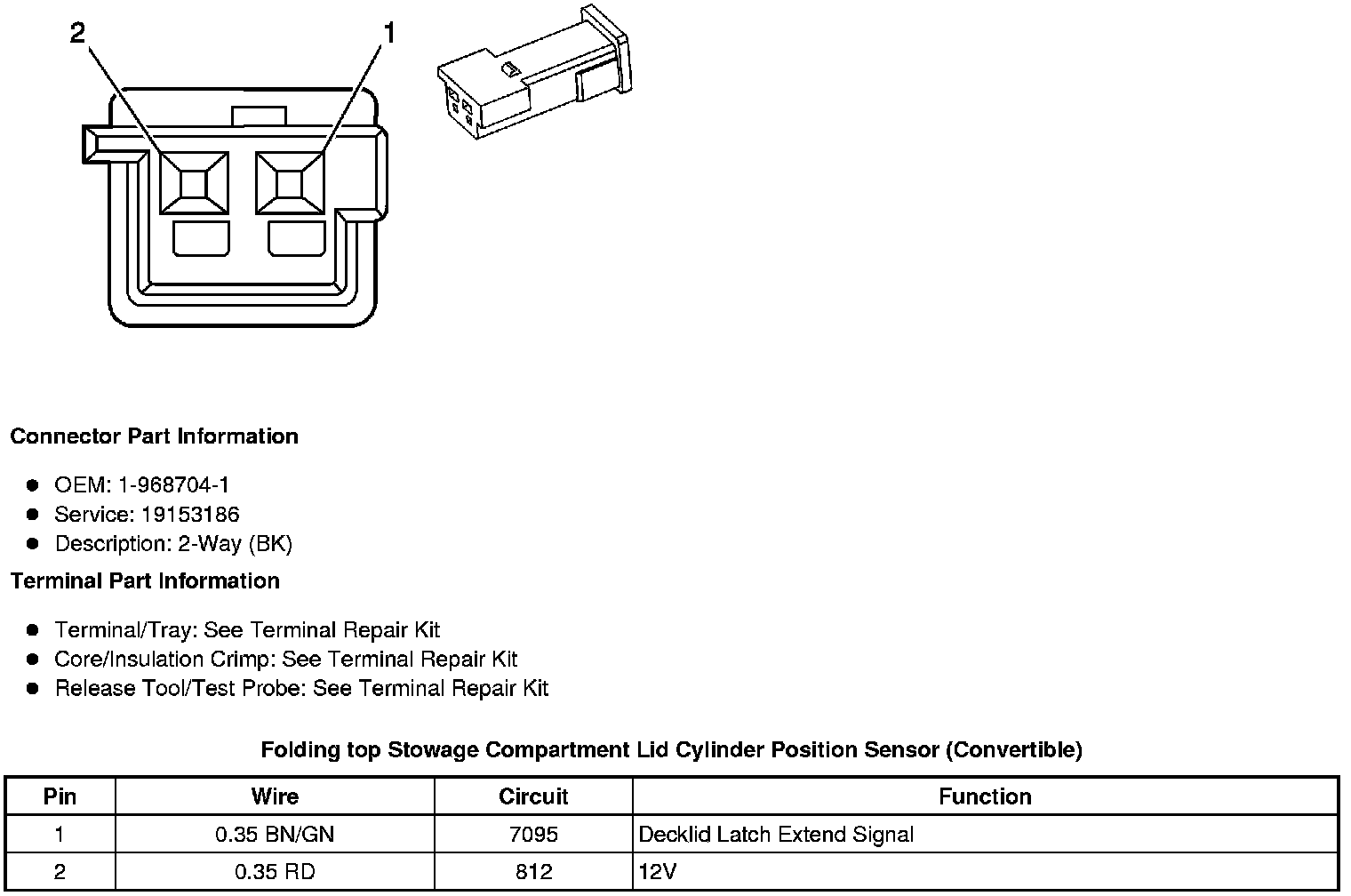

Folding top Stowage Compartment Lid Cylinder Position Sensor (Convertible)
