Rear Door Latch




Component Connector End Views

Door Latch - Driver






Door Latch - Left Rear (Sedan)






Door Latch - Passenger

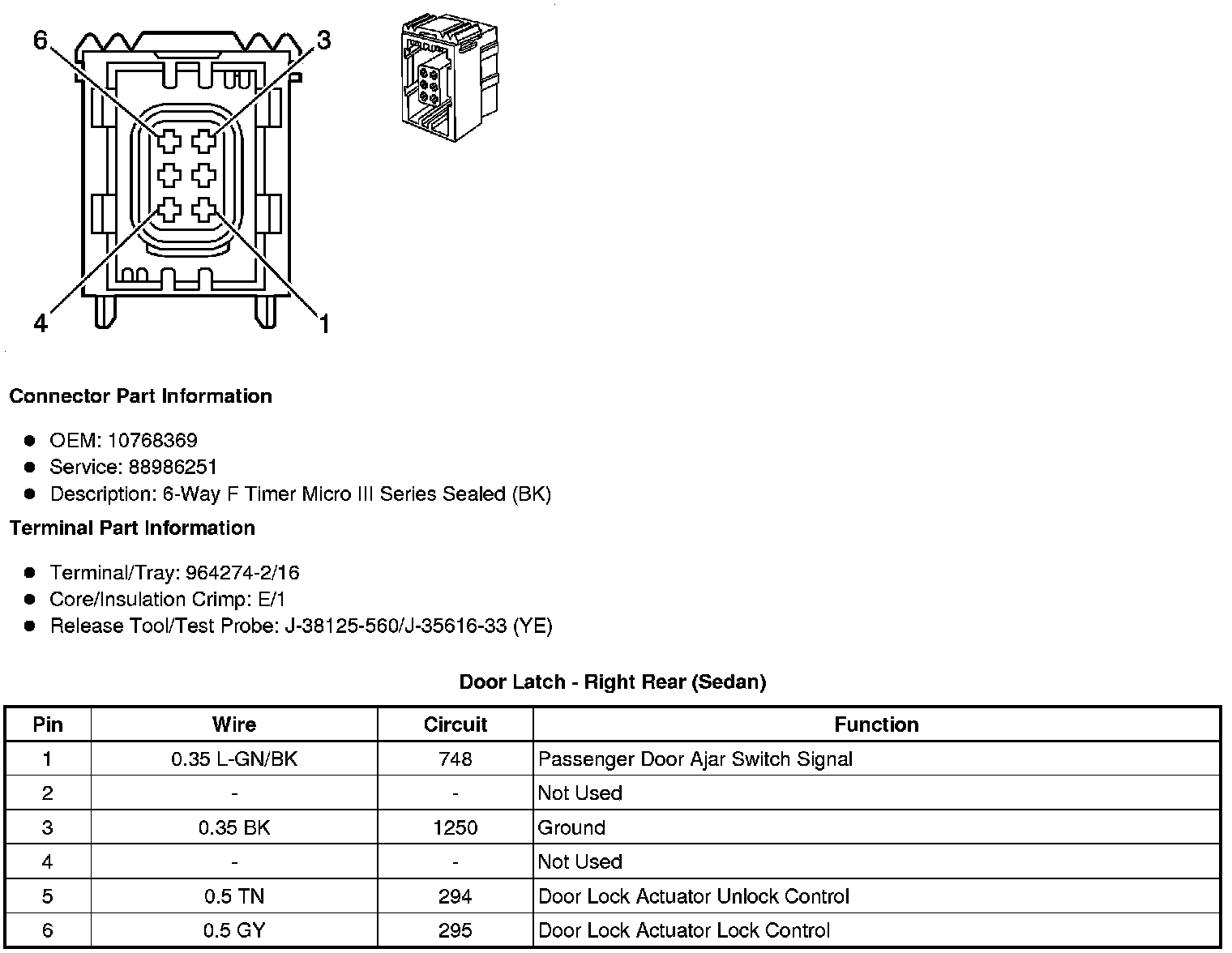

Door Latch - Right Rear (Sedan)
