Fuel Injector: Diagrams




Component Connector End Views

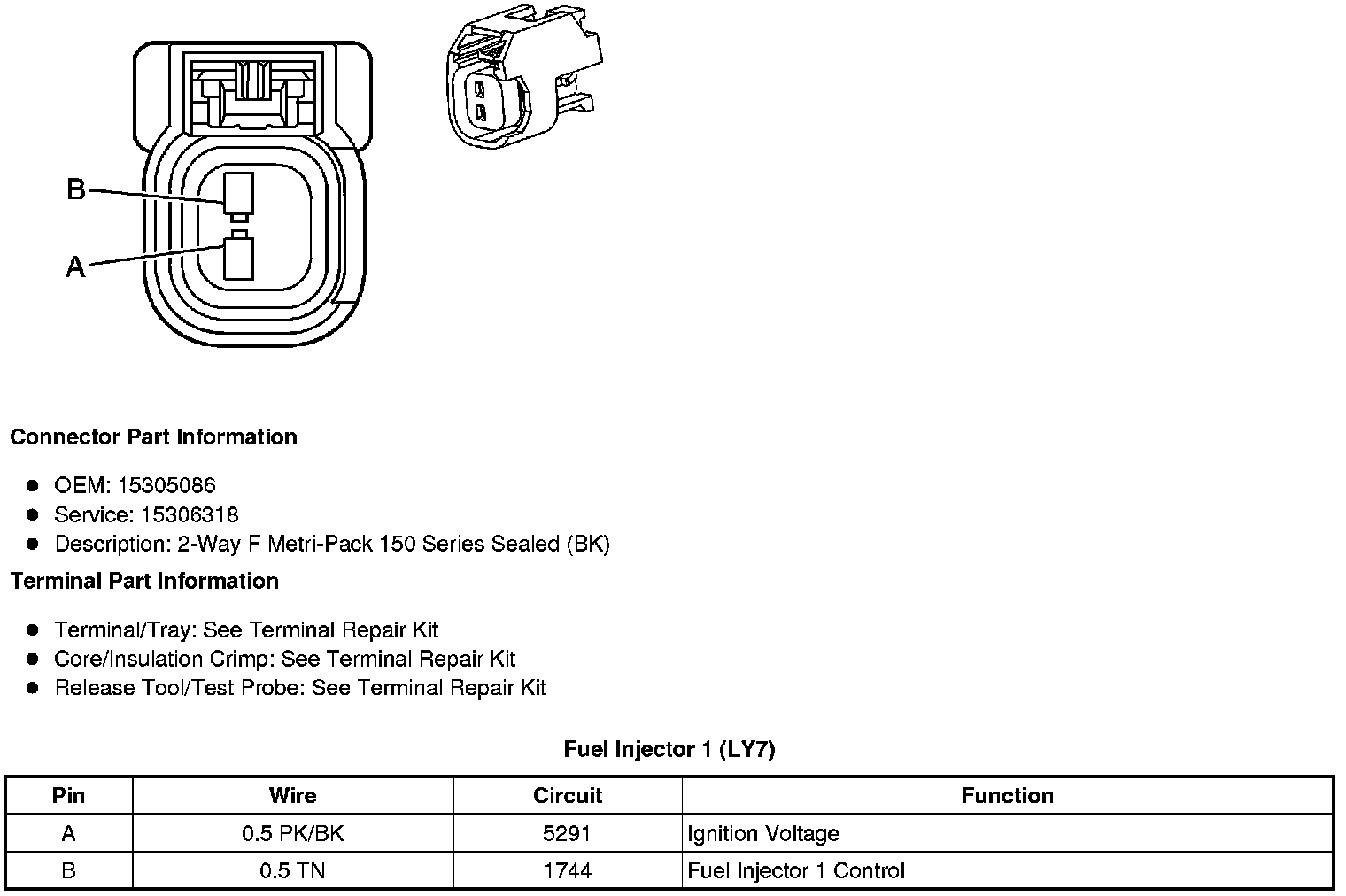

Fuel Injector 1 (LY7)

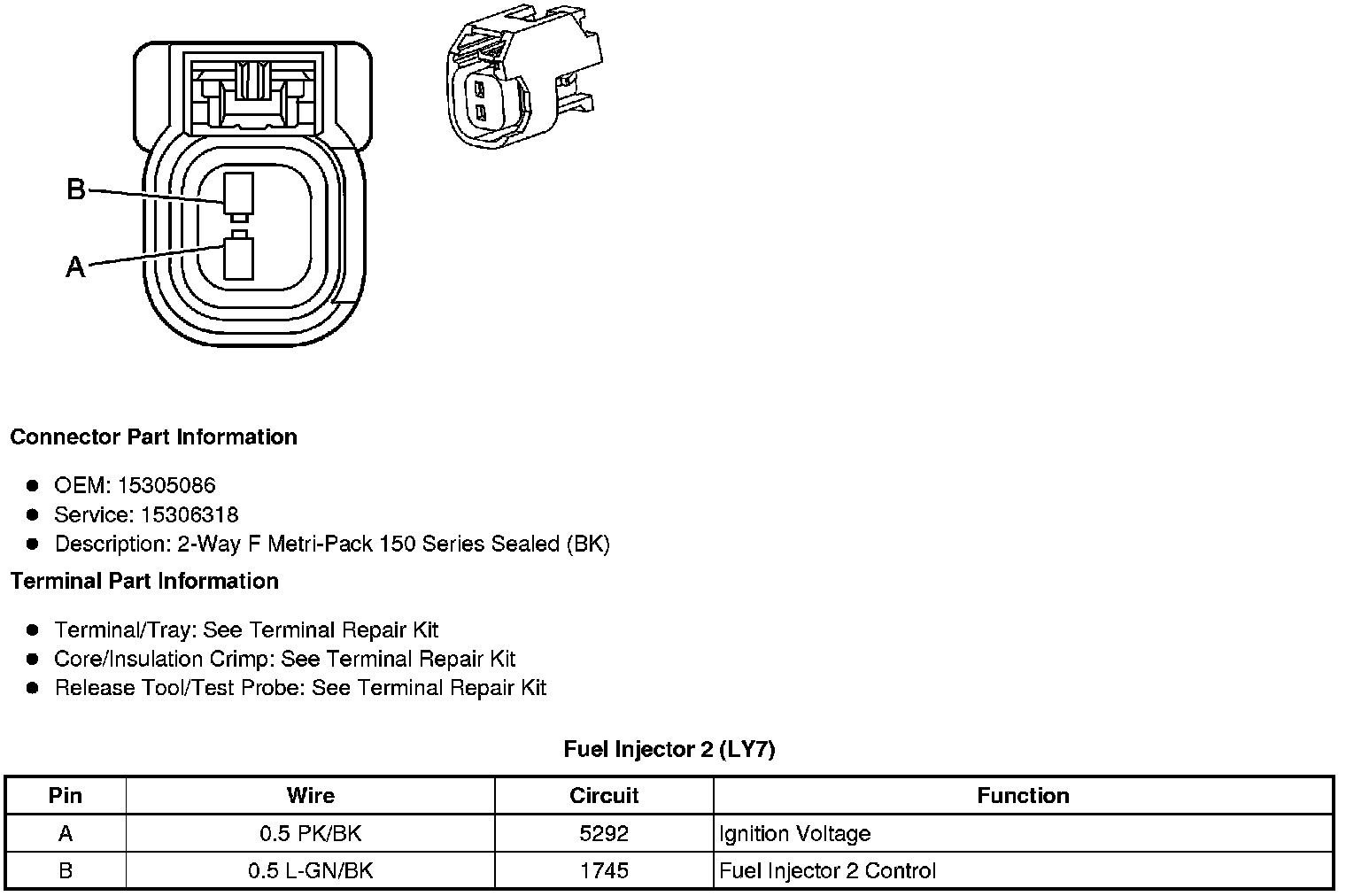

Fuel Injector 2 (LY7)






Fuel Injector 3 (LY7)






Fuel Injector 4 (LY7)

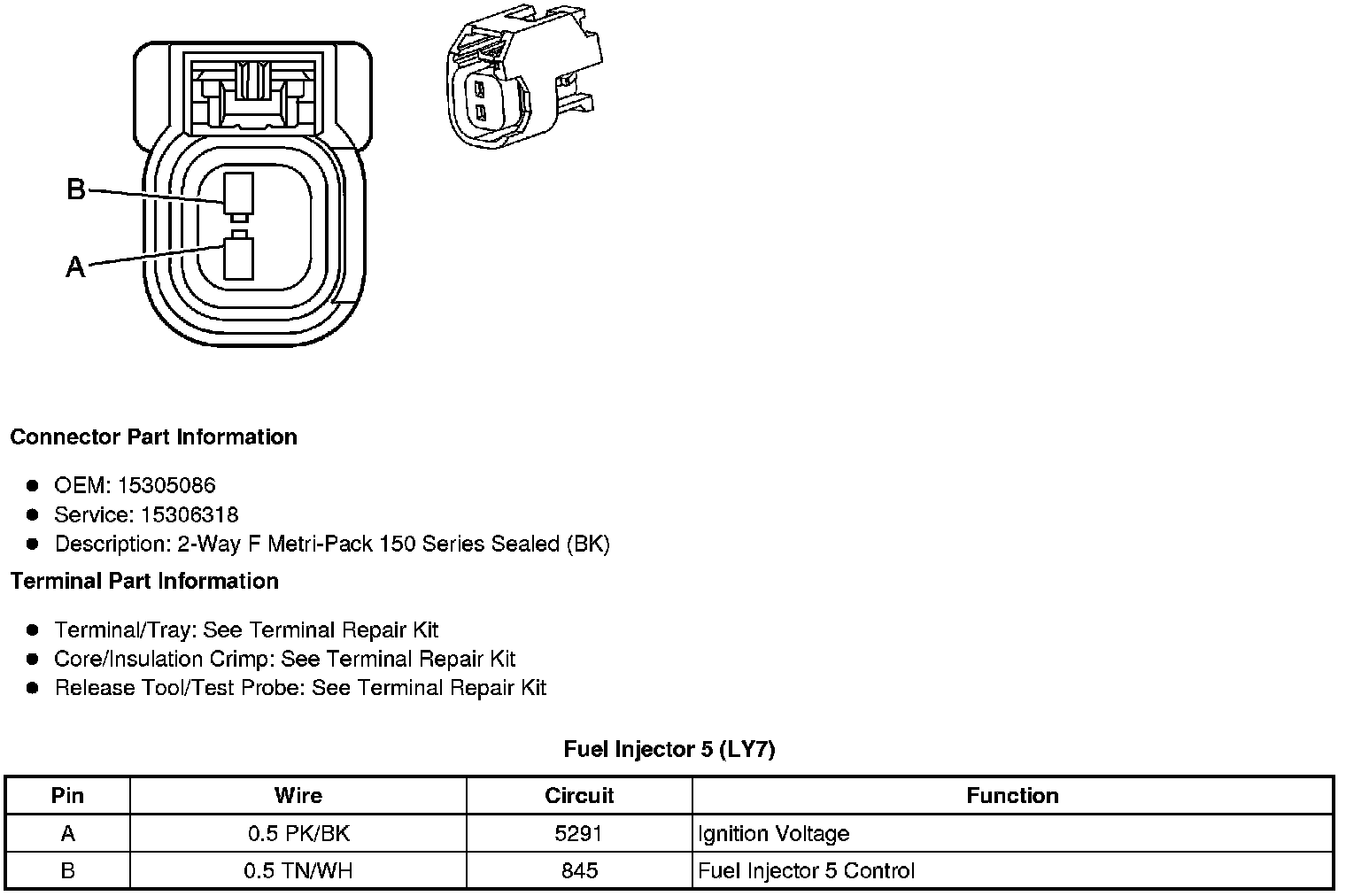

Fuel Injector 5 (LY7)






Fuel Injector 6 (LY7)
