Brake Booster Vacuum Sensor
Brake Booster Vacuum Sensor

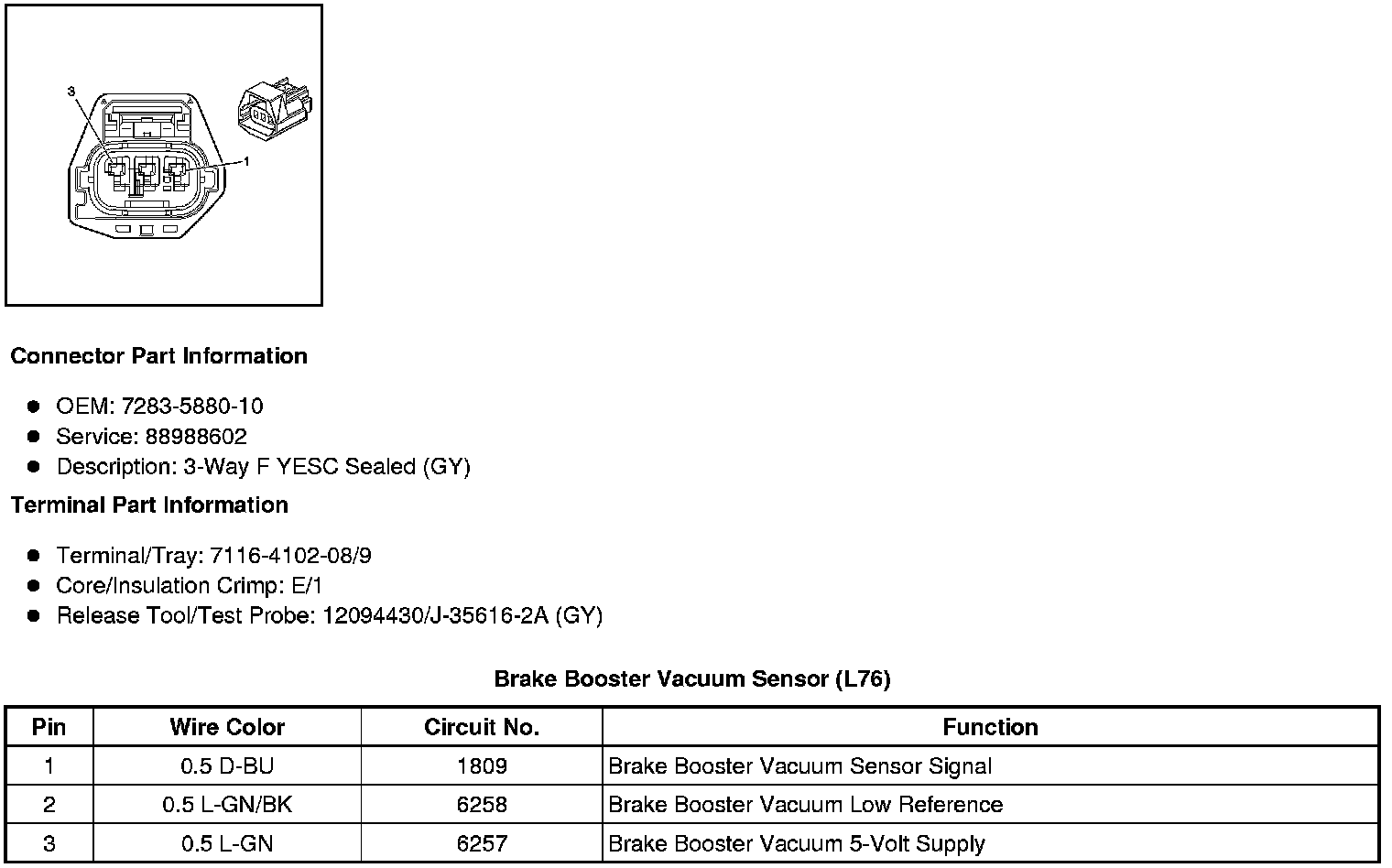

Component Connector End Views
Brake Booster Vacuum Sensor
(L76)
