Valve Deactivation Solenoid
Valve Deactivation Solenoid

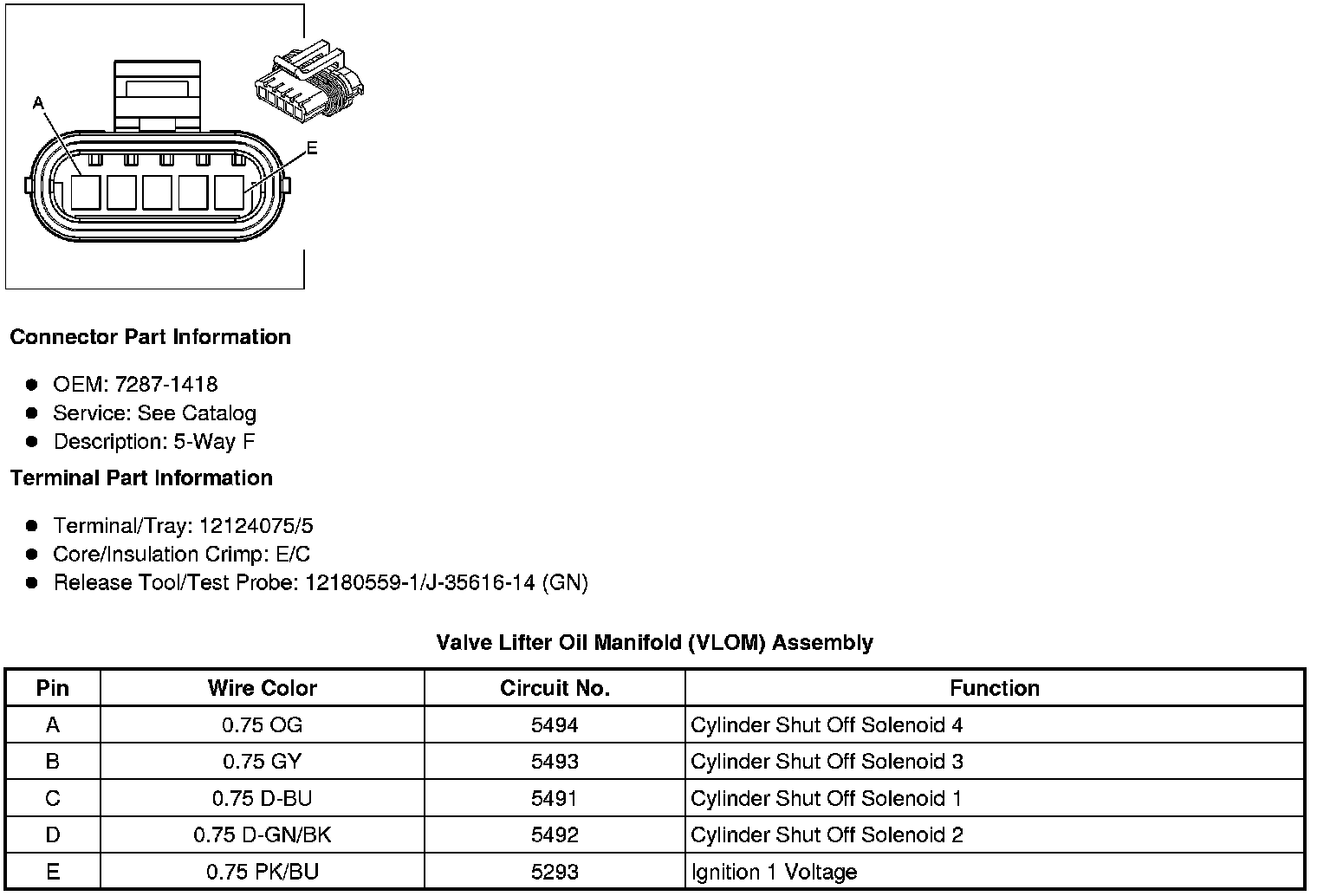

Component Connector End Views
Valve Lifter Oil Manifold (VLOM) Assembly
