Fuel Delivery and Air Induction

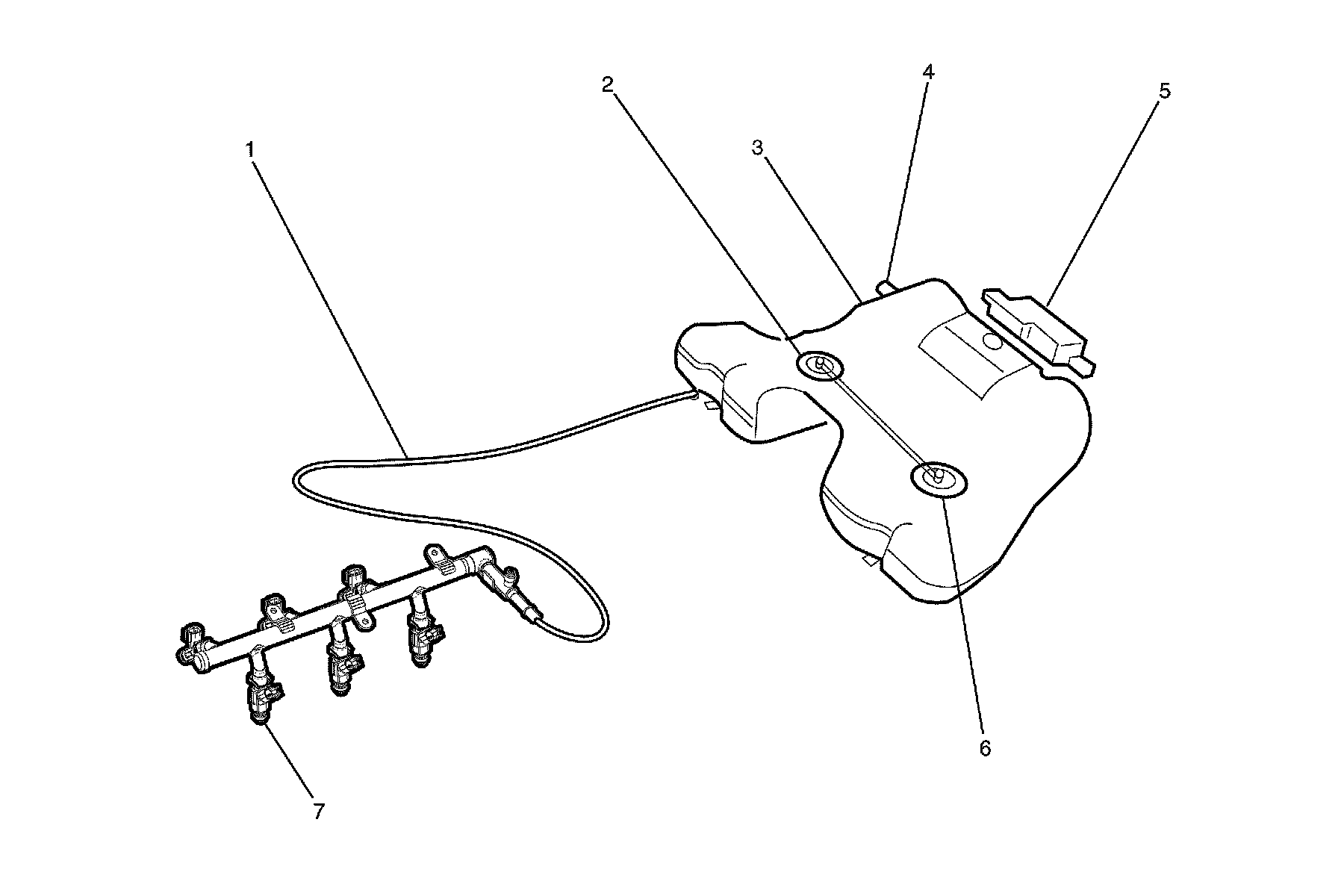

Fuel Hose/Pipes Routing Diagram




1 - Fuel supply tube
2 - Primary Fuel module
3 - Fuel tank
4 - Filler tube
5 - EVAP canister
6 - Secondary fuel module
7 - Injectors and fuel rail

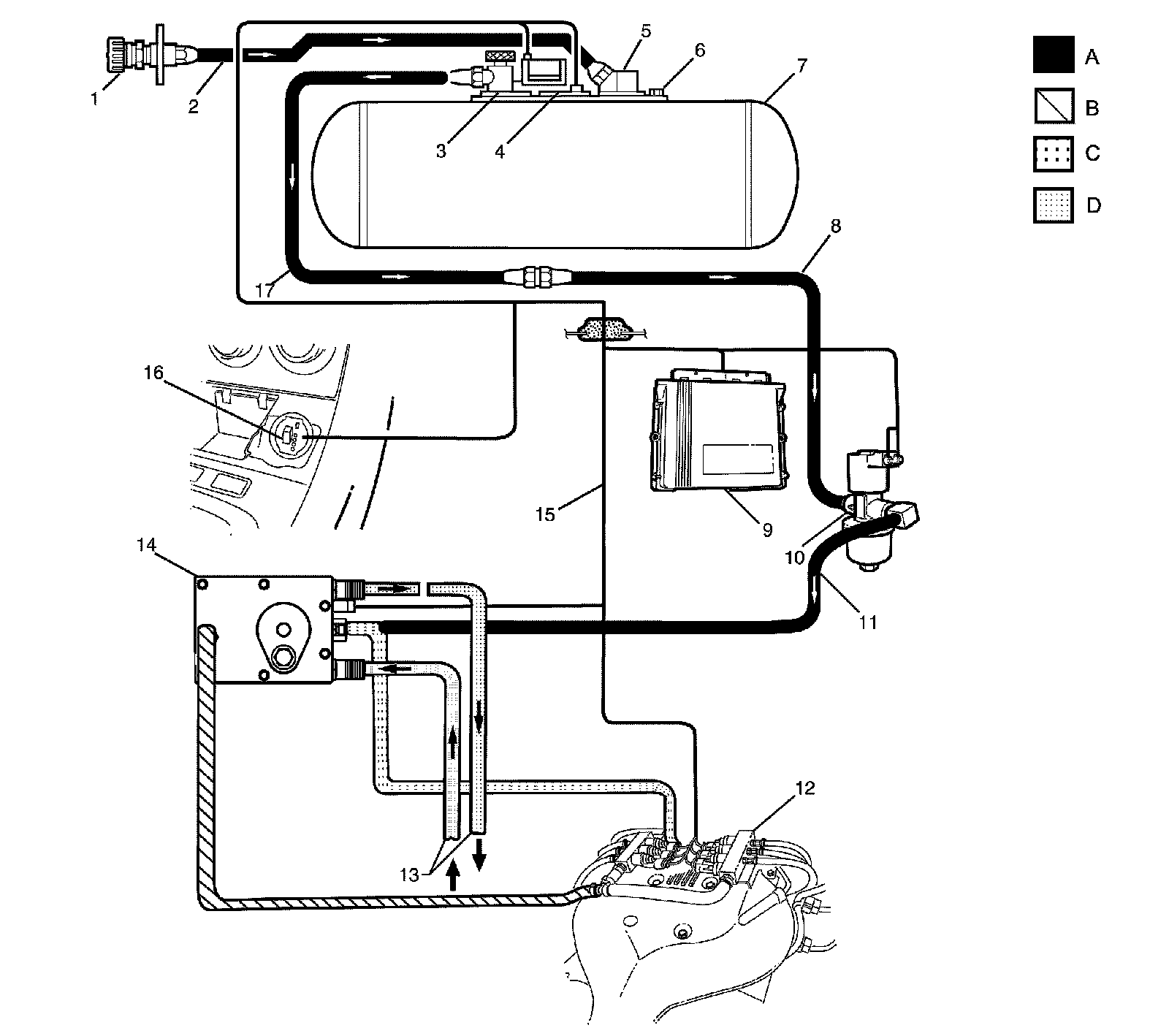

LPG System Schematic




1 - LPG Filler Valve
2 - Filler Line
3 - Rear Lock Off/Service Solenoid Valve Assembly
4 - LPG Tank Assembly
5 - AFL
6 - Fuel Contents Gauge / Sender
7 - LPG Tank
8 - Intermediate Service Line
9 - LPG Control Module
10 - Front LPG Lock-Off (including filter)
11 - Front Service Line
12 - LPG Fuel Injectors and Manifold (2 of)
13 - Coolant Hoses to and from Engine
14 - Reducer
15 - Wiring Harness
16 - Fuel Mode Switch and Fuel Level
17 - Rear Service Line
18 - LPG Filter
a - Liquid
b - Vapor
c - Vacuum
d - Coolant
