5 Speed Automatic Transmission Harness

Harness Routing Views




1 - Fuel Injector (Even) Connector - L2
2 - Camshaft Position (CMP) Sensor Connector - B28

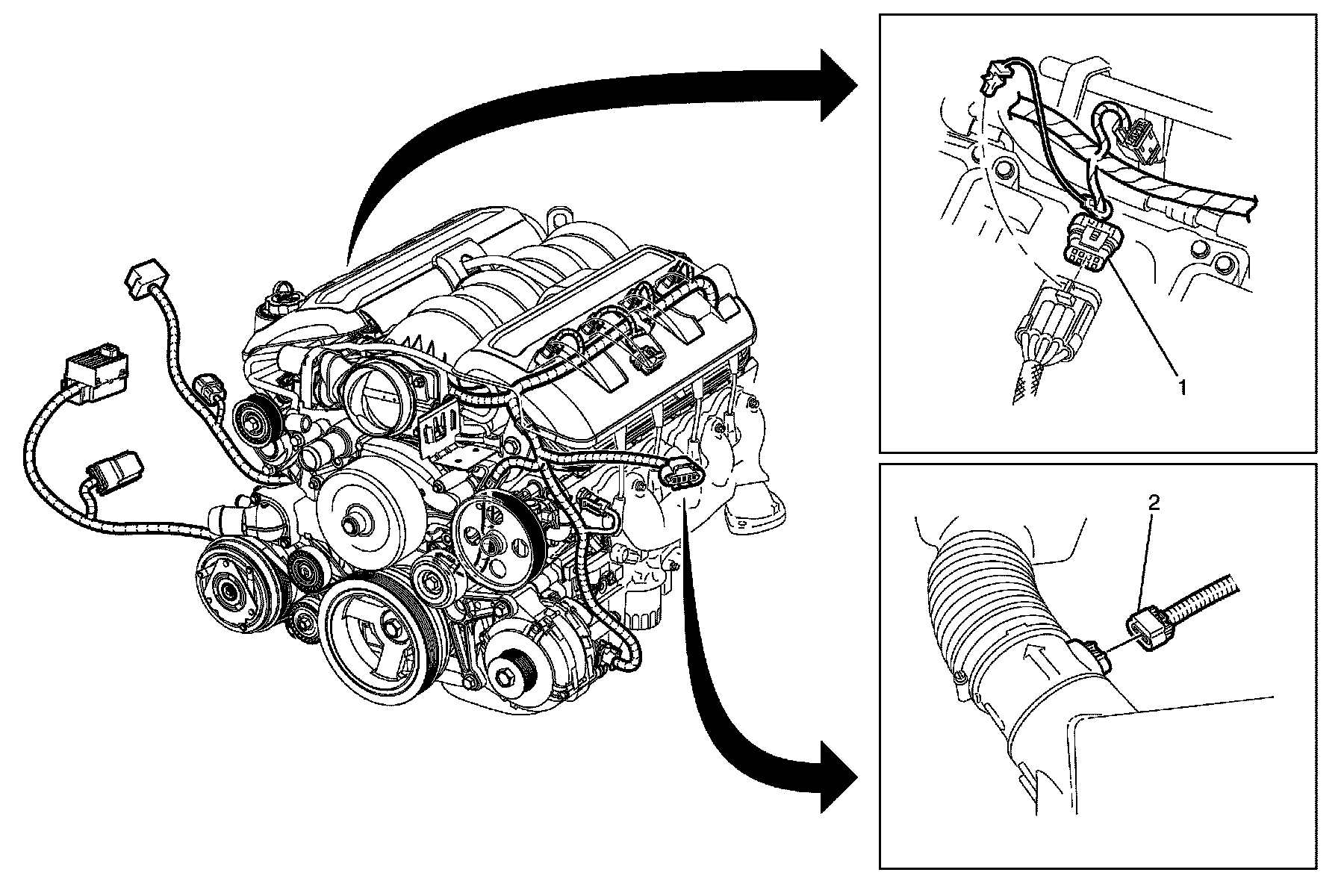

1 - Ignition Coil (Odd) Connector - X113
2 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor Connector - B69




1 - Engine Oil Pressure (EOP) Sensor Connector - B42
2 - Generator Connector - G8-X1

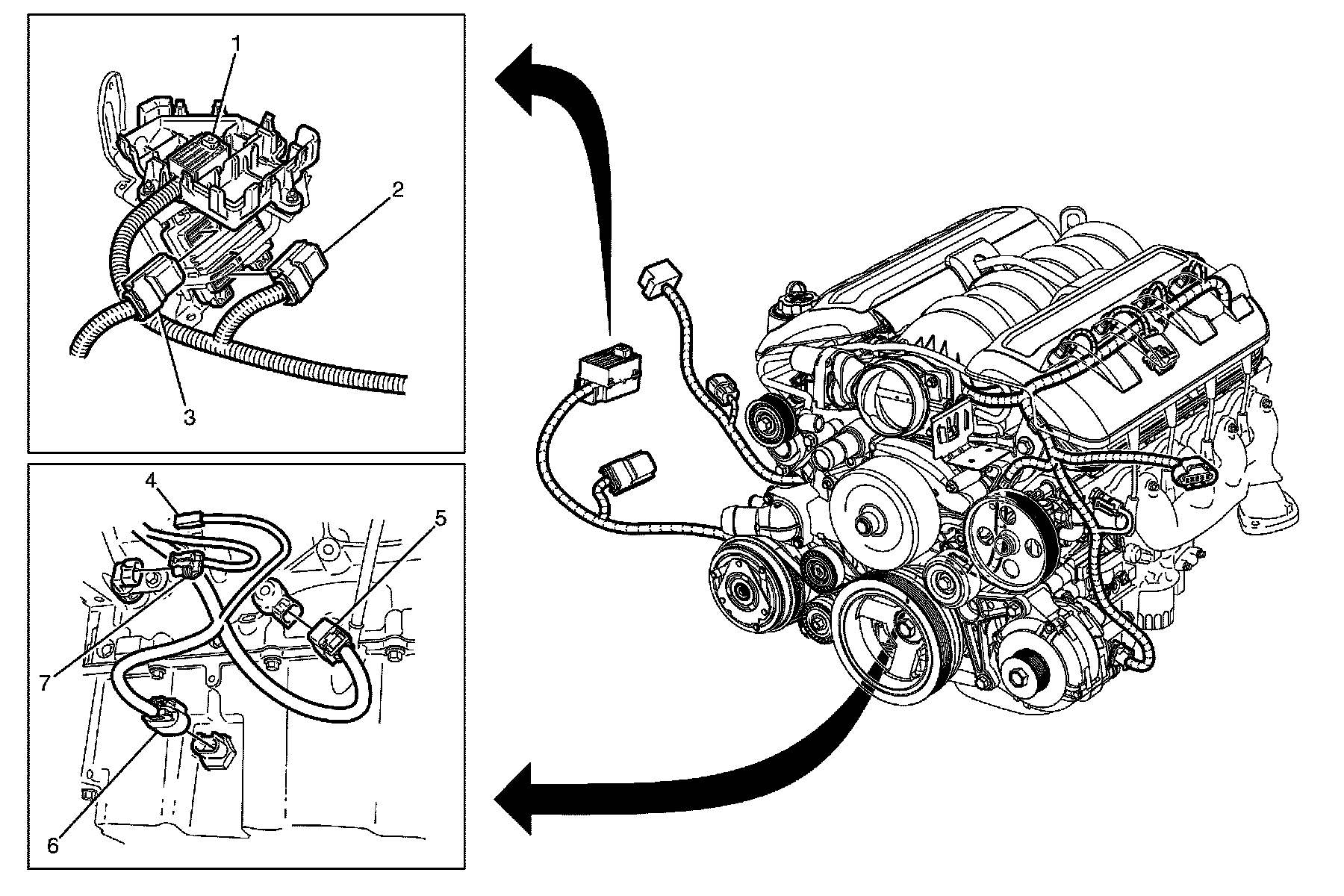

1 - Fuse Block Underhood - X124
2 - Engine Control Module 2 Connector - A43-X2
3 - Engine Control Module 1 Connector - A43-X1
4 - Starter Connector - M15
5 - Knock Sensor (KS) Right Connector - B65
6 - Engine Oil Level/Temperature Sensor Connector - B41
7 - Crankshaft Position (CKP) Sensor Connector - B30




1 - Manifold Absolute Pressure (MAP) Sensor Connector - B67
2 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve Connector - Y123
3 - Throttle Body Connector - Y38
4 - ECVD Solenoid - L7
5 - A/C Refrigerant Pressure Sensor Connector - B18




1 - Engine Coolant Temperature (ECT) Sensor Connector - B39
2 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 Connector - B166
3 - Engine Block Ground - G112
4 - Knock Sensor (KS) Left Connector - B65

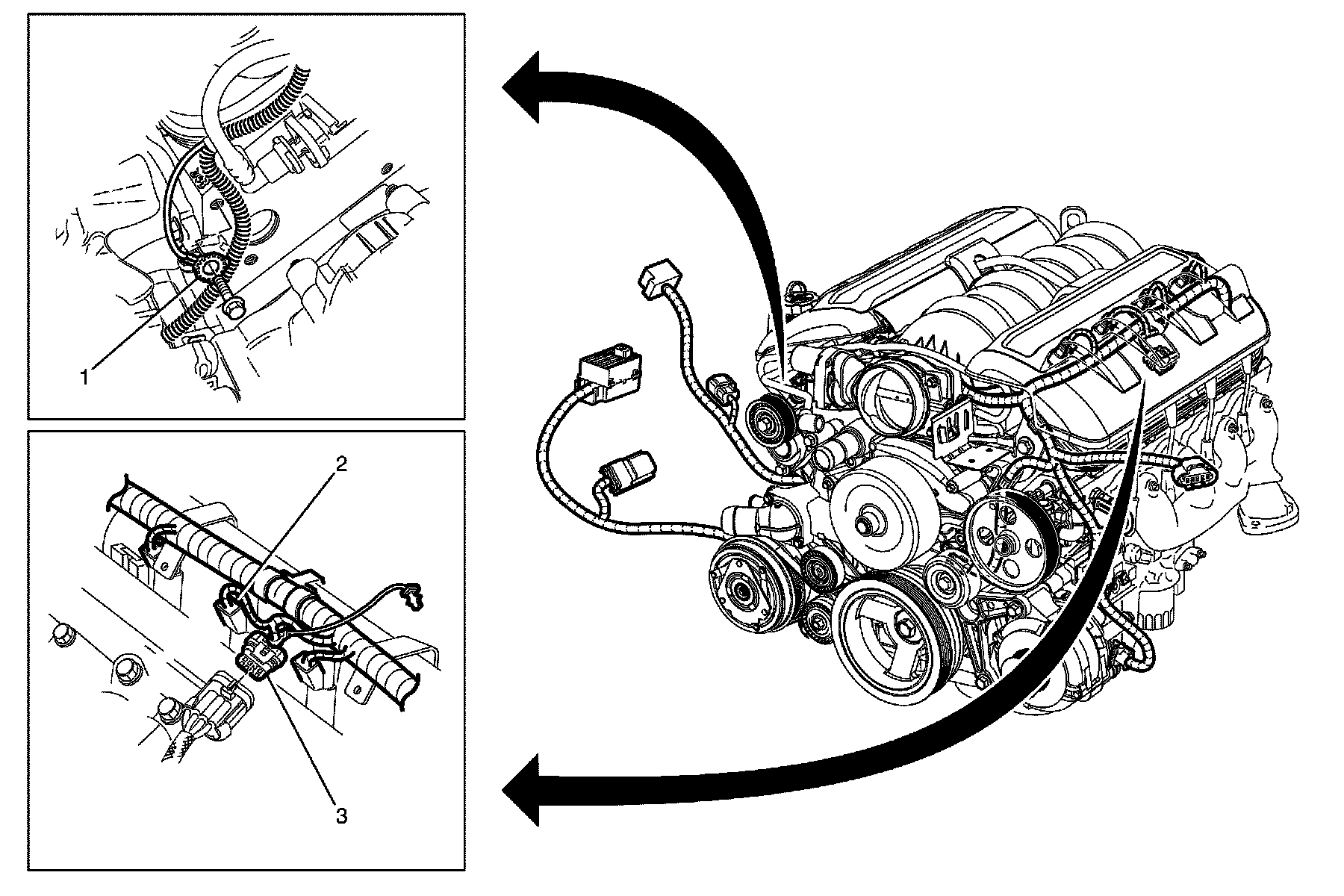

1 - Engine Block Ground - G110
2 - Fuel Injector (Odd) Connector - L2
3 - Ignition Coil (Even) Connector - X112
