Engine and Transmission Harness

Harness Routing Views




1 - Camshaft Position (CMP) Exhaust Sensor - 1 (ODD BK) Connector - B28
2 - Camshaft Position (CMP) Intake Sensor 1 (ODD BK) Connector - B28
3 - Camshaft Position (CMP) Intake Solenoid - 1 (ODD BK) Connector - Y4
4 - Camshaft Position (CMP) Exhaust Solenoid - 1 (ODD BK) Connector - Y4
5 - Camshaft Position (CMP) Intake Sensor 2 (EVEN BK) Connector - B28
6 - Camshaft Position (CMP) Intake Solenoid - 2 (EVEN BK) Connector - Y4
7 - Camshaft Position (CMP) Exhaust Sensor - 2 (EVEN BK) Connector - B28
8 - Camshaft Position (CMP) Exhaust Solenoid - 2 (EVEN BK) Connector - Y4

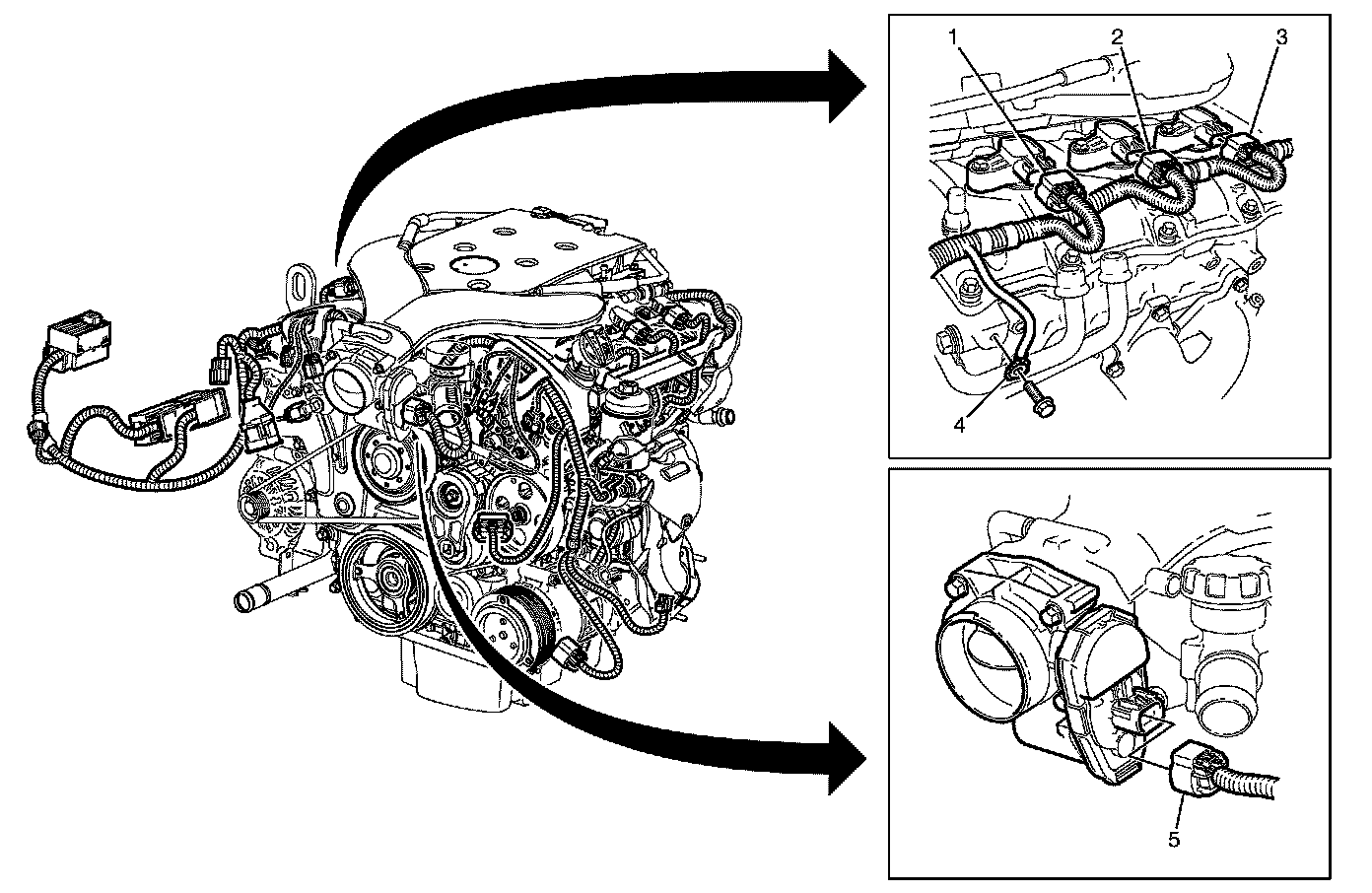

1 - Ignition Coil 5 Connector - L3
2 - Ignition Coil 3 Connector - L3
3 - Ignition Coil 1 Connector - L3
4 - Engine Block Ground - G112
5 - Throttle Body Connector - Y38




1 - Fuse Block Underhood - X124
2 - Engine Control Module 2 Connector - A43-X2
3 - Engine Control Module 1 Connector - A43-X1
4 - Body Front Wiring Connector 3 - X103
5 - Knock Sensor (KS) Bank 1 Connector - B65
6 - Crankshaft Position (CKP) Sensor Connector - B30




1 - Ignition Coil 2 Connector - L3
2 - Ignition Coil 4 Connector - L3
3 - Ignition Coil 6 Connector - L3
4 - Engine Block Ground - G109
5 - Engine Coolant Temperature (ECT) Sensor Connector - B39
6 - Engine Oil Level/Temperature Sensor Connector - B41




1 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 Connector - B166
2 - A/C Refrigerant Pressure Sensor Connector - B18
3 - ECVD Solenoid - L7




1 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor Connector - B69
2 - Engine Block Ground - G106
3 - Generator Connector - G8-X1




1 - Variable Intake Manifold (VIM) Solenoid Connector - Y21
2 - Fuel Injector Connector - X114
3 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve Connector - Y123
4 - Knock Sensor (KS) Bank 2 Connector - B65

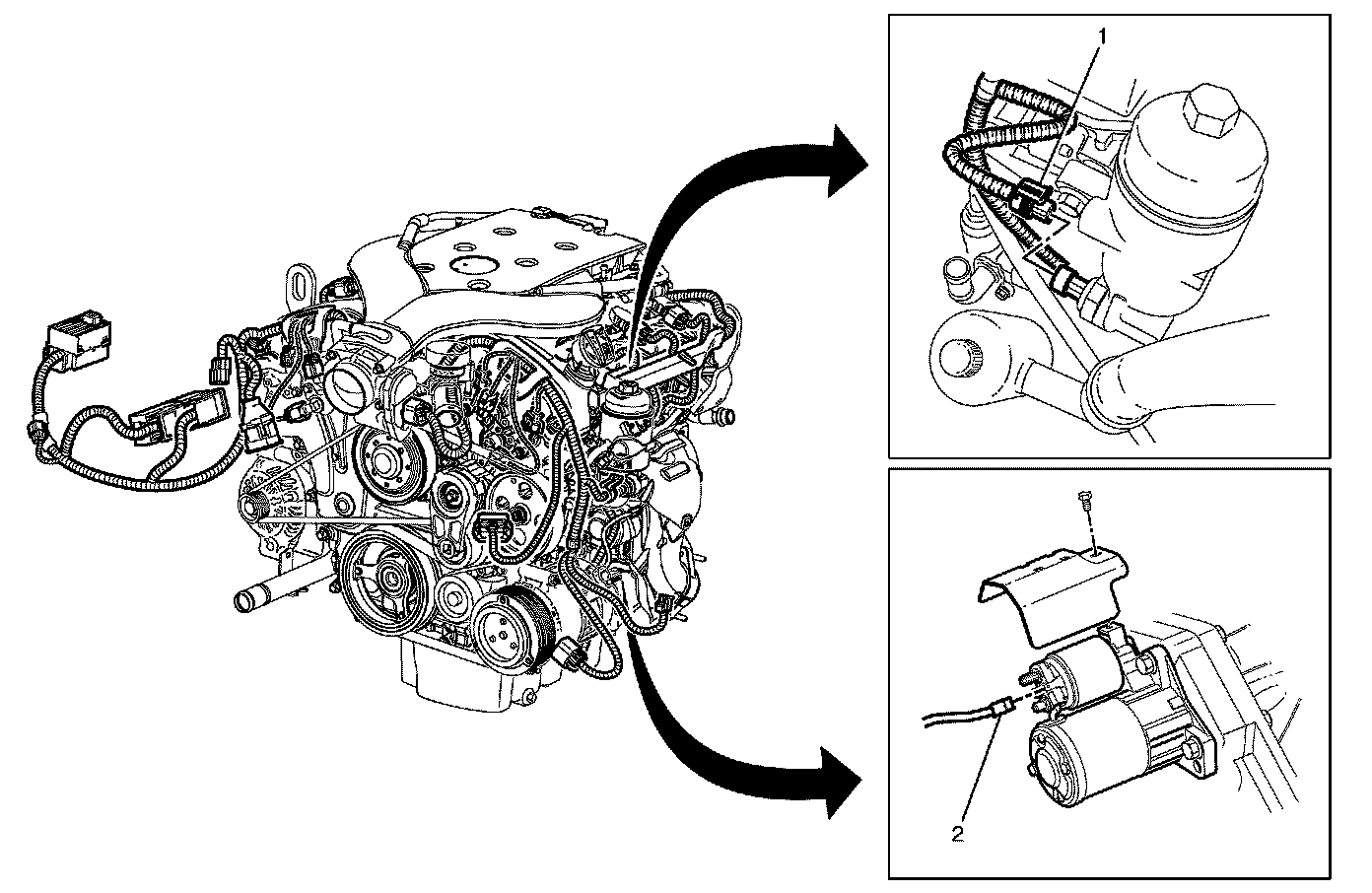

1 - Engine Oil Pressure (EOP) Sensor Connector - B42
2 - Starter Connector - M15

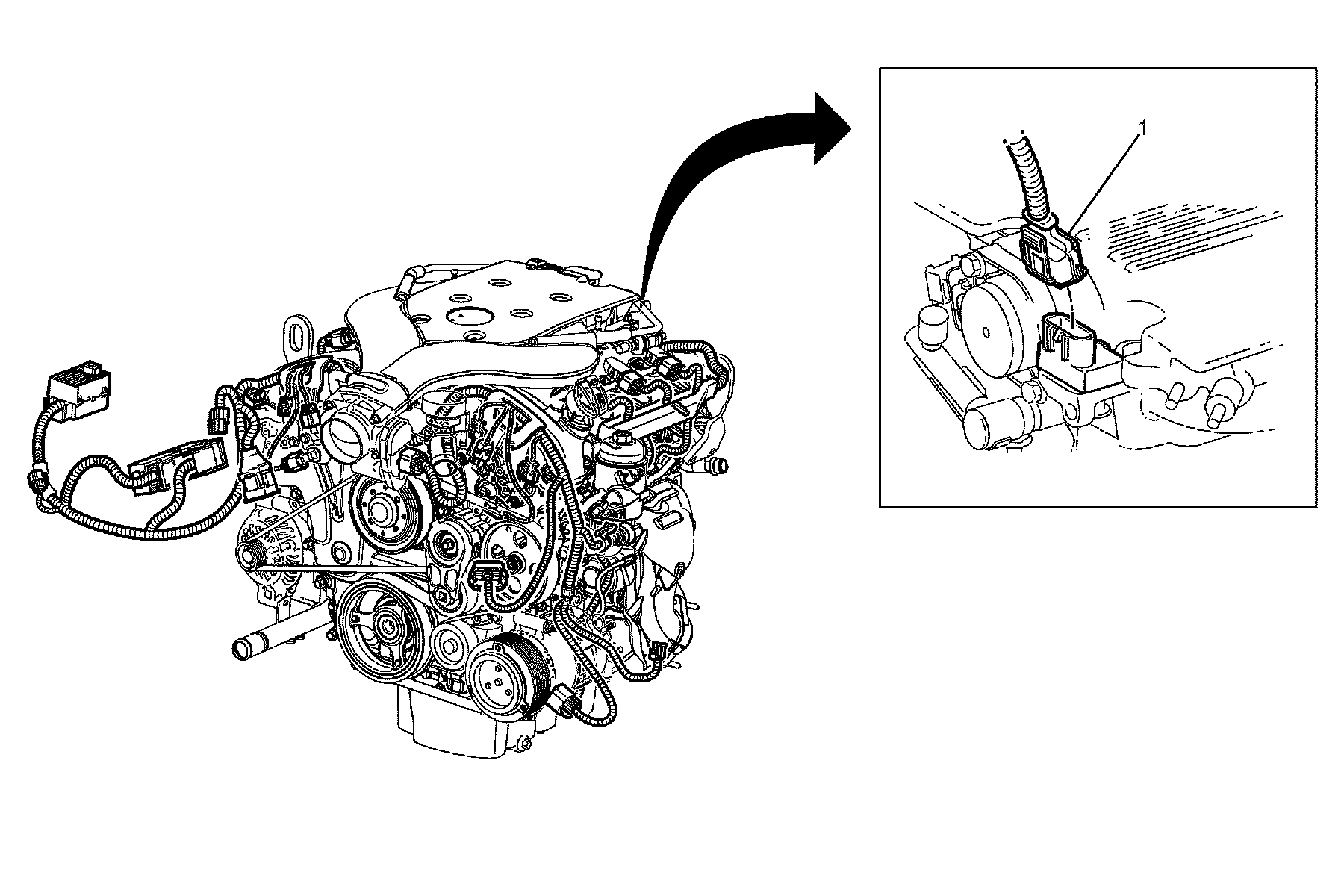

1 - Variable Intake Manifold (VIM) Module - N11
