Front Door Wiring (Left Hand Drive)

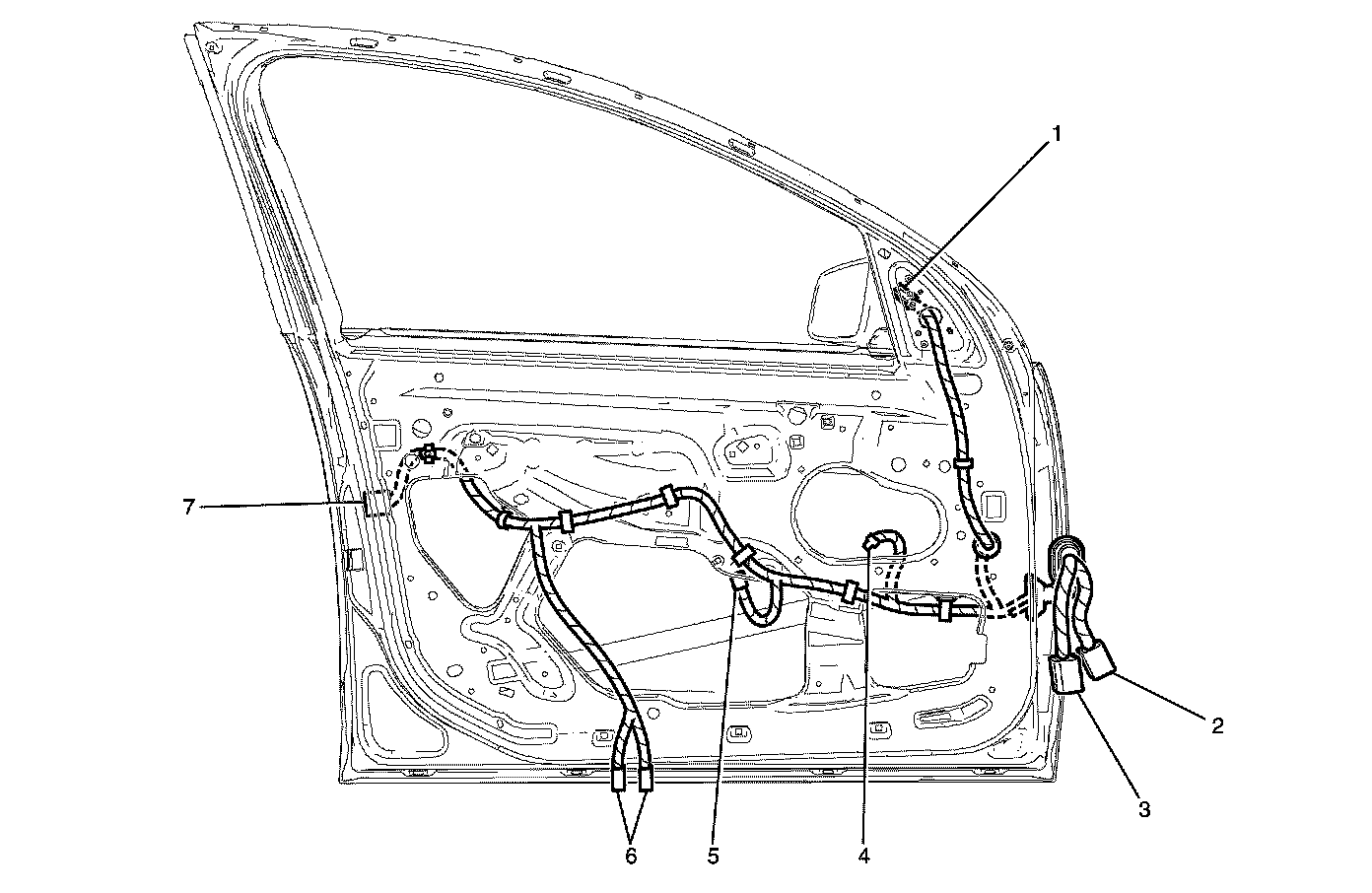

Harness Routing Views

Front Door Wiring (Left Hand Drive)




1 - Outside Rear View Mirror Connector - M11
2 - Body Harness to Left Hand Front Door Harness Connector 2 - X307
3 - Body Harness to Left Hand Front Door Harness Connector 1 - X304
4 - Speaker - Door Connector - B108
5 - Window Motor - LF Connector - M10
6 - Courtesy Lamp - Door Connector - E72
7 - Door Latch Assembly Connector - Y13
