Instrument Panel Compartment Wiring

Harness Routing Views

Instrument Panel Compartment Wiring

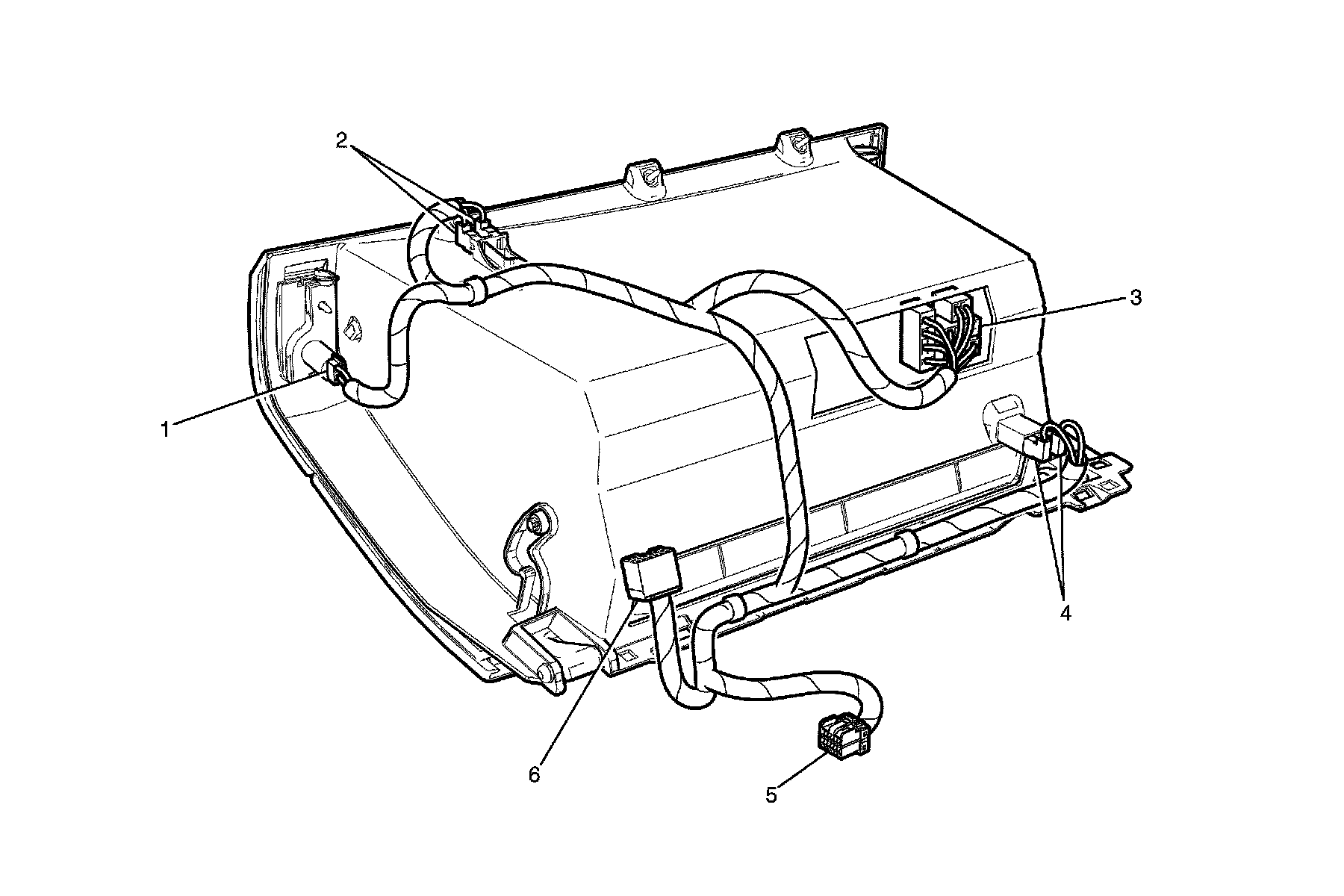

1 - Rear Compartment Lid Release Switch Connector - S195
2 - I/P Compartment Lamp Connector - E82
3 - Navigation Module Connector - A139
4 - I/P Compartment Lamp Switch Connector - S142
5 - Navigation Gateway Module Connector - A156
6 - I/P Harness Connector - X205
