Rear Axle Wiring (Short Wheel Base)

Harness Routing Views

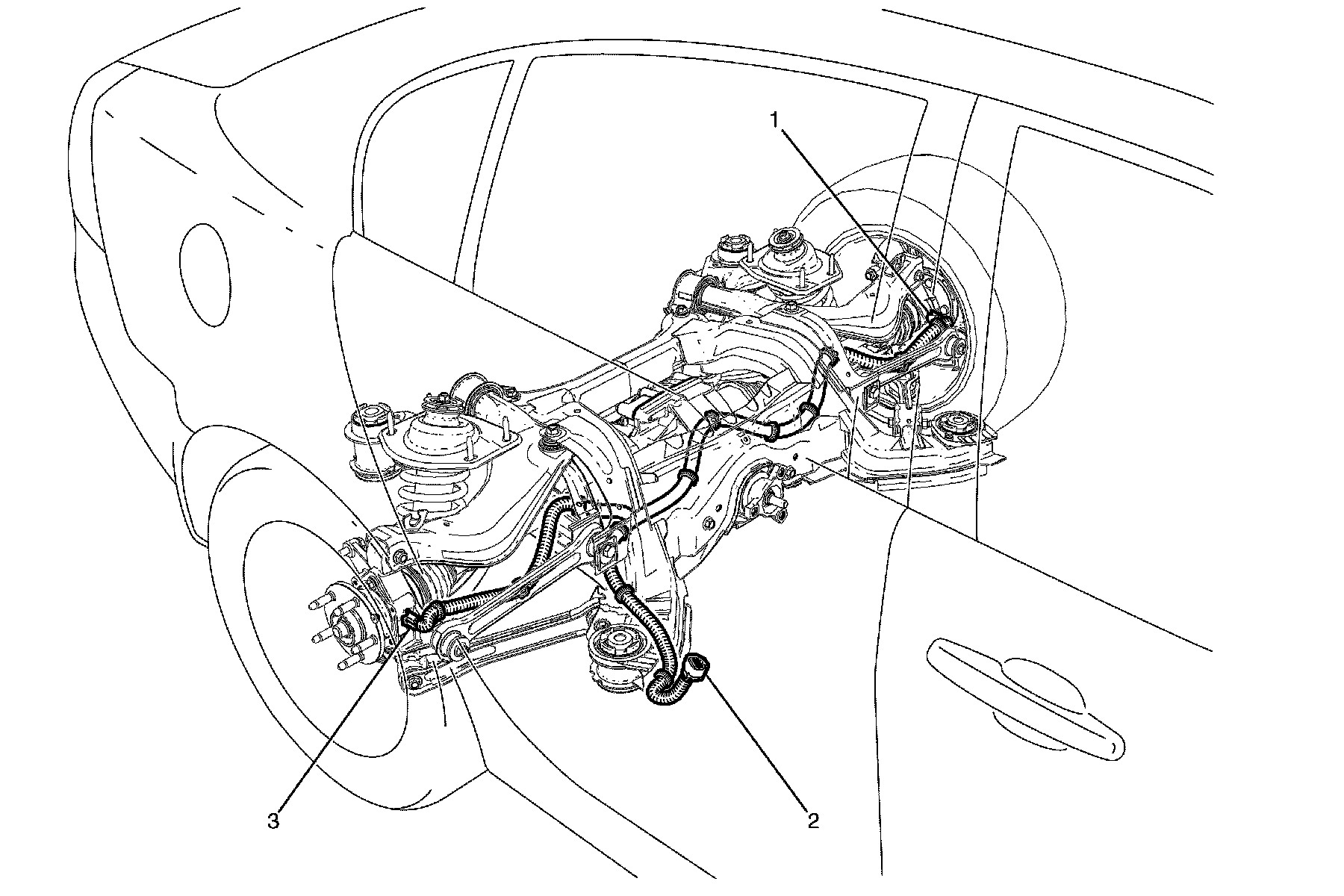

Rear Axle Wiring (Short Wheel Base)




1 - Wheel Speed Sensor (WSS) LR Connector - B76
2 - Body to Rear Axle Harness Connector - X360
3 - Wheel Speed Sensor (WSS) RR Connector - B76
