Rear Door Wiring (Short Wheel Base Left Hand Drive)

Harness Routing Views

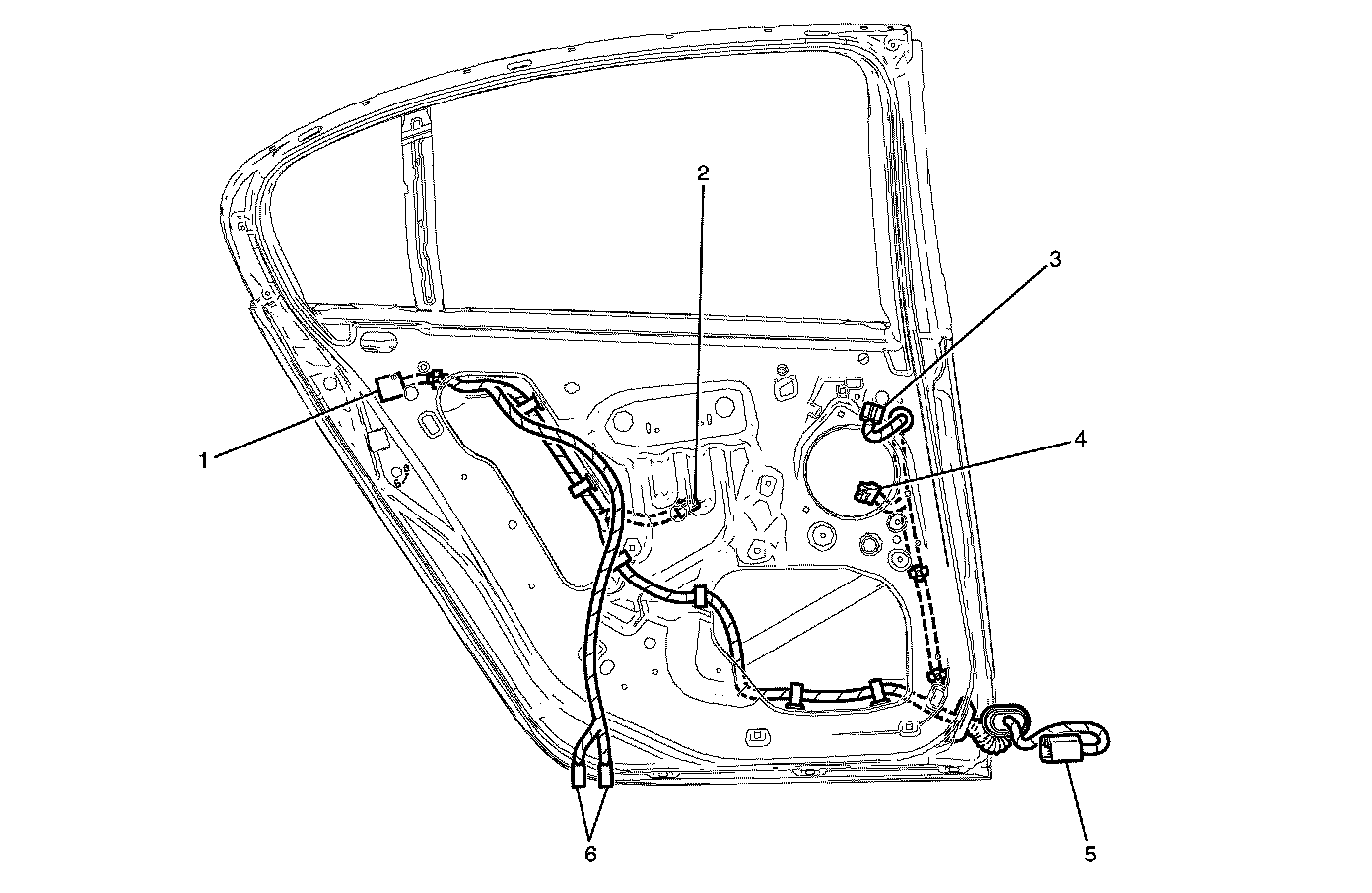

Rear Door Wiring (Short Wheel Base Left Hand Drive)




1 - Door Latch Assembly Connector - Y31
2 - Window Motor Connector - M14
3 - Rear Window Switch Connector - S221
4 - Speaker - Door Connector 1 - B117
5 - Body Harness to Right Hand Rear Door Harness Connector - X302
6 - Courtesy Lamp - Door Connector - E99
