Inflatable Restraint Steering Wheel Module




Component Connector End Views

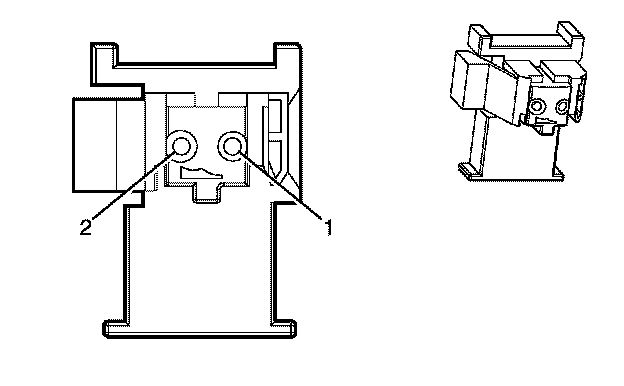

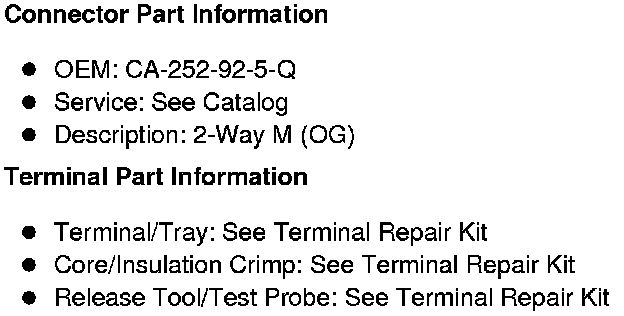

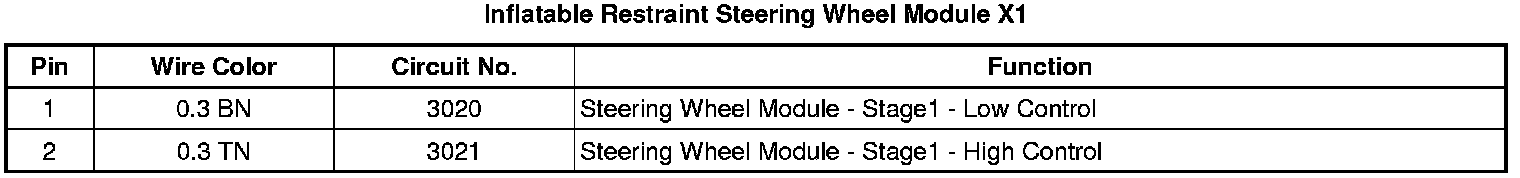

Inflatable Restraint Steering Wheel Module X1














Inflatable Restraint Steering Wheel Module X2
