Shift Solenoid, A/T




Component Connector End Views

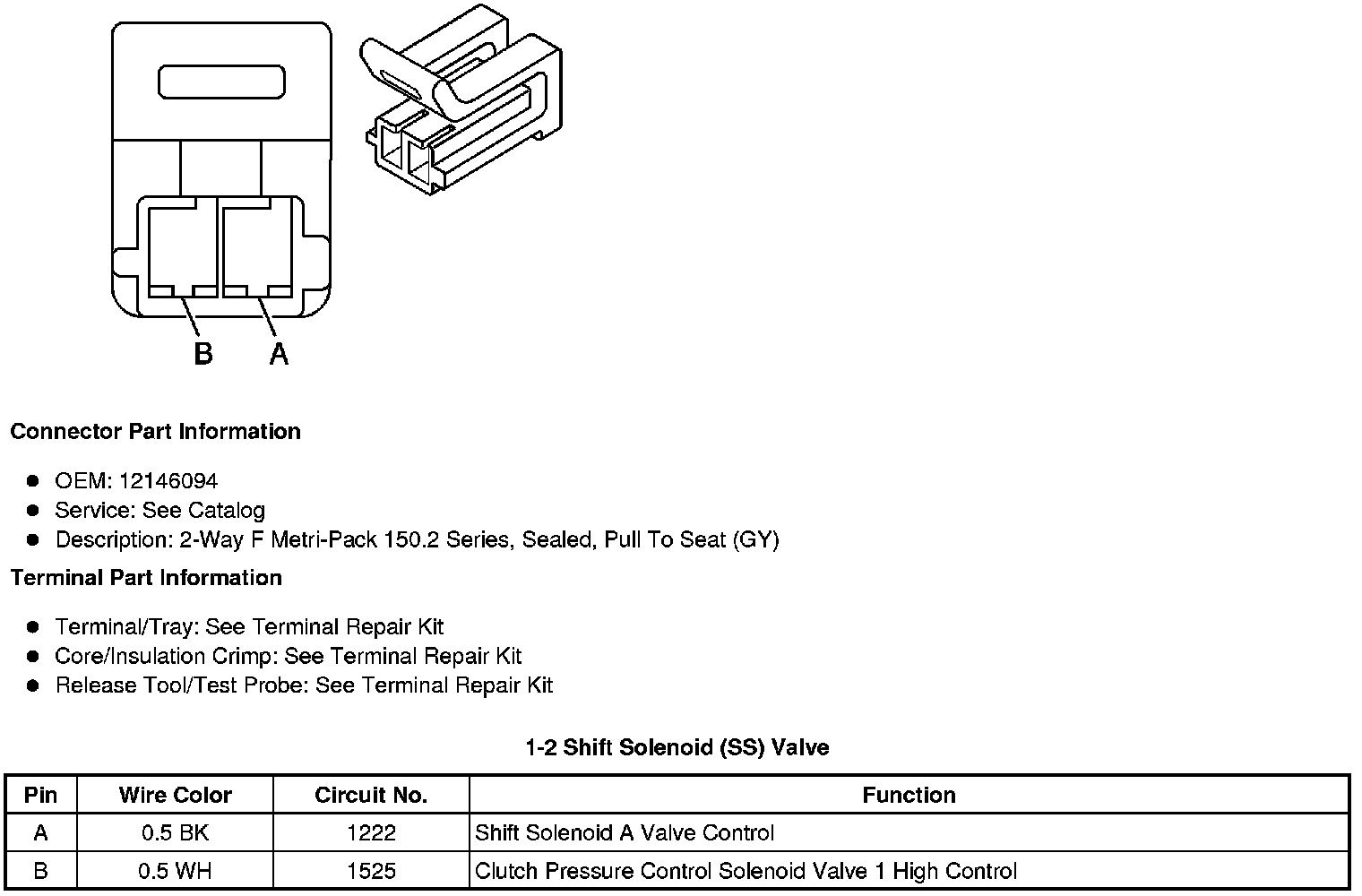

1-2 Shift Solenoid (SS) Valve





3-4 Shift Solenoid (SS) Valve





4-5 Shift Solenoid (SS) Valve
