Speaker
>>

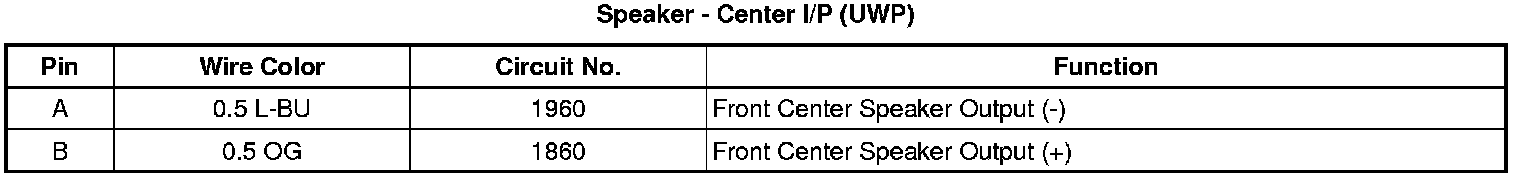

Speaker - Center I/P (UWP)
Speaker - Center I/P (UWP)

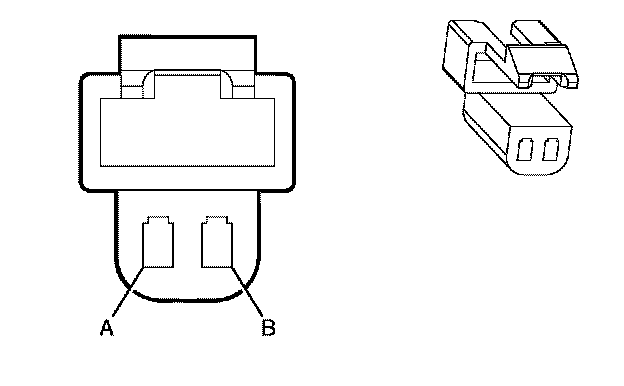

Component Connector End Views
Speaker - Center I/P (UWP)
