Left Kick Panel (Left Hand Drive)

Harness Routing Views

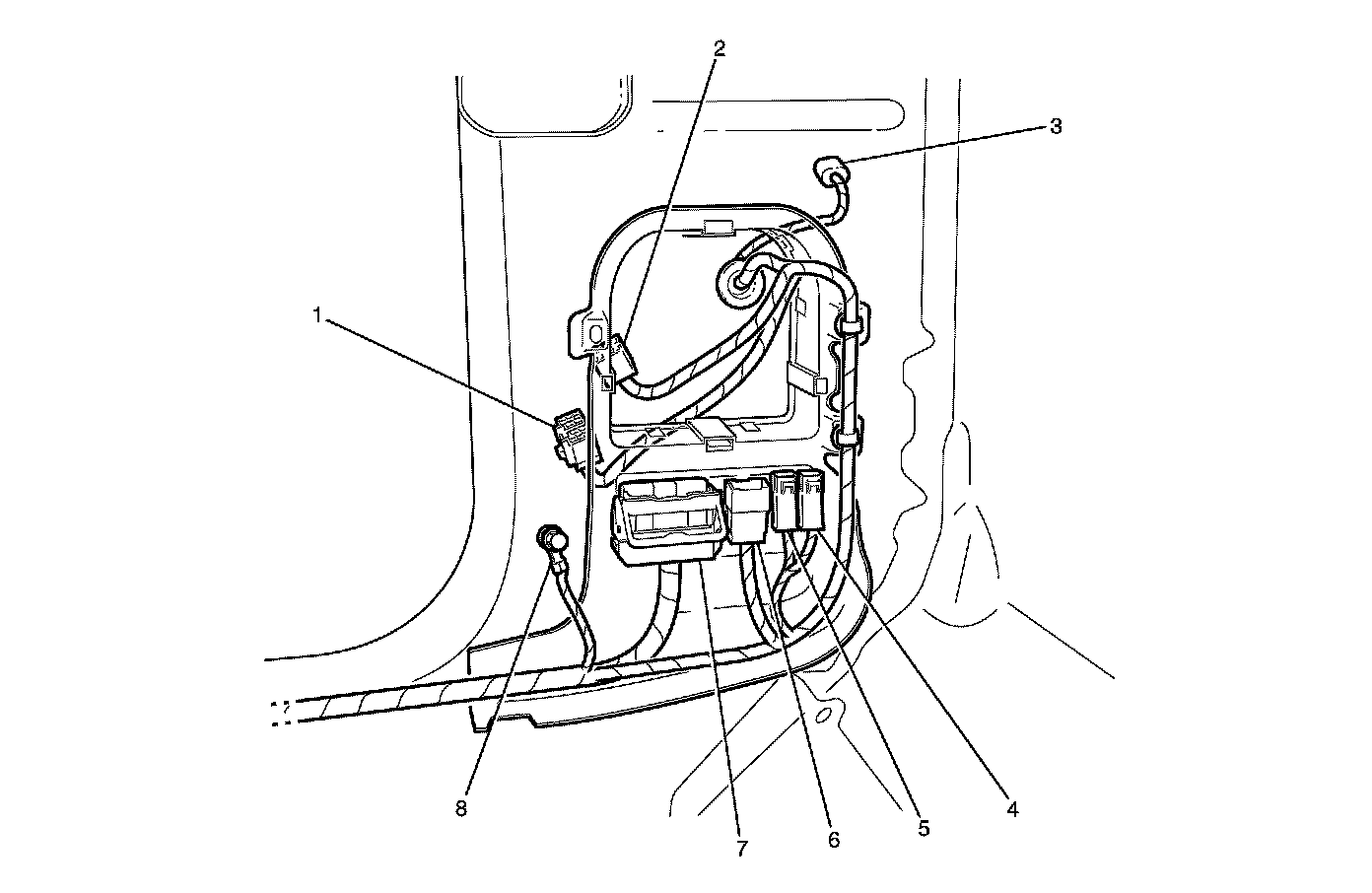

Body Wiring - Left Kick Panel (Left Hand Drive)




1 - Body Harness to Left Hand Front Door Harness Connector 1 - X304
2 - Body Harness to Left Hand Front Door Harness Connector 2 - X307
3 - Repeater Lamp - Left Connector - E75
4 - Antenna Diversity Harness to Diversity Coaxial Harness Connector - X367
5 - Antenna Quad Harness to Coaxial Harness Connector - X328
6 - Left Hand Instrument Panel Connector 2 - X220
7 - Left Hand Instrument Panel Connector 1 - X202
8 - Left Hand A Pillar Ground - G305
