Right Side (Left Hand Drive)

Harness Routing Views

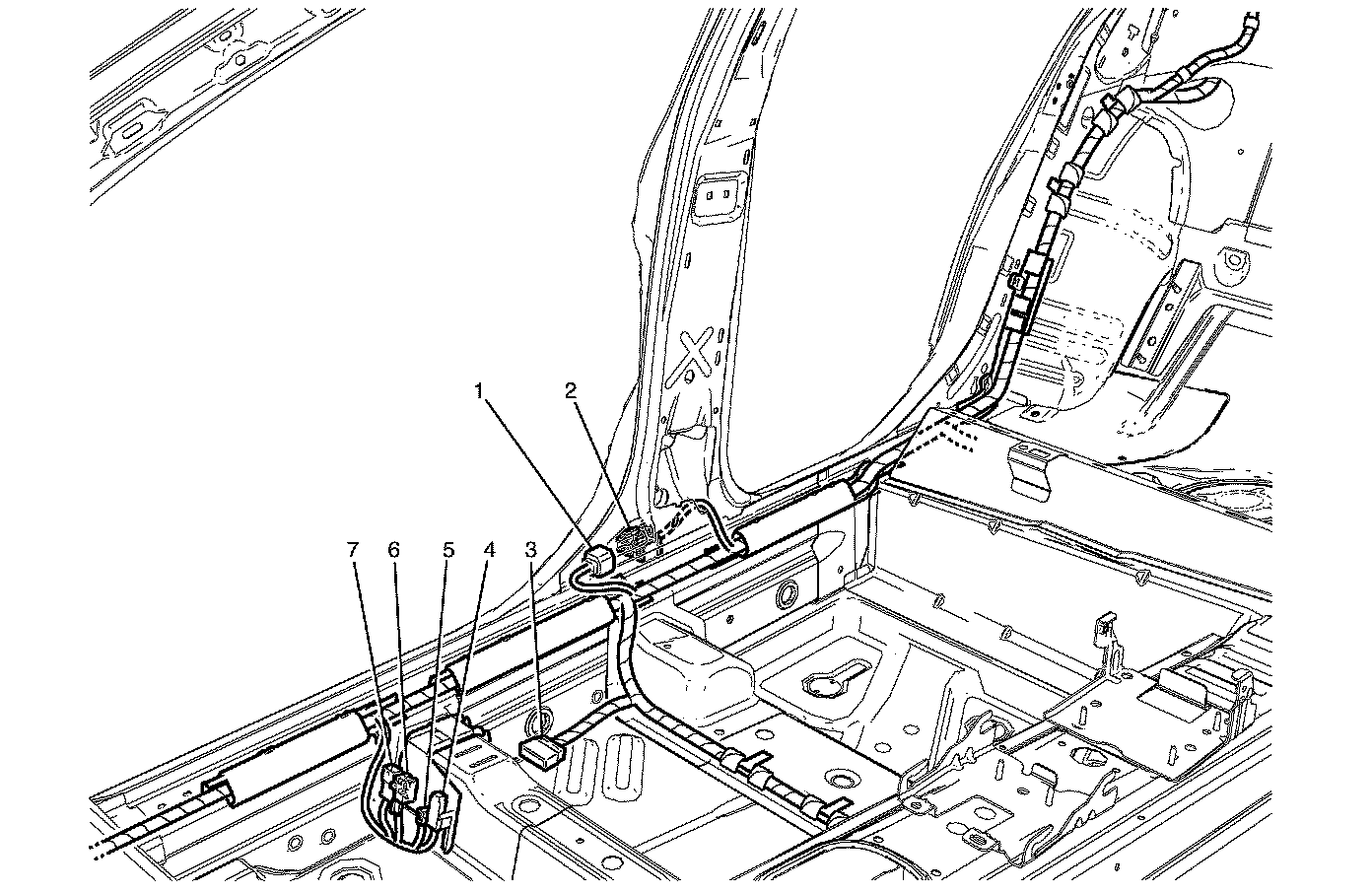

Body Wiring - Right Side (Left Hand Drive)




1 - Inflatable Restraint Side Impact Sensor (SIS) (RF) Connector - B63
2 - Body Harness to Right Hand Rear Door Harness Connector - X302
3 - Body Harness to Left Front Seat Harness - X330 (Long Wheel Base)
4 - Body Harness to Pretensioner Passenger Harness Connector - X355
5 - Body Harness to Passenger Seat Harness Connector - X314
6 - Body Harness to Passenger Seat Harness Connector - X310
7 - Body Harness to Passenger Seat Harness Connector - X322
