Crankshaft Balancer Removal (6.2L LS3)

Special Tools
* J 41816-A - Crankshaft Balancer Remover
* J 41816-2 - Crankshaft End Protector
* J 42386-A - Flywheel Holding Tool

For equivalent regional tools, refer to Special Tools (Special Tools).





Caution: Refer to Fastener Caution (Fastener Caution).

Note: Do not use the crankshaft balancer bolt again. Install a NEW crankshaft balancer bolt during final assembly.

1. Install the J 42386-A - holding tool and bolts.
Use 1 M10 - 1.5 x 120 mm and 1 M10 - 1.5 x 45 mm bolt for proper tool operation. Tighten the J 42386-A - holding tool bolts to 50 Nm (37 lb ft).




2. Remove the crankshaft balancer bolt (139).
Do not discard the crankshaft balancer bolt. The balancer bolt will be used during the balancer installation procedure.

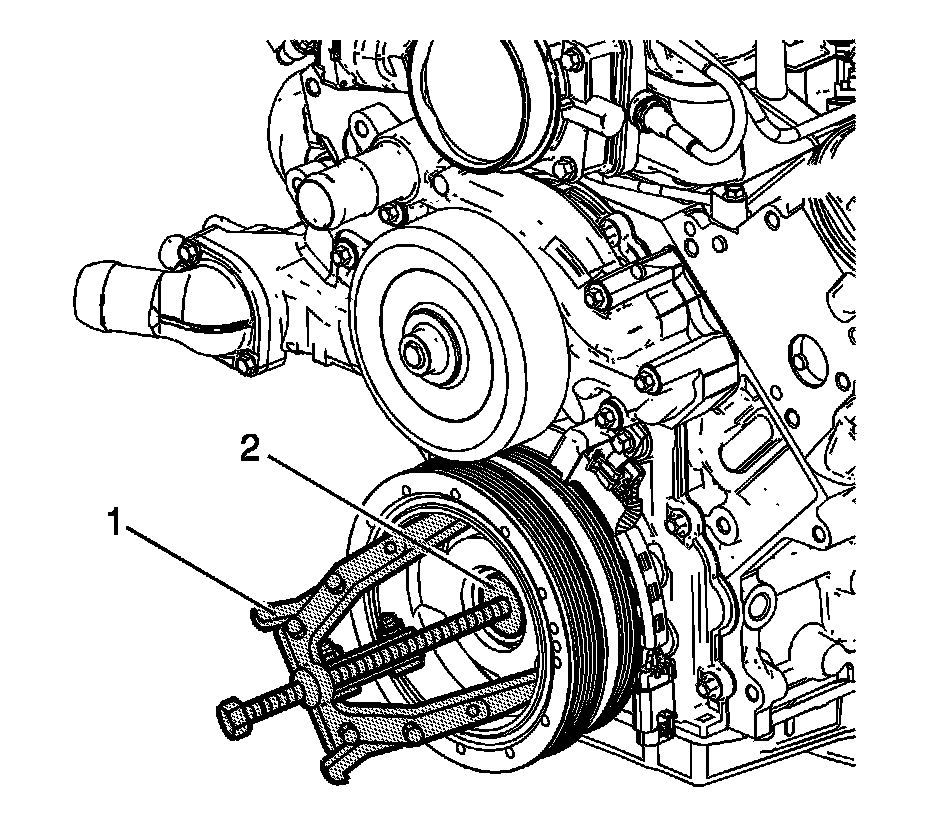

3. Use the J 41816-A - remover (1) and the J 41816-2 - protector (2) in order to remove the crankshaft balancer.

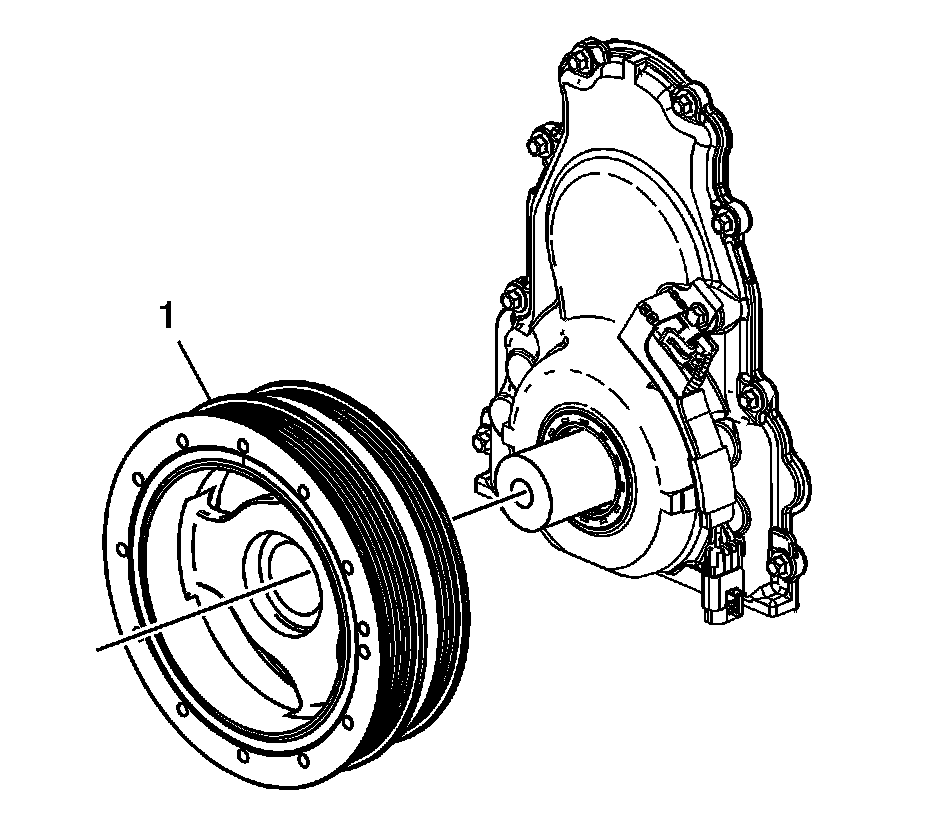

4. Remove the crankshaft balancer (1).

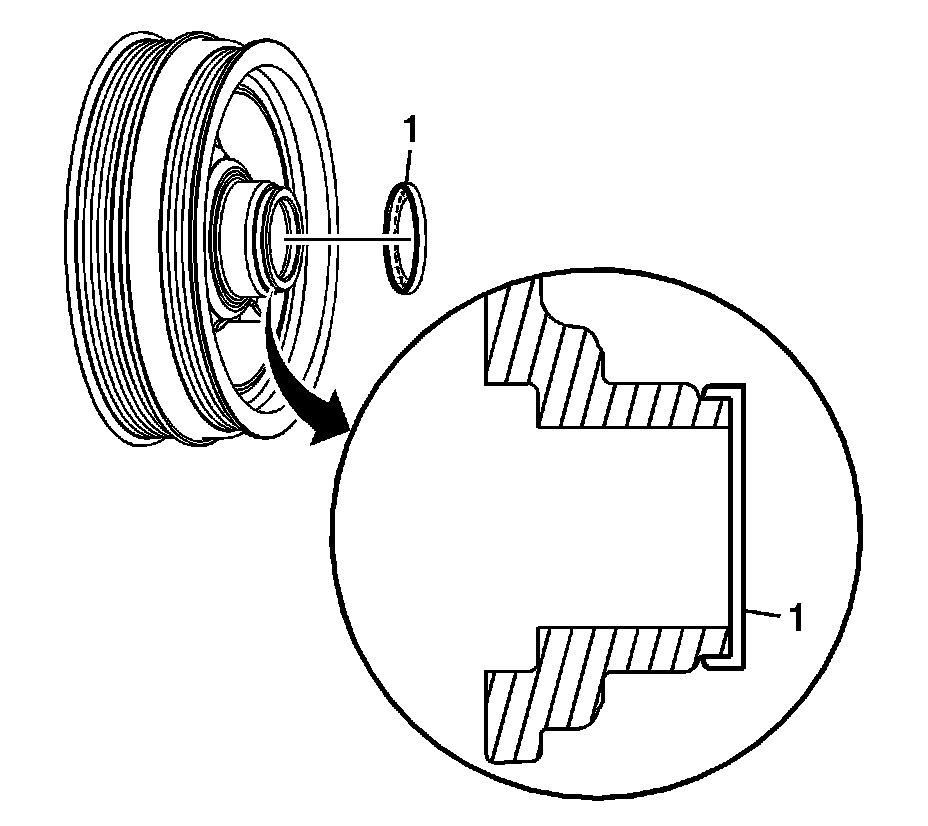

5. Remove the crankshaft balancer washer (1) from the LS3 balancer as required.
