Instrument Panel Side Trim Panel Replacement

Instrument Panel Side Trim Panel Replacement

Removal Procedure

1. Remove the instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement (Service and Repair).

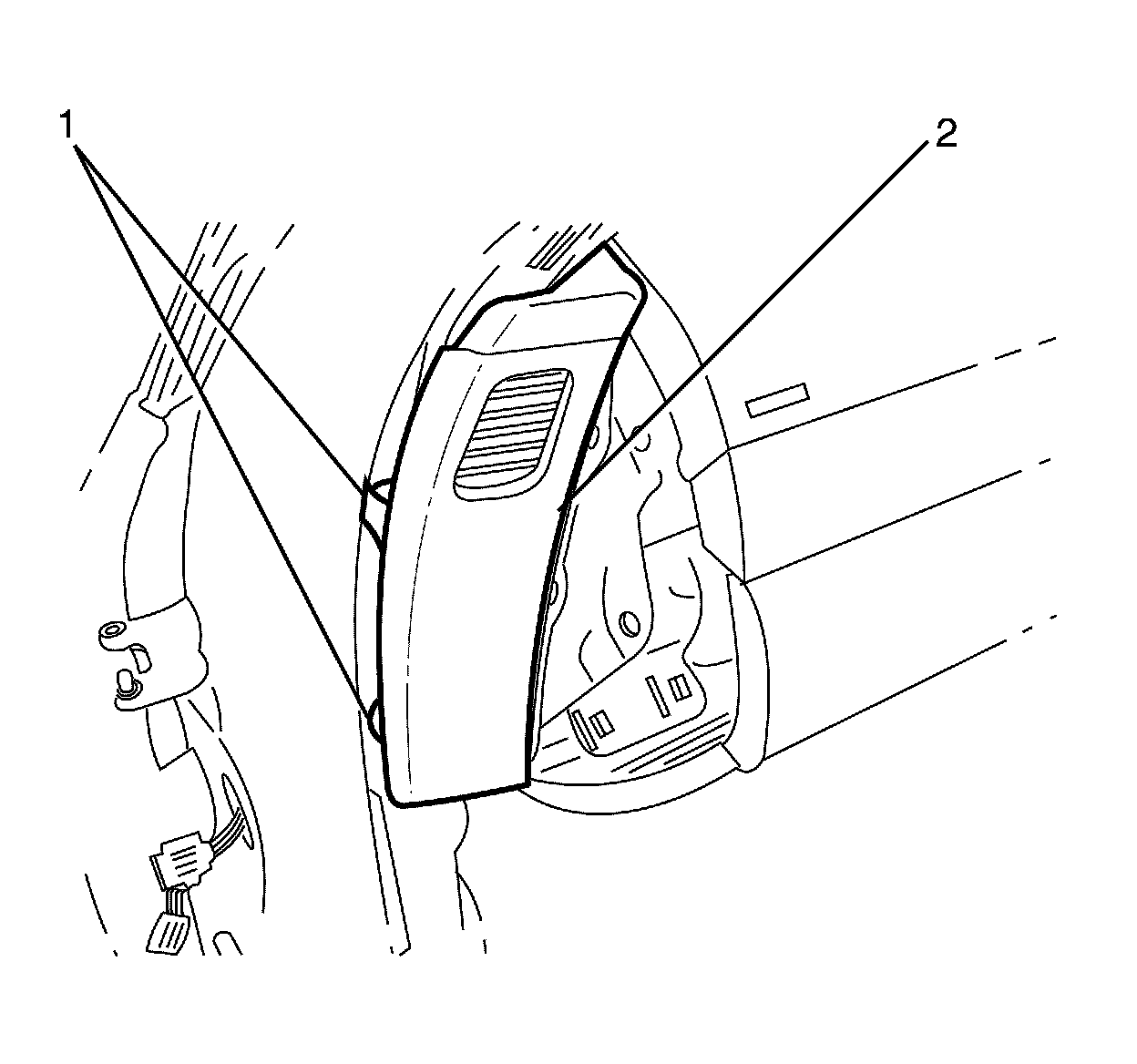

2. Grasp the front lower area of the centre A pillar ventilation trim panel (2) and carefully pull to disengage the retaining clips (1). The left side is shown, the right side is similar.
3. Remove the centre A pillar ventilation trim panel (2) rotating upwards to disengage remaining clips.

Installation Procedure




1. Align the center A pillar ventilation trim panel (2) to the A pillar and correctly locate the upper clips (1).
2. Install the center A pillar ventilation trim panel (2) to the A pillar by engaging the retaining clips (1).
3. Ensure all clips are installed correctly.
4. Install the instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement (Service and Repair).
