Instrument Panel Storage Compartment Replacement

Instrument Panel Storage Compartment Replacement

Removal Procedure

1. Remove the trim plate. Refer to Console Trim Plate Replacement (Service and Repair).

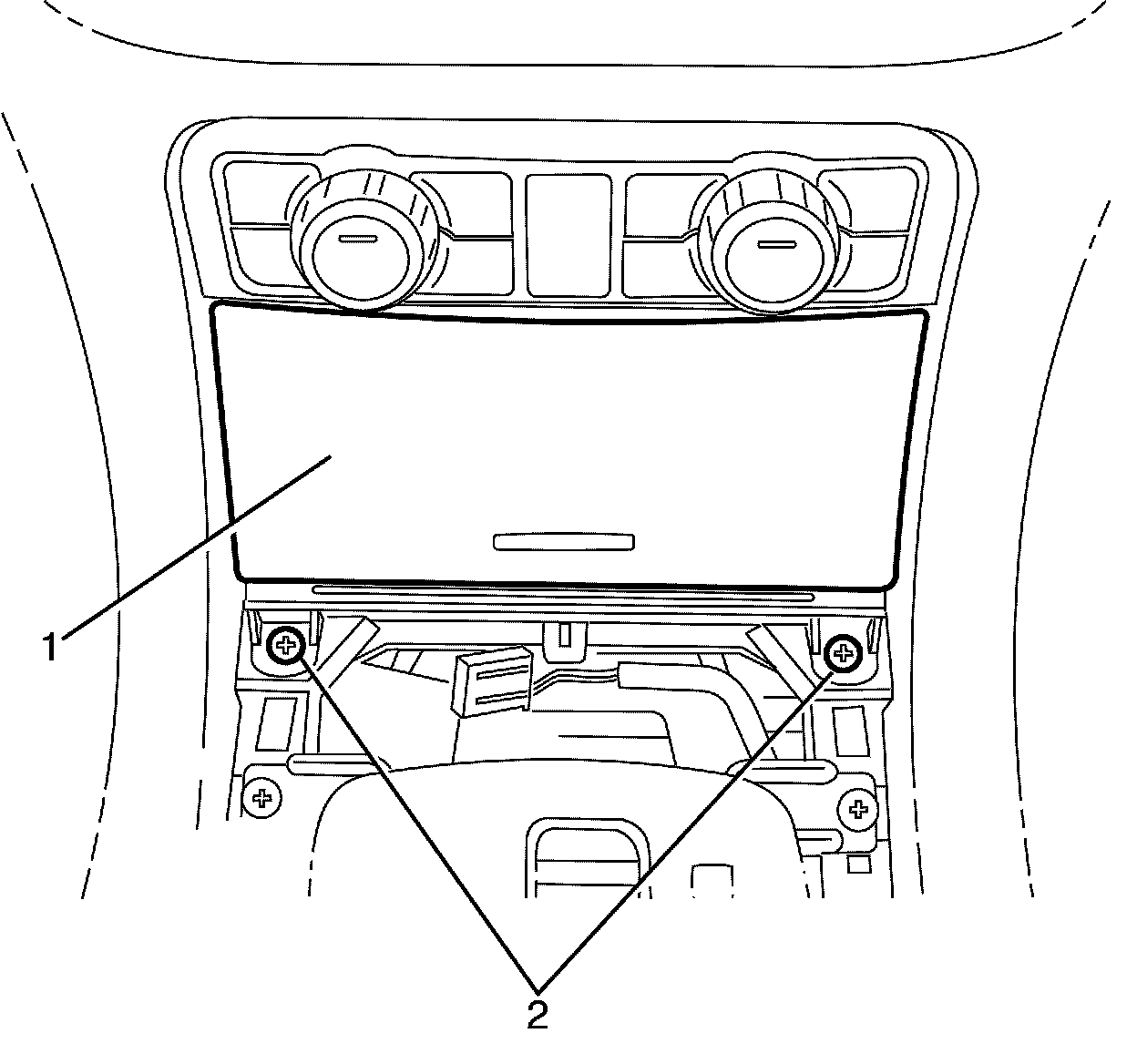

2. Remove the storage compartment (1) to I/P tower retaining screws (2).
3. Remove the storage compartment (1) from the I/P tower.

Installation Procedure




1. Install the storage compartment (1) to the I/P tower.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the storage compartment to I/P tower retaining screws (2) and tighten to 2 Nm (18 lb in).
3. Install the trim plate. Refer to Console Trim Plate Replacement (Service and Repair).
4. Operate the storage compartment lid for correct operation.
