Dome/Reading Lamps - Front (Without CF5)

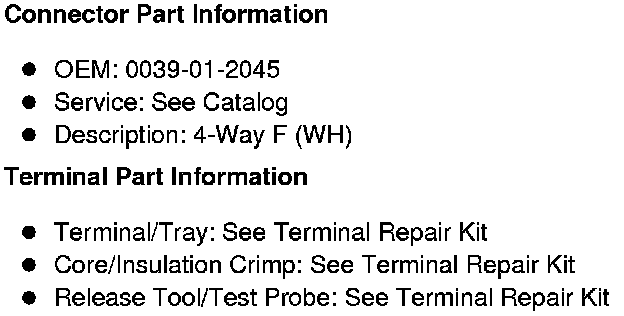

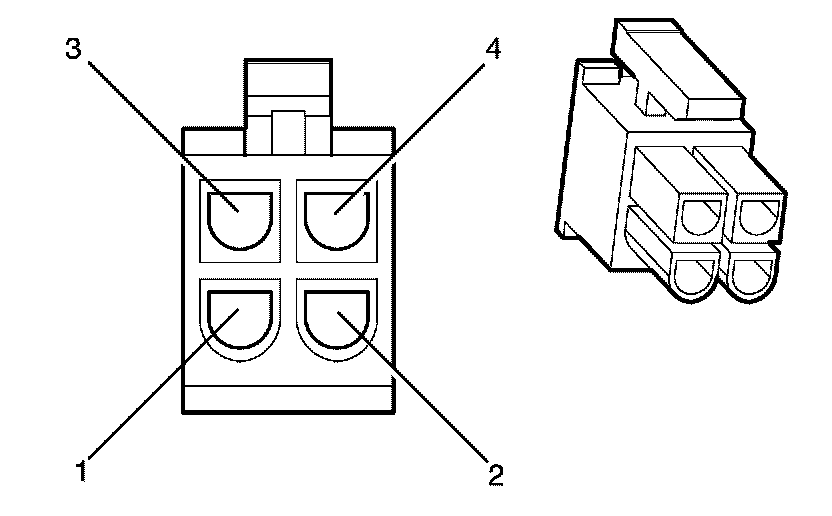

Component Connector End Views

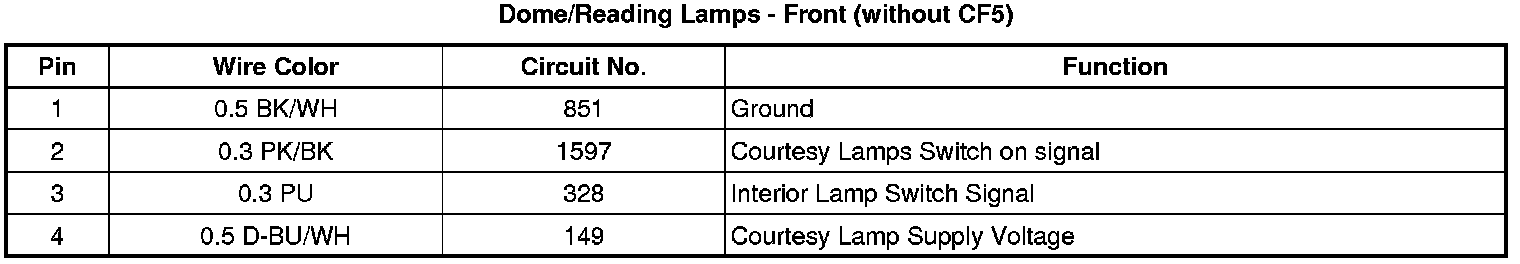

Dome/Reading Lamps - Front (without CF5)
