Fuel Pump: Locations

Harness Routing Views

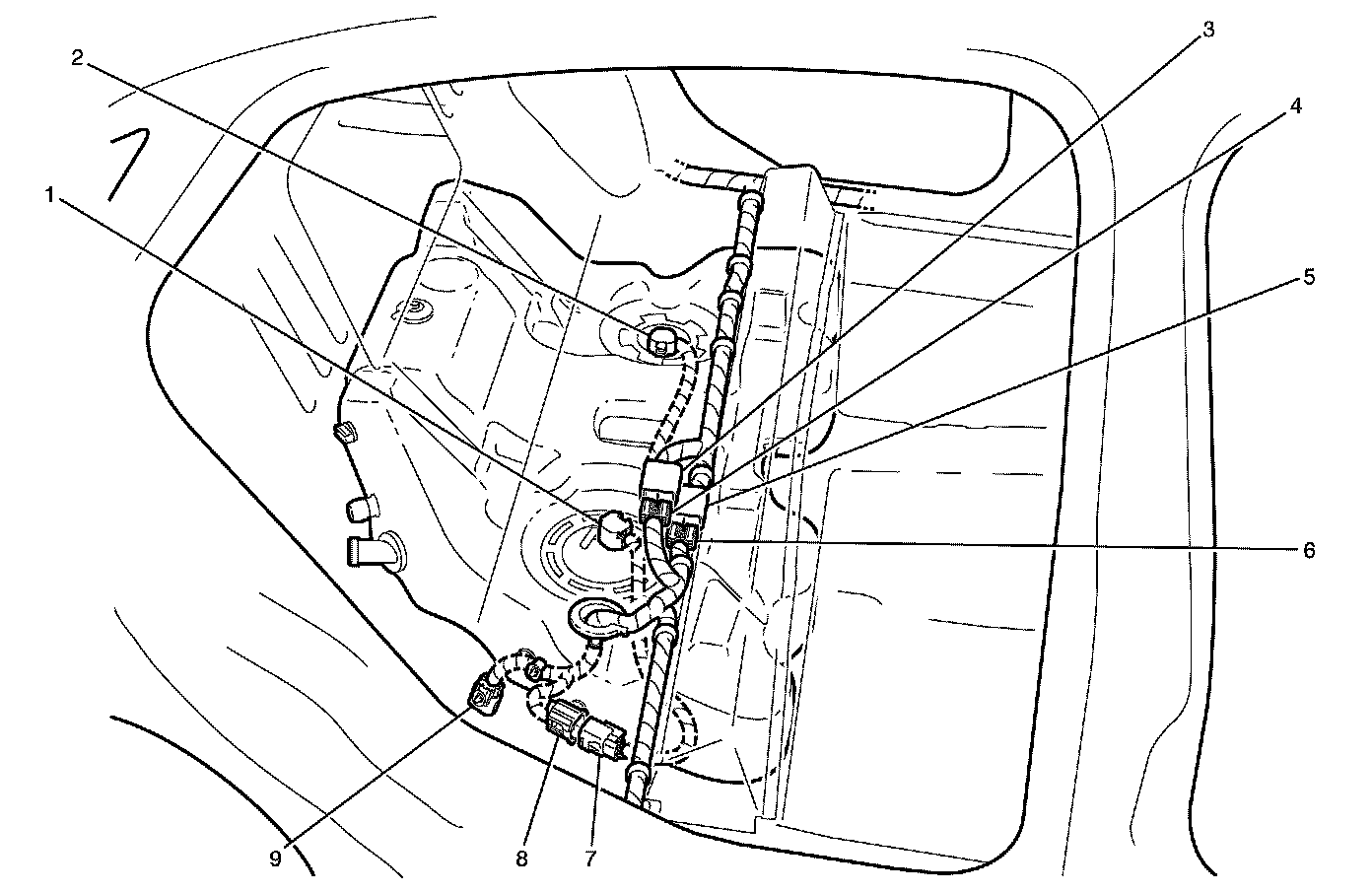

Body Wiring - Rear Seat and Fuel Tank Wiring




1 - Fuel Pump and Sender Assembly Connector - M8
2 - Fuel Level Sensor (Secondary) Connector - B53
3 - Left hand Body Wiring Harness Crossover Connector 2 - X218 (Long Wheel Base)
4 - Right hand Body Wiring Harness Crossover Connector 2 - X317 (Right Hand Drive)
5 - Left hand Body Wiring Harness Crossover Connector 1 - X218 (Long Wheel Base)
6 - Right hand Body Wiring Harness Crossover Connector 1 - X317 (Right Hand Drive)
7 - Fuel Tank Harness to Body Wiring Harness Connector - X305
8 - Body Wiring Harness to Fuel Tank Harness Connector - X305
9 - Body to Rear Axle Harness Connector - X360
