Home >> Pontiac >> 2009 >> Vibe FWD L4-1.8L >> Repair and Diagnosis >> Diagrams >> Components >> A - Z Index

A - Z Index

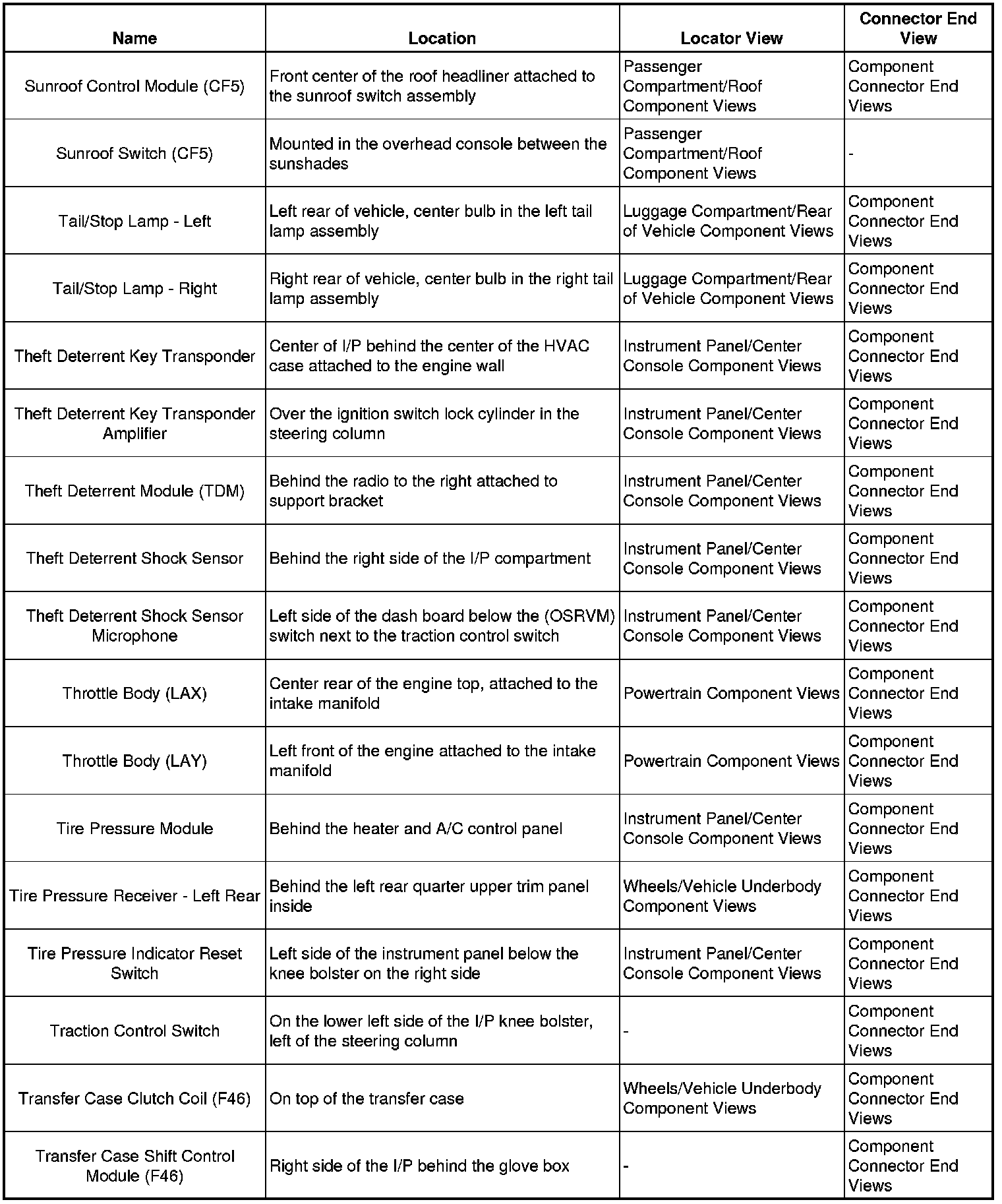

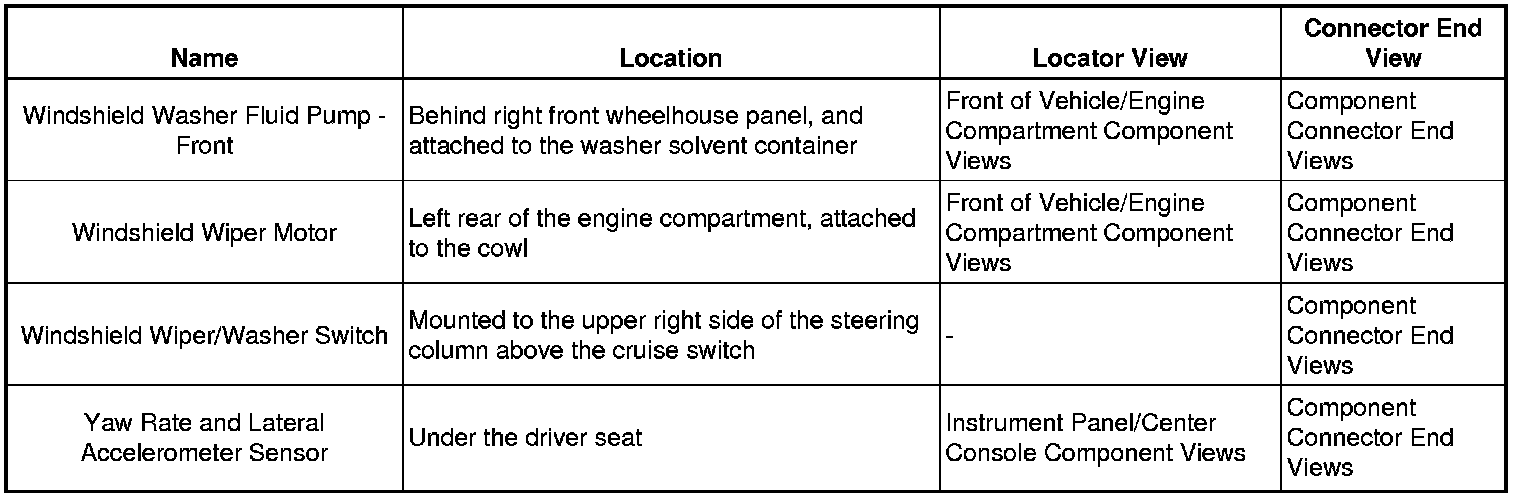

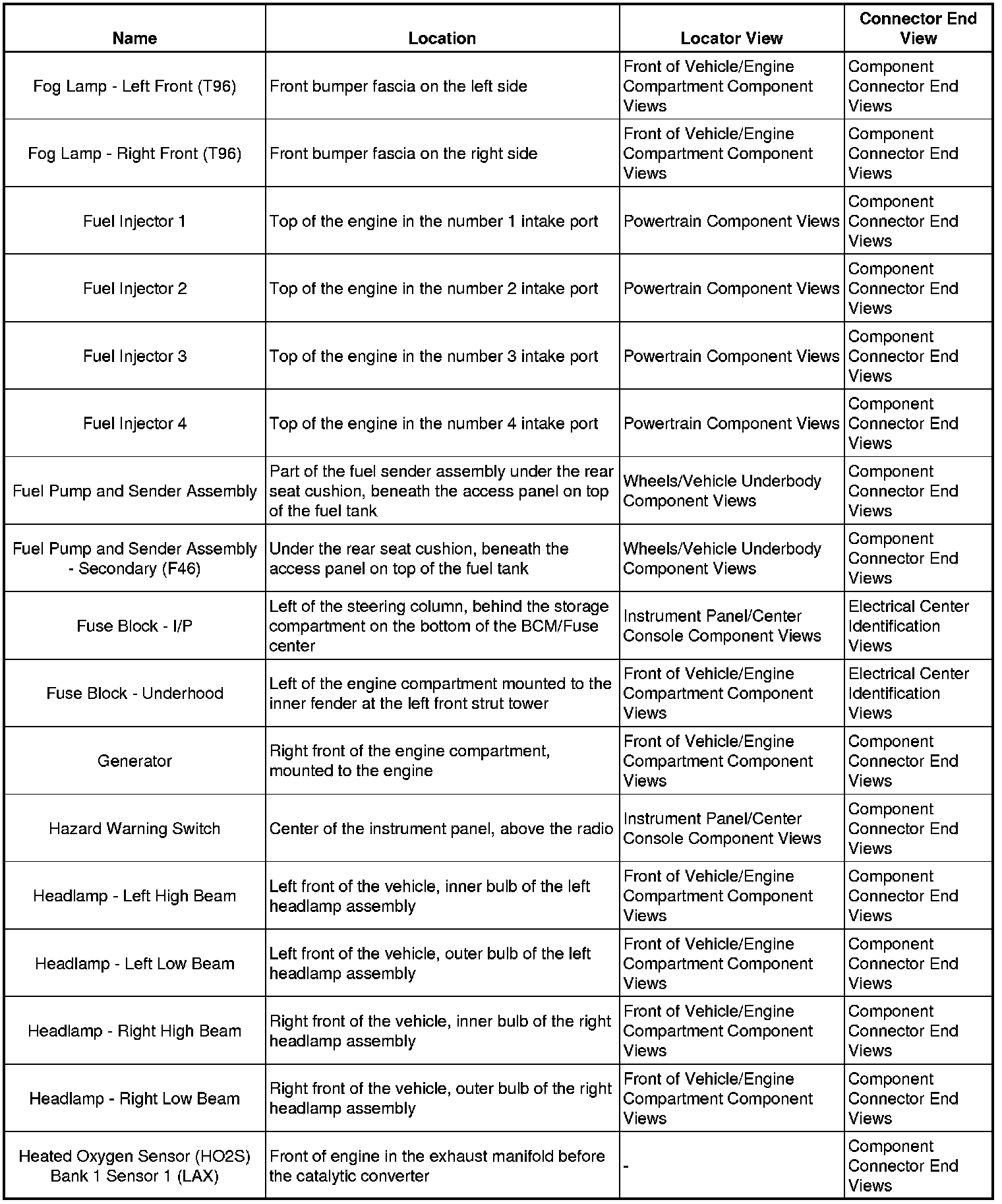

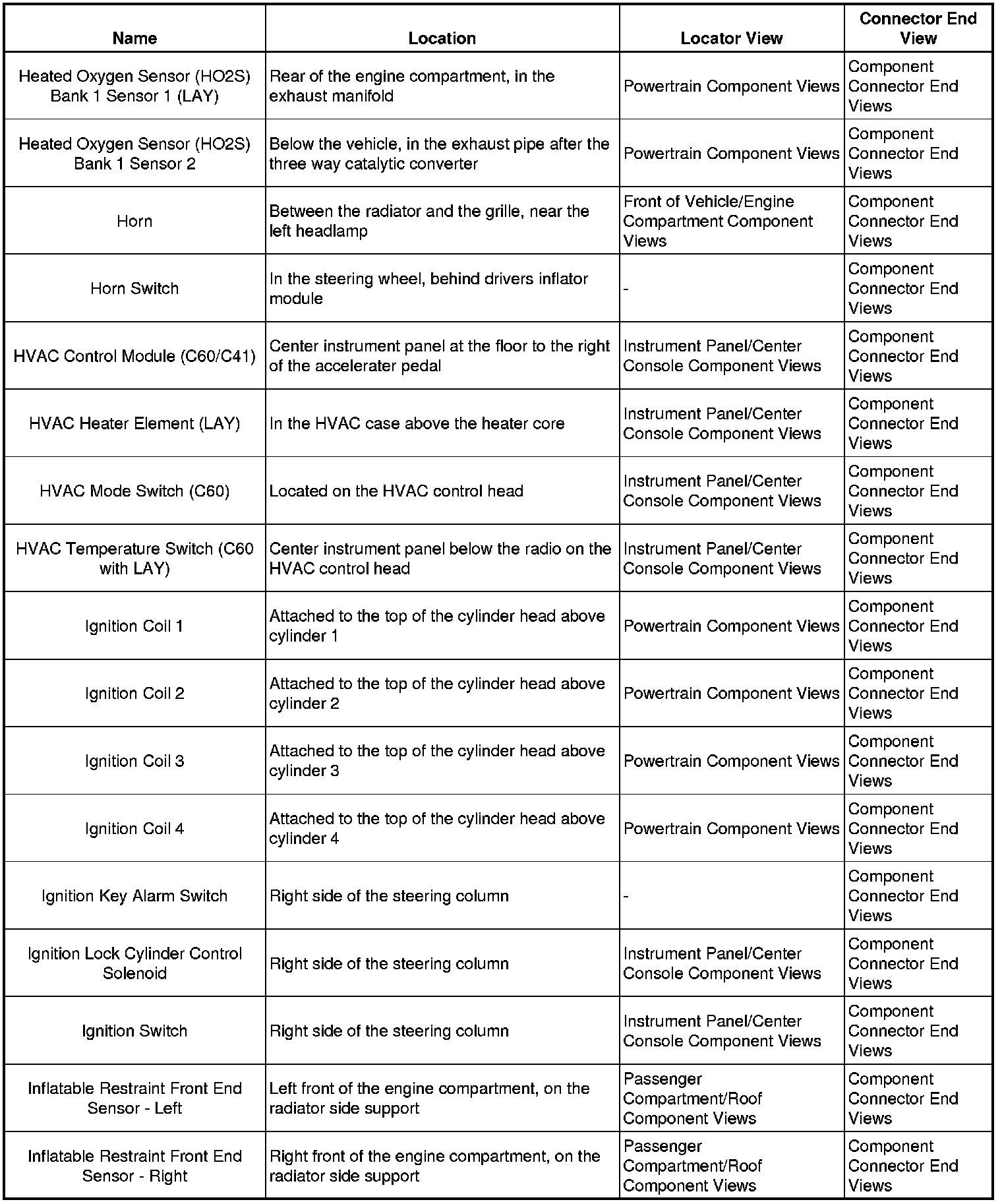

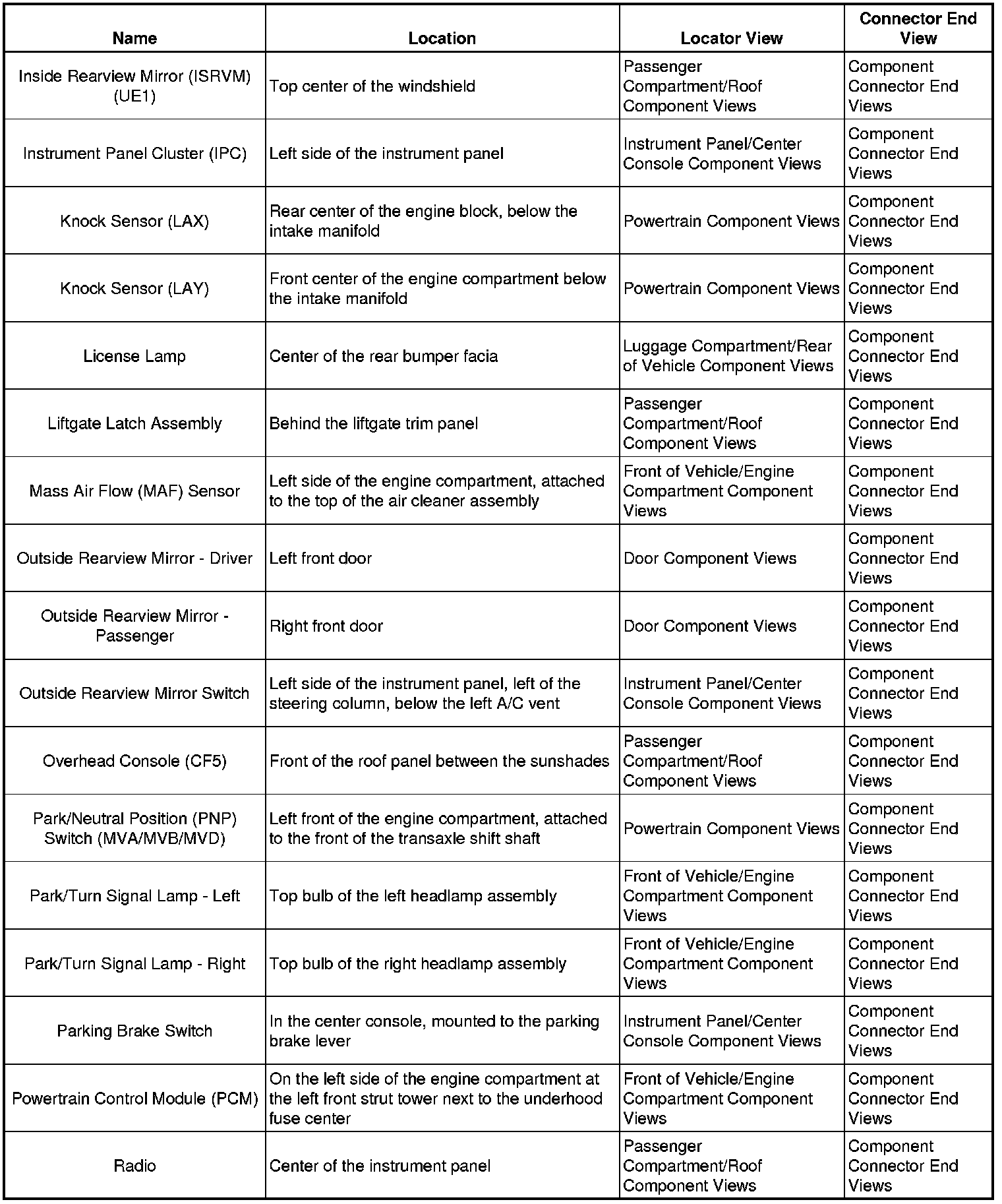

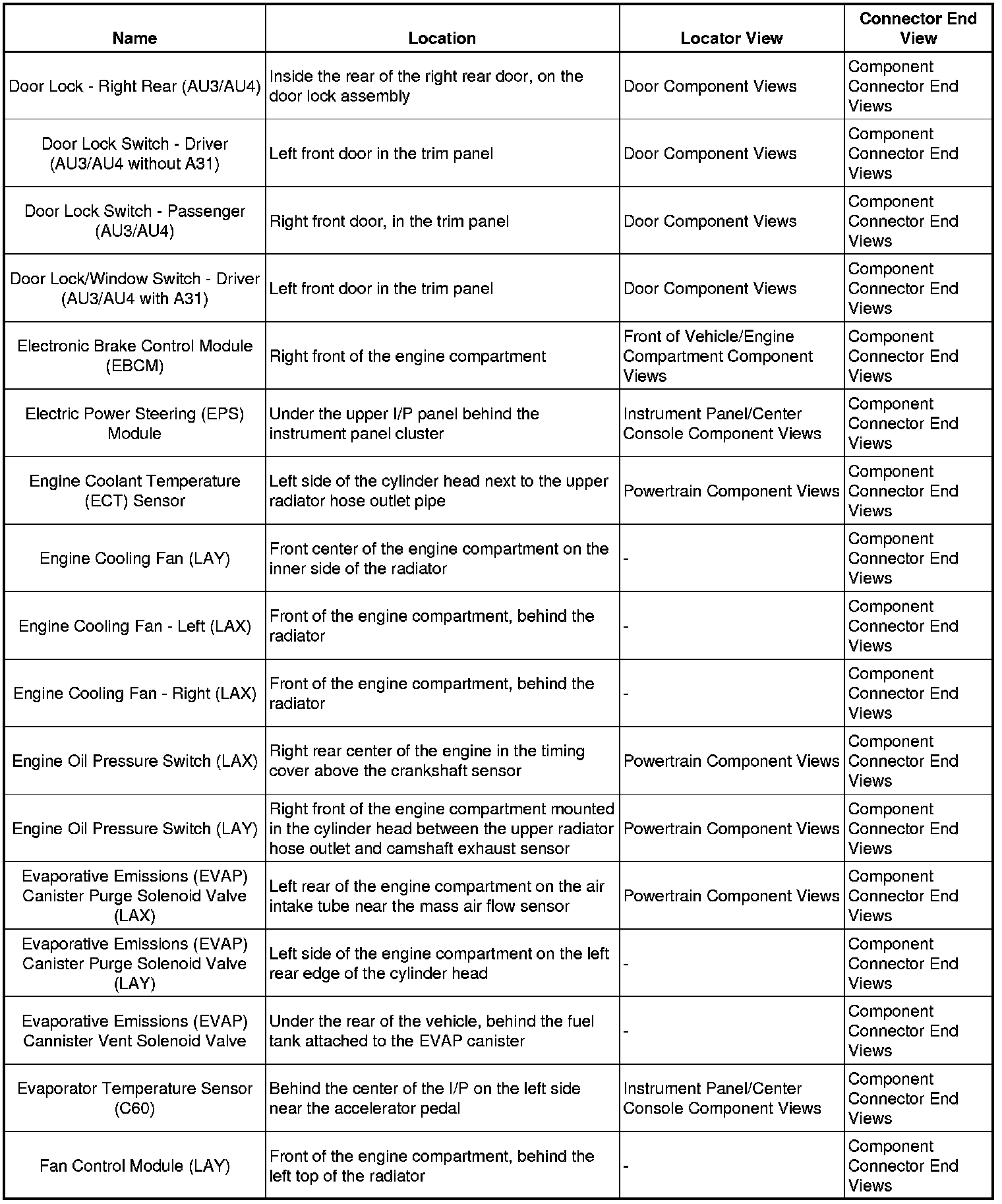

Master Electrical Component List

A/C - Ba:





Ba - Ci:





Cl - Do:





Do - Fa:





Fo - He:





He - In:





In - In:





In - Ra:





Ra - Sh:





Sh - St:





Su - Tr:





Tu - Wi:





Wi - Ya:
