Camshaft Position Sensor




Component Connector End Views

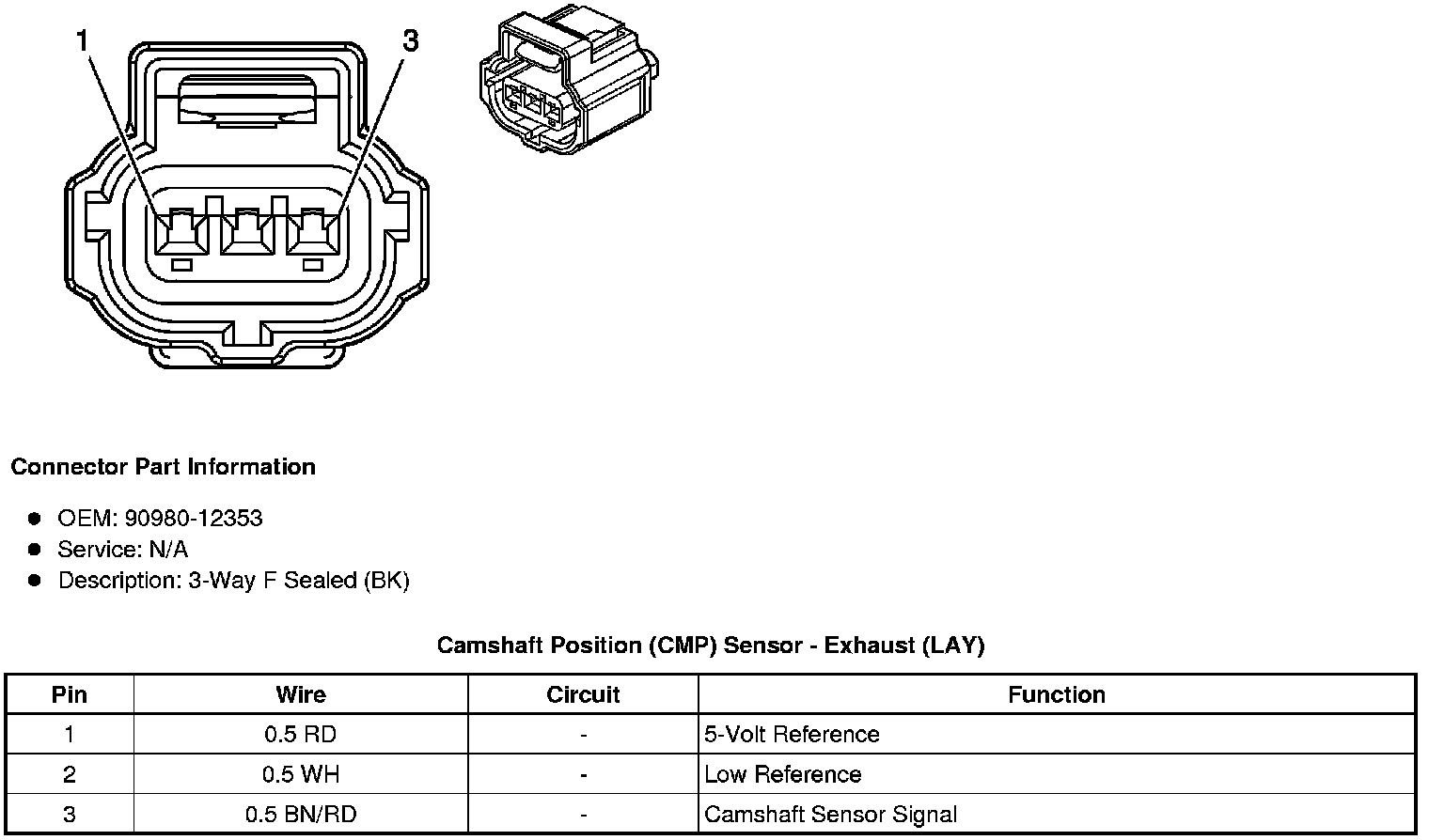

Camshaft Position (CMP) Sensor - Exhaust (LAY)






Camshaft Position (CMP) Sensor - Intake (LAY)
